Installation Time
(approx) 30 Minutes
Difficulty Level:
Simple installation for anyone.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details

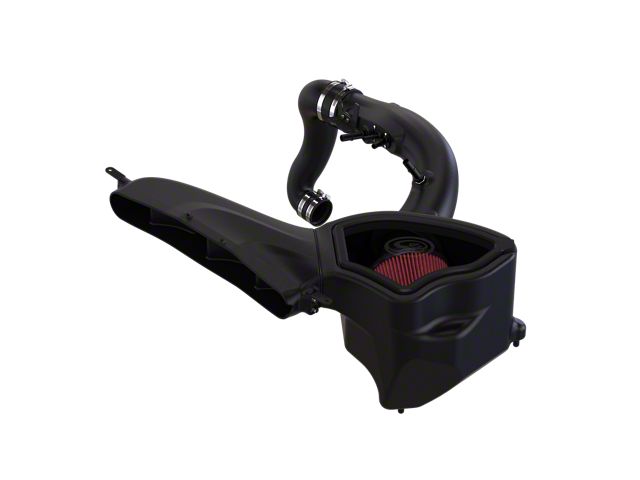

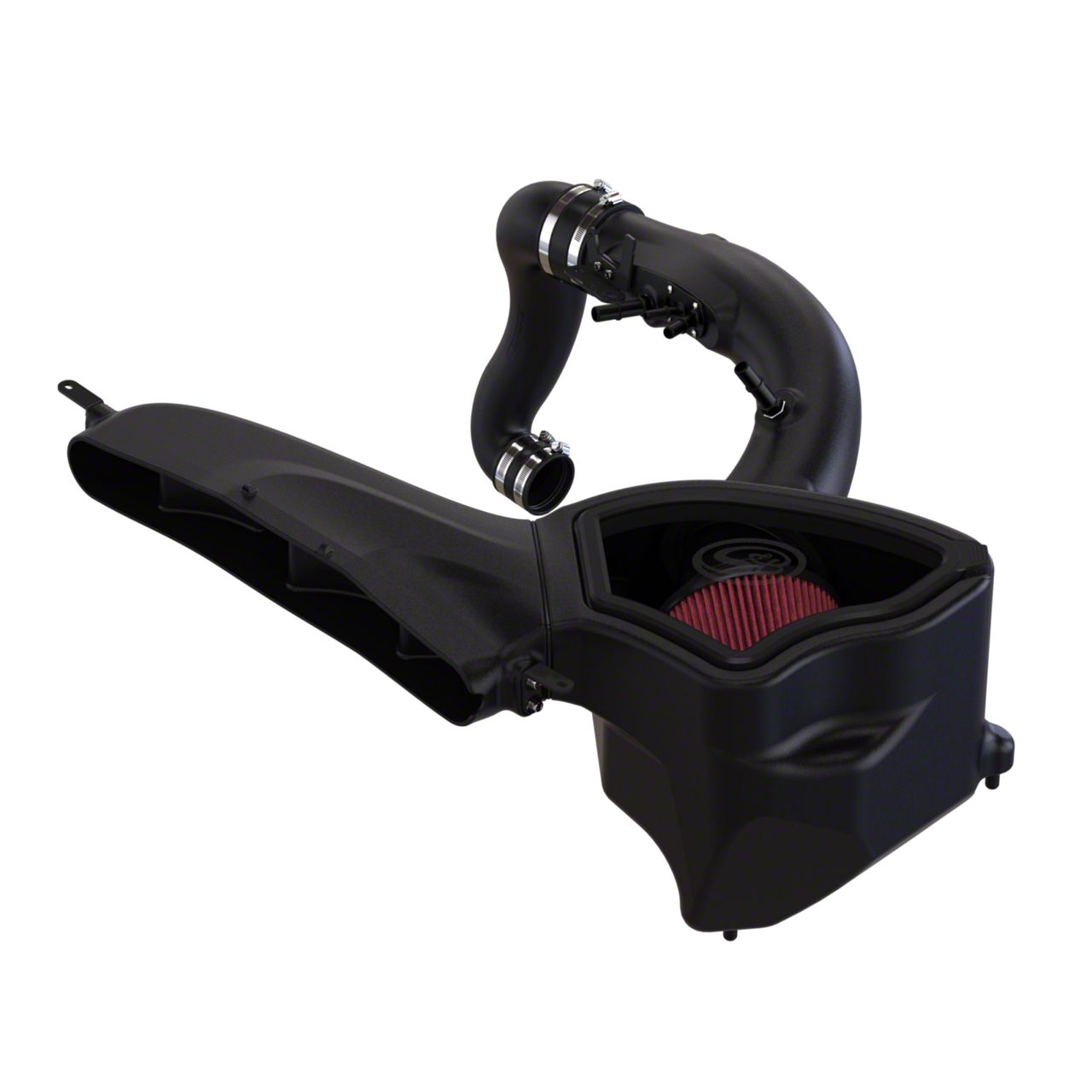

S&B Cold Air Intake with Oiled Cleanable Cotton Filter (21-26 2.0L EcoBoost Bronco Sport)Find parts that fit my vehicle
Item BS7018
Our Price
$379.00 set
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- Please read the entire product guide before proceeding to ensure a complete and safe installation.
- Verify that all parts listed in the kit are present before beginning the installation.
- If any components are missing, please contact Customer Support at (909) 947-0015 for assistance.
- Do not attempt to work on the vehicle while the engine is hot to avoid injury.
- Ensure the engine is turned off and the vehicle is in park with the parking brake engaged before starting installation.
- This intake kit is not compatible with vehicles that have aftermarket body lifts, lowering kits, custom hoods, or throttle body spacers/upgrades installed.
- Required tools for installation include: 11mm deep socket, 13mm deep socket, flathead screwdriver or 7mm & 8mm nut drivers, panel popper, 5mm hex wrench, and a 5/8" quick disconnect tool.
- Disconnect the negative battery cable and wait at least two hours before installation to prevent triggering a check engine light.
- Remove the two push-rivets to loosen and remove the airbox shroud.
- Loosen the airbox hose clamp and intake air temperature (IAT) sensor, then remove the clips securing the IAT wiring harness to the airbox and remove the IAT sensor carefully.
- After loosening the hose clamp, remove the airbox from the vehicle.
- If the isolator comes out with the airbox, press it back into place securely.
- Remove the two nuts securing the hose assembly to the bracket.
- Disconnect electrical sensors and remove retainer clips after nuts are removed.
- Remove the two quick-connect fittings by pulling the clip outward to open and detach them safely.
- Loosen the hose clamp located behind the assembly once the quick-connect fittings are removed.
- Disconnect the two factory quick-connect hoses by pulling the hoses out from the base carefully.
- Use pliers to grip the hose clamp attached to the factory intake tube and pull back to release the hose.
- Use a quick-connect tool to disconnect and remove the remaining quick-connect hose at the turbo end of the intake tube.
- Remove the bracket and two nuts securing the intake tube.
- Firmly pull to remove the intake tube once all connections are detached.
- Loosen the hose clamp on the turbo outlet to gain better access for installation.
- Install the new tube seal onto the airbox to ensure an air-tight fit.
- Install the new grommet onto the scoop for a secure fit.
- Install two quick-connect fittings on the intake tube with partial thread engagement, or use a 3/8" NPT plug if the fittings are not applicable for your vehicle.
- Install the venturi and gasket seal using the provided hardware with a threadlocker to prevent leaks and ensure proper sealing.
- Attach the two brackets onto the intake tube using the longer bolts provided in the kit.
- Transfer the IAT sensor to the new intake tube by aligning the tabs, installing the grommet, and securing the sensor clockwise until locked.
- Re-use OEM hardware to attach the new bracket, including the small black rubber grommet, pressing the fitting into it firmly.
- Install brackets on both sides of the scoop to prepare for mounting.
- Remove the protective film from the clear lid and install the lid seal as part of the assembly process.
- Place new clamps and couplers on the intake tube, tightening the rear clamps first for ease of adjustment.
- Orient the turbo clamp to face the cab and tighten it enough to allow final installation adjustments.
- Install the intake tube starting from the turbo end, leaving clamps loose for final positioning.
- Position the airbox and guide the intake tube under hoses and wiring to connect properly to the airbox.
- Attach the scoop to the airbox, align the brackets, and reinstall the push rivets.
- Slide the coupler from the turbo tube over the main intake tube, ensuring proper bracket alignment before tightening.
- Install the studs and slide the harness bracket through them, tightening securely at both ends.
- Transfer the small rubber gasket from the OEM bracket to the new bracket as a cushion and seal.
- Reinstall the OEM wiring harness over the gasket on the new bracket, reconnect wiring harnesses and quick-connect fittings, securing with original clips.
- Use the IAT harness extension to connect the IAT sensor ensuring proper fit and secure connection.
- Reinstall the hose and clamp located behind the intake tube using channel lock pliers due to limited clearance.
- Install the air filter onto the intake tube and tighten it securely to prevent leaks.
- Verify all fittings, clamps, and wiring harness connections are secure and properly tightened.
- Install the snap-in clear lid to complete the intake system assembly.
- Reconnect the battery negative terminal after the minimum two-hour disconnection period.
- Inspect the entire installation for proper positioning, secure fasteners, and hose clamps.
- Keep all OEM parts in case a return to stock configuration is necessary in the future.
- If installing for a customer, affix the ID label near the intake kit and provide the installation QR code for owner reference.
- Designed to fit 2021-2026 2.0L EcoBoost Bronco Sport models without aftermarket body lifts, lowering kits, custom hoods, or throttle body spacers/upgrades to ensure proper fit and function.
| Brand | S&B |
| Tuning Requirements | No Tune Required |
| Intake Tube Material | Plastic |
| Intake Filter Type | Oiled |
Description
High-Performance Cold Air Intake. The S&B Cold Air Intake with an oiled, cleanable cotton filter enhances your vehicle’s air intake by increasing airflow and providing superior filtration. Engineered to optimize performance, this system improves horsepower and throttle response while protecting the engine from contaminants.
Durable Construction and Sleek Appearance. Made from high-quality materials, the intake tube and components are precision-engineered for a perfect fit. The system includes new seals, grommets, and hardware to ensure secure installation and airtight performance. The clear lid allows for easy monitoring of the air filter without removal.
Installation Process. Installation is straightforward with common hand tools and requires no drilling. The detailed step-by-step instructions guide you through disconnecting factory components and integrating the new intake seamlessly with existing wiring harnesses and fittings.
Fitment and Compatibility. This intake system is designed specifically for the 2021-2026 2.0L EcoBoost Bronco Sport without aftermarket body lifts, lowering kits, custom hoods, or throttle body spacers/upgrades to guarantee proper fitment and function.
Application. This product is specifically designed to fit the 21-26 2.0L EcoBoost Bronco Sport without aftermarket body lifts, lowering kits, custom hoods, or throttle body spacers/upgrades to ensure proper fitment and function.
S&B 75-5161
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Cold Air Intake System
- (1) Oiled Cotton Air Filter
- (1) Air Scoop
- (1) Airbox
- (1) Intake Tube
- (1) Hardware Kit
4.9
Customer Reviews (500+)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Bronco Sport
- Badlands 4 Door - 21, 22, 23, 24, 25, 26
- First Edition 4 Door - 21
- Heritage Limited Edition 4 Door - 23
