Find Shocks for your Cherokee

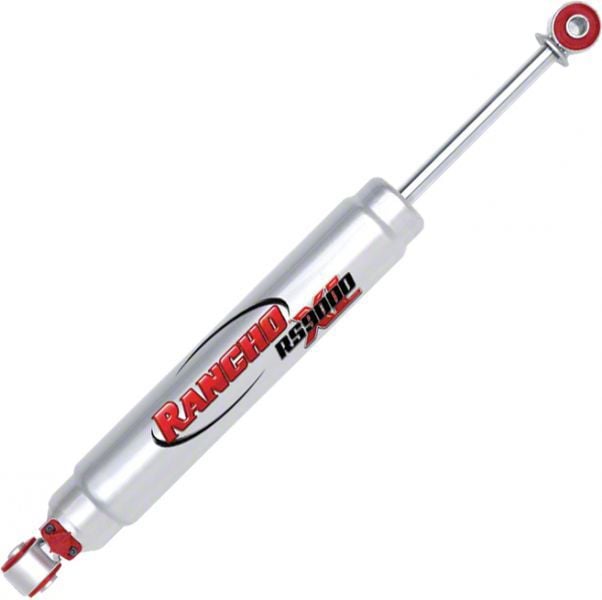

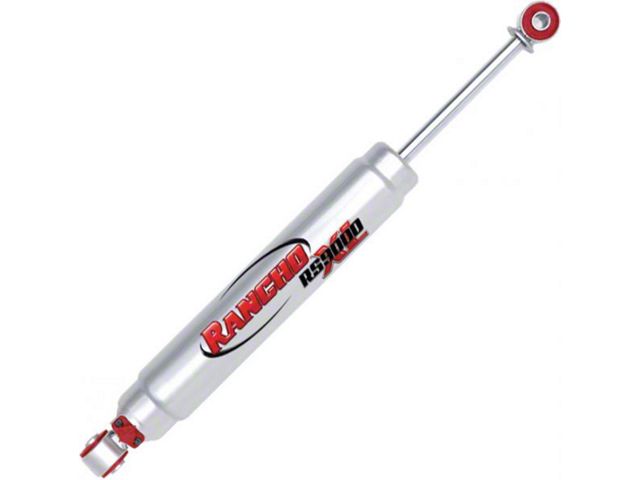

Rancho RS9000XL Front Shock for 0 to 1-Inch Lift (84-01 Jeep Cherokee XJ)Find parts that fit my vehicle
Item XJ8491
Our Price
$143.76
Military, Medical & First Responders
$7.19 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Nine Levels Of Performance With Easy-To-Adjust Knob For Customized Damping Control And Firmness _x000D_
- Designed For Stock Or Lifted Trucks, SUVs, And Jeeps That Tow, Haul, Or Go Off Road _x000D_
- First Nine-Position Manually Adjustable Shock Series In The Off-Road Market _x000D_
- Nitrogen Gas Pressurized To 120 PSI To Minimize Air-To-Oil Mixture And Reduce Damping Performance Fade And Foaming _x000D_
- Application-Specific 18mm Nitro-Carburized Piston Rod To Resist Scuffs And Corrosion _x000D_
- Double-Welded Loops At Stress Areas And 1.25-Inch Sintered Iron Piston For Enhanced Structural Integrity _x000D_
- Up To 2.75-Inch Tri-Tube Body Filled With All-Weather Fluid For Cooler Operation And Increased Vehicle Control _x000D_
- Withstands Internal Temperatures From -40 To 248°F _x000D_
- Polyurethane Rebound Bumper And Bushings With Graphite-Filled Fluon-Banded Piston For Smoother Ride And Responsiveness _x000D_
- Low-Friction, Self-Lubricating Seal Retains Gas And Oil For Quicker Rebound And Smoother Compression _x000D_
- Long-Lasting Premium Liquid Metallic Finish And Polyvinyl Protective Boot Ensures Longer Life _x000D_
- Includes Mounting Hardware _x000D_
- Gas Charged With Nitrogen _x000D_
- Body Diameter Of 2.188 Inches _x000D_
- Extended Length 20.49 Inches _x000D_
- Compressed Length 13.39 Inches _x000D_
- Shock Stroke Length 7.1 Inches _x000D_
- Lower Mount Type: Cross Pin Mount - Closed Ended, 3/8 Inch Hole ID _x000D_
- Upper Mount Type: Stem Mount With 3/8-16 Thread Pitch _x000D_
- Boot Included _x000D_
- Manual Adjustable Damping Type _x000D_
- Progressive Valving _x000D_
- Shock Rod Diameter 0.622 Inches _x000D_
- Steel Body And Cylinder _x000D_
- Painted Silver Finish _x000D_
- Tri Tube Internal Construction _x000D_
- Includes Dust Shield _x000D_
- Does Not Include Coil Springs _x000D_
- Does Not Feature Remote Reservoir Or Adjustable Ride Height _x000D_
- Does Not Feature Active Or Air Ride Suspension _x000D_
- Shock Absorber Rod End Measuring Point At Center Of Cross Pin _x000D_
- Shock Absorber Body End Measuring Point At Base Of Stem _x000D_
- Fits 84-01 Jeep Cherokee XJ. Use To Depletion, Then Use Alternate Model RS994128. _x000D_
| Brand | Rancho |
| Shock Lift Height | 0 to 1-Inch Lift |
| Shock Type | Adjustable |
Description
Adjustable Ride Control. The Rancho Front RS9000XL Shock provides exceptional control with its nine-position manually adjustable knob, allowing users to customize damping firmness based on driving needs. Designed for both on-road and off-road applications, it improves ride quality, handling, and towing capabilities, accommodating various terrains and vehicle loads.
_x000D__x000D_Construction and Appearance. Built with a durable steel tri-tube body and an 18mm nitro-carburized piston rod, this shock absorber resists corrosion and scuffing for longevity. It features a premium liquid metallic finish combined with a polyvinyl protective boot, delivering a sleek silver appearance while protecting against environmental damage. Internal components include a 1.25-inch sintered iron piston and low-friction self-lubricating seals for optimal performance.
_x000D__x000D_Installation. Installation is straightforward with included mounting hardware and does not require drilling or modifications. It is designed for direct replacement on compatible vehicles, facilitating a smooth upgrade process for experienced technicians or knowledgeable DIYers.
_x000D__x000D_Warranty. This shock absorber comes with a limited lifetime warranty, ensuring confidence in its durability and performance.
_x000D__x000D_Application. Specifically engineered to fit the 1984 to 2001 Jeep Cherokee XJ front suspension. It is advised to use this model until depletion, followed by the recommendation to switch to the RS994128 shock for continued performance.
Rancho RS999128
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Front Shock
- Installation Hardware
