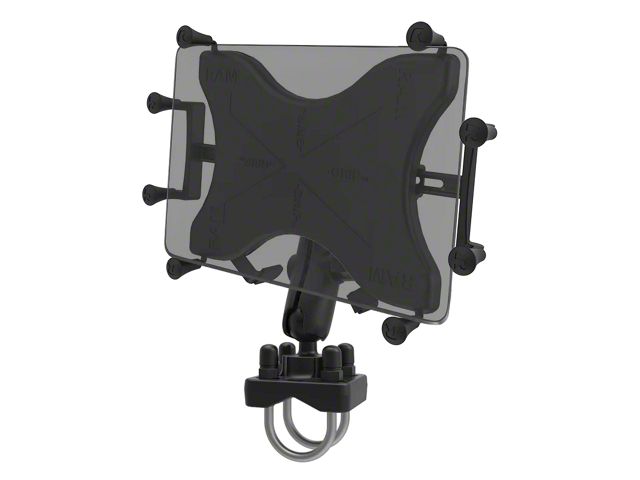

RAM Mounts X-Grip Mount with Double U-Bolt Base for 9 to 10-Inch Tablets (Universal; Some Adaptation May Be Required)

Item XJ8746
Product Image
7 Reviews of RAM Mounts
Our Price

$149.61

Military, Medical & First Responders $7.48 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

      • Consists of a double stainless steel U-bolt base, double socket arm, round base adapter, and universal X-Grip® clamping cradle for 9" - 11" tablets
      • Hardware accommodates rails from 1" to 1.25" in diameter
      • Includes black cover caps for exposed ends of the U-bolt
      • Features a 1.5" diameter patented rubber ball and socket system with adjustment points at both ends of the double socket arm
      • X-Grip® clamping cradle has a composite spring-loaded cradle, expandable grip arms, and additional bottom support keeper
      • Equipped with easy access grip knobs for quick tablet release
      • Expands and contracts for most 9" - 11" tablets with or without sleeves, and some smaller tablets
      • Includes assembly hardware with 2 U-bolts, 4 Nylock nuts, and 4 rubber caps
      • Holder max height is 10.25" with optional supports
      • Holder width range is 6.25" - 8.1"
      • Holder max depth is 0.875"
      • Clamp range supports 1" - 1.25" diameter rails
      • Socket to socket length is 3"
      • C size ball measurement at 1.5"
      • Supports 4 lbs for standard use and 3 lbs for heavy-duty use
      • Made from marine-grade aluminum and high strength composite
      • Packaged in a poly bag
      • Product weight is 2.54 lb
      • Fits universal; some adaptation may be required

      Description

      Product Overview. The RAM Mounts X-Grip Mount with Double U-Bolt Base for 9 to 11-Inch Tablets is a versatile mounting solution designed to securely hold tablets ranging from 9 to 11 inches in size. It uses a patented ball and socket system allowing for extensive adjustment and precise viewing angles, making it ideal for environments needing reliable device positioning. This mount is suitable for various applications, including vehicles or environments where vibration resistance and stability are crucial.

      Construction and Appearance. Constructed from durable marine-grade aluminum and high-strength composite materials, this mount ensures longevity and resistance to harsh conditions. The stainless steel U-bolt base and composite spring-loaded cradle provide a robust, professional-grade appearance with black cover caps to finish the exposed ends, delivering both functionality and aesthetics.

      Installation. Installation of the mount is straightforward, requiring basic assembly with the included hardware; no drilling is necessary when mounting to rails within the specified diameter range. The design accommodates 1" to 1.25" diameter rails, facilitating adaptable and secure attachment.

      Warranty. This product includes a comprehensive warranty ensuring quality and customer satisfaction for a significant period.

      Application. This mount fits universal tablet sizes from 9 to 11 inches, accommodating most devices within these dimensions with or without protective sleeves. Some adaptation may be required depending on tablet thickness or cases used.

      RAM Mounts RAM-HOL-UN9-235U
