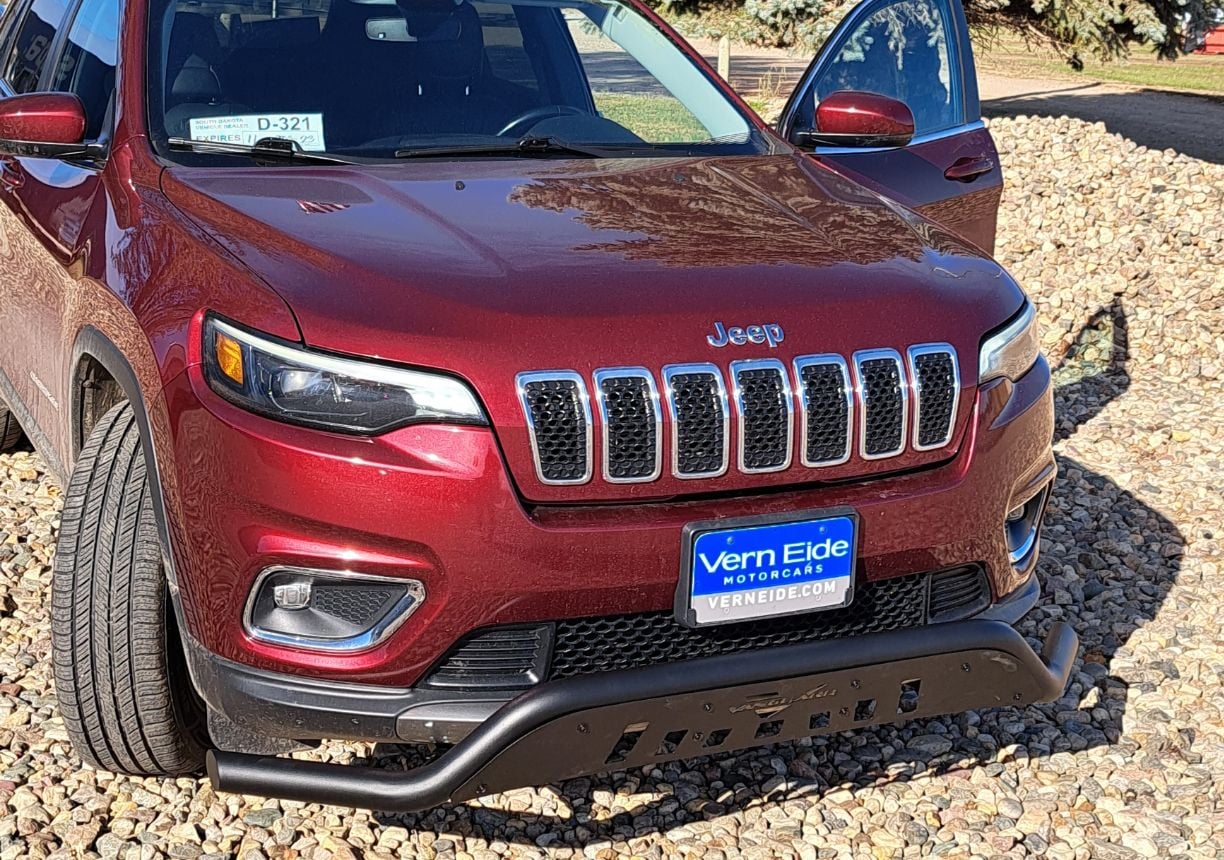

Jeep Cherokee KL Service Information
Fluid Capacities and Type
DESCRIPTION |
TYPE |
CAPACITIES |
|---|---|---|
| 2.4L Engine Oil (2011-12) | 0W-20 | 5.5 Quarts / 5.2 Liters |
| 3.2L Engine Oil (2013-18) | 5W-20 | 6 Quarts / 5.6 Liters |
| 2.0L Diesel Engine Oil | Full Synthetic Low Ash 0W-30 | 4.3 Quarts / 4.1 Liters |
| 2.2L Diesel | Full Synthetic Low Ash 0W-30 | 4.3 Quarts / 4.1 Liters |
| 2.4L Coolant | 50/50 Mixture 10 Year/150,000 Mile Formula OAT (Organic Additive Technology) or equivalent | 7.2 Quarts / 6.8 Liters |
| 3.2L Coolant | 50/50 Mixture 10 Year/150,000 Mile Formula OAT (Organic Additive Technology) or equivalent | 10 Quarts / 9.5 Liters |
| 2.0L Diesel Coolant | 50/50 Mixture 10 Year/150,000 Mile Formula OAT (Organic Additive Technology) or equivalent | 7.2 Quarts / 6.8 Liters |
| 2.2L Diesel | 50/50 Mixture 10 Year/150,000 Mile Formula OAT (Organic Additive Technology) or equivalent | 7.2 Quarts / 6.8 Liters |
| 948TE 9-Speed Automatic | MOPAR® ZF 8&9 Speed ATF™Automatic Transmission Fluid, or Equivalent. | 6.35 Quarts / 6 Liters |
| C635 6-Speed Manual | MOPAR® C635 DDCT/MTX Transmission Fluid or Equivalent | 1.8 Quarts / 1.7 Liters |
| Active Drive I (Power Transfer Unit) "PTU" | 75W-90 Gear and Axle Lubricant | 0.74 Quarts / 0.70 Liters |
| Active Drive II (Power Transfer Unit) "PTU" | 75W-90 Gear and Axle Lubricant | 1.06 Quarts / 1.00 Liters |
| Active Drive Lock (Power Transfer Unit) "PTU" | 75W-90 Gear and Axle Lubricant | 1.06 Quarts / 1.00 Liters |
| Rear Differential - One Speed | 70W-80 Gear and Axle Lubricant | 0.94 Quarts / 0.89 Liters |
| Rear Differential - Two Speed | 70W-80 Gear and Axle Lubricant | 1.22 Quarts / 1.15 Liters |
| Rear Differential - Two Speed With Locker | 70W-80 Gear and Axle Lubricant | 1.3 Quarts / 1.23 Liters |
| Rear Differential Hydraulic Fluid | Synthetic Hydraulic Control Fluid *Rear Differential Hydraulic Control Unit Has Separate Reservoir On Top Of Rear Differential |
0.46 Quarts / 0.439 Liters |
| Brake / Clutch Master Cylinder Reservoir * Brake and Clutch share same reservoir |
DOT 3 Brake Fluid | As Required / To Full Mark |
Air Conditioning System Information
DESCRIPTION |
TYPE |
CAPCITY |
|---|---|---|
| A/C Refrigerant *Gas Engines | R-1234yf (Refer to under hood label for refrigerant type requirements) | 1.06 Pounds / 0.482 Kilograms |
| A/C Refrigerant *Diesel Engines | R-1234yf (Refer to under hood label for refrigerant type requirements) | 1.12 Pounds / 0.510 Kilograms |
| A/C Refrigerant *All Engines | R-134a (Refer to under hood label for refrigerant type requirements) | 1.19 Pounds / 0.539 Kilograms |
Fuel
DESCRIPTION |
TYPE |
CAPCITY |
|---|---|---|
| 2.4L | 87 Octane or Higher, Unleaded | 15.8 Gallons / 60 Liters |
| 2.4L Flex Fuel | E85 | 15.8 Gallons / 60 Liters |
| 2.4L (Europe) | Minimum 91 Octane, Unleaded | 15.8 Gallons / 60 Liters |
| 3.2L | 87–89 Octane or Higher, Unleaded | 15.8 Gallons / 60 Liters |
| 3.2L Europe | 91-93 Research Octane, Unleaded | 15.8 Gallons / 60 Liters |
| 2.0L Diesel | EN590 Ultra Low Sulfur Diesel | 15.8 Gallons / 60 Liters |
| 2.2L Diesel | EN590 Ultra Low Sulfur Diesel | 15.8 Gallons / 60 Liters |
Spark Plug Specifications
DESCRIPTION |
TYPE |
GAP |
|---|---|---|
| 2.4L | Champion® Iridium Spark Plug | 0.047 in / 1.20 mm |
| 3.2L | Champion® Iridium Spark Plug | 0.043 in / 1.10 mm |
Notes
*Nominal refill capacities are shown. A variation may be observed from vehicle to vehicle due to manufacturing tolerance and refill procedure.
**All Cherokee KL vehicles are equiped with Electric Power Steering. The EPS is a dry gear system and does not contain any hydraulic fluid
***Not all vehicles use R1234yf refrigerant. Refer to under hood label for refrigerant requirements. DO NOT mix refrigerants
**** NEVER use R-12 refrigerant in Cherokee KL A/C system
***** DOT 4 Brake Fluid may be used if DOT 3 is unavailable. DOT 4 has shorter service life.
****** Never use Ethanol based fuels in non Flex Fuel Cherokee KL fuel system, IE: E-85, E-90
******* Fuels with up to 15% Ethanol Content are acceptable in non Flex Fuel Cherokee KL
Wheel Alignment Specifications
|
|
TOTAL TOE** |
CASTER* |
CROSS CASTER* |
CAMBER* |
CROSS CAMBER* |
|---|---|---|---|---|---|
| Front Wheel - Vehicles Built 09/16/2013 and After | |||||
| FWD | 0.10° +/- 0.15° | 4.01° +/- 0.45° | 0.00° +/- 0.50° | -0.54° +/- 0.40° | 0.00° +/- 0.50° |
| AWD | 0.10° +/- 0.15° | 4.26° +/- 0.45° | 0.00° +/- 0.50° | -0.54° +/- 0.40° | 0.00° +/- 0.50° |
| TRAILHAWK | 0.10° +/- 0.15° | 4.28° +/- 0.45° | 0.00° +/- 0.50° | -0.45° +/- 0.40° | 0.00° +/- 0.50° |
| Front Wheel - Vehicles Built Before 09/16/2013 | |||||
| FWD | 0.10° +/- 0.15° | 3.51° +/- 0.45° | 0.00° +/- 0.50° | -0.54° +/- 0.40° | 0.00° +/- 0.50° |
| AWD | 0.10° +/- 0.15° | 3.83° +/- 0.45° | 0.00° +/- 0.50° | -0.54° +/- 0.40° | 0.00° +/- 0.50° |
| TRAILHAWK | 0.10° +/- 0.15° | 4.13° +/- 0.45° | 0.00° +/- 0.50° | -0.45° +/- 0.40° | 0.00° +/- 0.50° |
| Rear Wheel Alignment Specifications | |||||
| FWD | 0.00° +/- 0.12° | 0.00° +/- 0.15° | 0.00° +/- 0.10° | -0.99° +/- 0.40° | 0.00° +/- 0.40° |
| AWD | 0.00° +/- 0.12° | 0.00° +/- 0.15° | 0.00° +/- 0.10° | -0.99° +/- 0.40° | 0.00° +/- 0.40° |
| TRAILHAWK | 0.00° +/- 0.12° | 0.00° +/- 0.15° | 0.00° +/- 0.10° | -1.03° +/- 0.40° | 0.00° +/- 0.40° |
