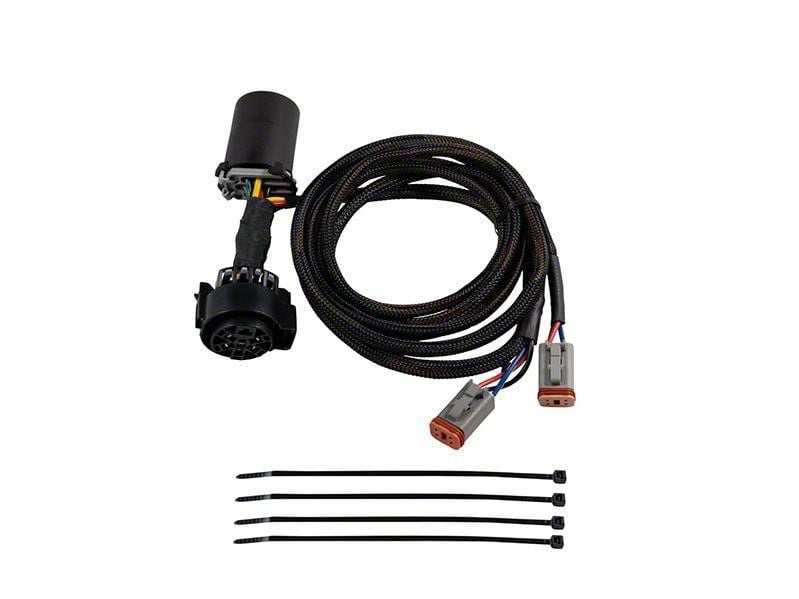

Diode Dynamics Stage Series 7-Pin Dual-Output Trailer Wiring Harness (Universal; Some Adaptation May Be Required)
Item TU25148
Our Price
$39.95 set
Military, Medical & First Responders
$2.00 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- Powers Diode Dynamics LED Pods With Backlight Functionality
- Connects Directly To Trailer Hitch Wiring For Simple, Everyday Operation Of LED Pods
- High Capacity 10AWG Wiring
- Dual Deutsch DT Output Connectors
- Operating Voltage 9-16V
- Wire Size 10AWG
- Operating Temperature -40C To 85C (-40F To 185F)
- Connector(s) Deutsch DT Input
- Unit Weight 0.58 Lb
- Product Weight 0.58 Lb
- Shipped Weight 0.6 Lb
- Fits Universal; Some Adaptation May Be Required
| Brand | Diode Dynamics |
| Towing Type | Wiring and Wiring Harnesses |
Description
Enhanced Lighting Control. The Diode Dynamics Stage Series 7-Pin Dual-Output Trailer Wiring Harness enables seamless connection of LED pods with backlight features directly to a vehicle’s trailer wiring. It provides easy operation by allowing the LED pods to function as red accent lights with tail lights, then automatically switch to a high-power backup light when the vehicle is in reverse, enhancing visibility and safety.
Construction and Appearance. This harness features robust 10AWG high-capacity wiring designed to handle substantial electrical loads reliably. It uses dual Deutsch DT connectors known for secure and weather-resistant connections, with a durable build that withstands harsh operating temperatures ranging from -40C to 85C, ensuring long-lasting performance in demanding environments.
Installation. Installation is straightforward and requires no tools or modifications. It typically takes 10 to 20 minutes to connect the harness directly to existing trailer wiring, making it an accessible upgrade for improved vehicle lighting functionality.
Warranty. The product includes a 3-year replacement limited warranty, providing assurance of quality and durability.
Application. Fits universally with potential minor adaptations needed for specific vehicles or setups. It is designed for compatibility with Diode Dynamics LED pods featuring backlight functionality and trailer wiring systems configured with a 7-pin setup.
Diode Dynamics DD4135
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Seven-Pin Dual-Output Wiring Harness
- Zip Ties
- Mounting Bracket
- Instruction Manual
