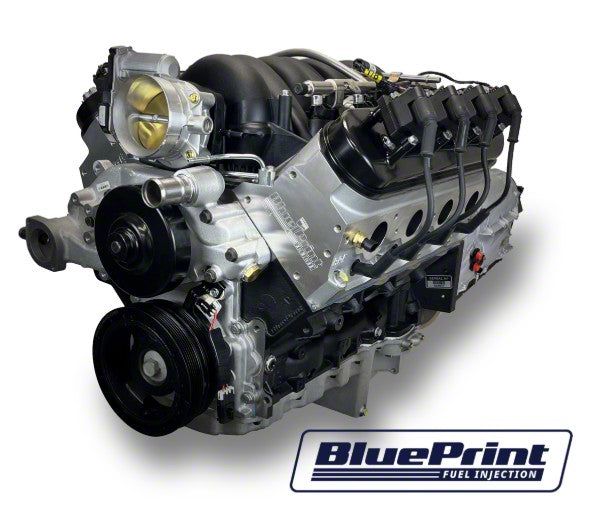

BluePrint Engines Standard Edition Builder Series GM LS 376 C.I. 530 HP Crate Engine and ZF-8 Speed Automatic Transmission with Calibrated ECU

Item U68134-XT
Product Image
New
Our Price

$18,550.00

Military, Medical & First Responders $927.50 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

      • 530 Horsepower / 495 Ft. Lbs. Torque
      • BluePrint Engines Aluminum Cylinder Heads
      • Compression Ratio 10.7:1
      • Hydraulic Roller Cam With .612 Intake Lift / .585 Exhaust Lift And 225 Intake / 238 Exhaust Duration At .050 – 113 LSA
      • Hypereutectic Flat Pistons With 2cc Valve Reliefs
      • Nodular Iron Crankshaft With 3.622" Stroke And Forged I-Beam 6.125" Rods
      • BluePrint Engines Complete Engine Harness And ECU Kit
      • Fuel Recommendation 91+ Octane
      • Requires BluePrint Engines Electronic Shifter
      • Includes ZF 8-Speed Automatic Transmission With Manual Mode And 0.2 Second Shift Times
      • Transmission Gear Ratios Start At 4.70 First Gear And End At 0.64 Eighth Gear
      • Comes With Bell Housing, Transmission Crossmember Mount, Park Pawl Release Handle, And 1350 U-Joint Yoke
      • Block Is High Strength Cast Iron LSX Style With Increased Deck Thickness, Strength Webbing, Extended Cylinder Skirt, And Priority Main Oiling
      • BluePrint Engines LS3 Aluminum Heads With 69cc Chamber, 2.165" Intake / 1.590" Exhaust Valves, And 259cc Intake Runners
      • Improved Water Jacket Design And OEM LS3 Front And Rear Covers
      • Rotating Assembly Internally Balanced Front And Rear
      • Includes LS Swap Oil Pan, Windage Tray, Pick Up Screen, Fuel Injectors And Rail, GM Plastic Intake Manifold, Spark Plugs And Wires, Harmonic Balancer, Coil Packs, Throttle Pedal And Sensors, And DBW Throttle Body
      • Engine Ships Assembled And Calibrated With Installation Hardware
      • Fits Most 1955-1995 GM Front-Engine, RWD V8 Vehicles With Retrofit LS-Style Oil Pan

      Description

      HIGH-PERFORMANCE CRATE ENGINE PACKAGE. The BluePrint Engines Standard Edition Builder Series GM LS 376 C.I. 530 HP Crate Engine and ZF 8-Speed Automatic Transmission with Calibrated ECU offers a turnkey high-performance powertrain solution. Designed for pro-touring builds, Restomods, and street performance vehicles, this package delivers 530 horsepower and 495 ft-lbs of torque with pump gas compatibility, combining modern engine technology with reliable transmission performance for sophisticated drivability.

      CONSTRUCTION AND APPEARANCE. Built on a robust high-strength cast iron LSX-style block, the engine features BluePrint’s LS3 aluminum cylinder heads, hypereutectic flat-top pistons with 2cc valve reliefs, and forged nodular iron crankshaft with forged I-beam rods. The rotating assembly is precision balanced front and rear, and the entire assembly includes OEM-level components such as a GM plastic intake manifold, harmonic balancer, and BluePrint calibrated ECU and engine harness. The ZF 8HP70 transmission complements the build with fully electronic shifting strategy and OEM fitment accessories including the bell housing, crossmember mount, park pawl release handle, and a 1350 U-joint yoke.

      INSTALLATION. Installation is designed to be straightforward with included hardware and a retrofit LS-style oil pan compatible with most 1955-1995 GM front-engine, rear-wheel-drive V8 vehicles. No drilling or custom modifications are typically required, making it accessible for professional installers and experienced enthusiasts.

      WARRANTY. This engine package is backed by a 30-month or 50,000-mile transferable warranty, providing confidence in the quality and durability of the powertrain components.

      APPLICATION. This crate engine and transmission package is engineered for GM LS-compatible installations and is not intended for use in pollution-controlled vehicles or dry sump systems.

      BluePrint Engines BLS3763ZF
