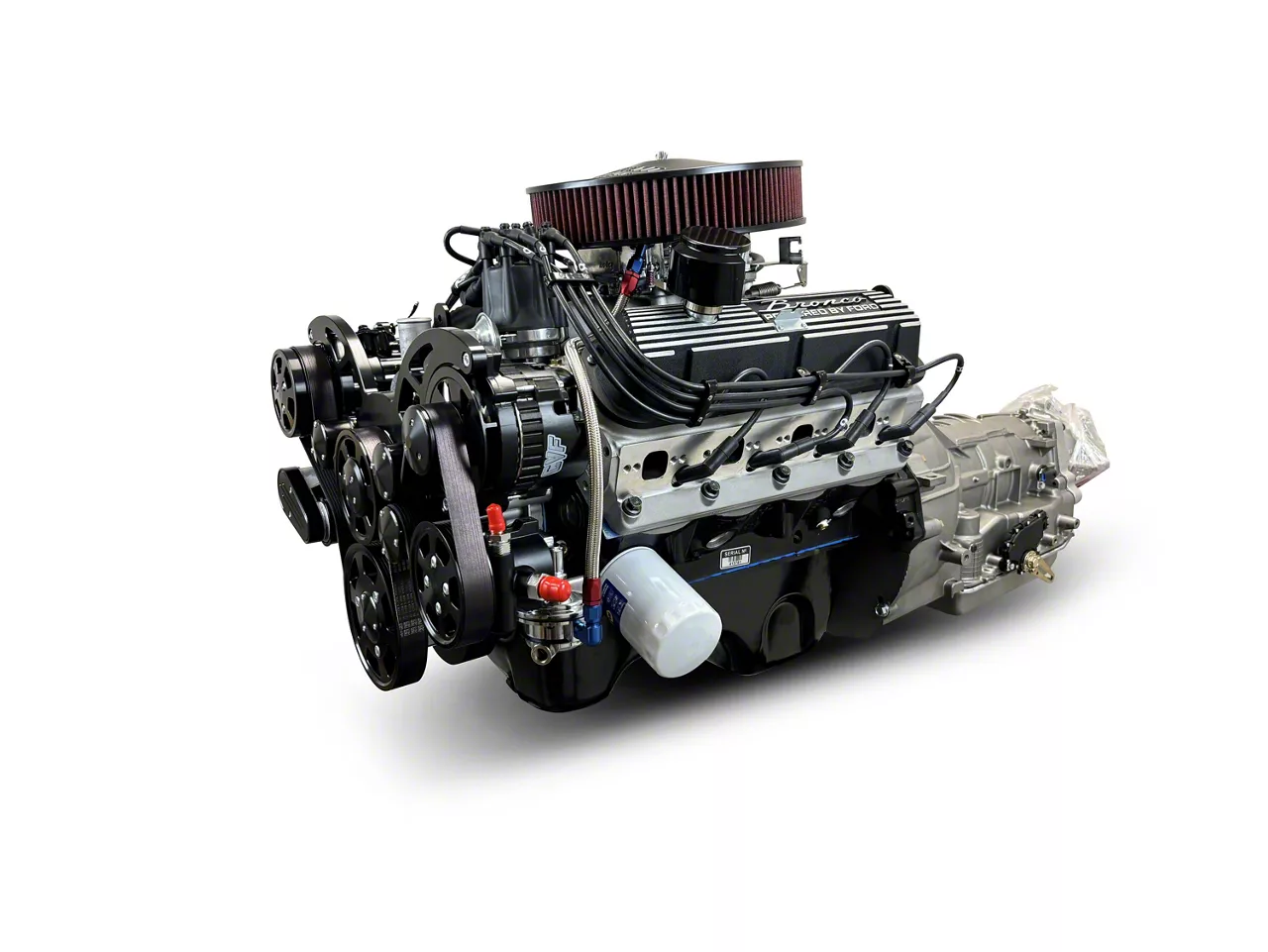

BluePrint Engines Bronco Edition Builder Series Small Block Ford 302 C.I. 365 HP Carbureted Crate Engine and 4R70W Automatic Transmission with Black Pulley Kit
Item U19331-XT
Our Price
$18,699.00
Military, Medical & First Responders
$934.95 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- 365 Horsepower / 365 Ft. Lbs. Torque
- Compression Ratio: 9.5:1
- Aluminum Cylinder Heads
- Hydraulic Roller Camshaft
- Hypereutectic Pistons
- High Strength Cast Iron Block
- Increased Deck Thickness and Strength Webbing
- Priority Main Oiling
- 4.000" Bore
- 4-Bolt Main Caps
- 1-Piece Rear Main Seal
- Improved Water Jacket Design
- Cast Crankshaft
- 3.000" Stroke
- OEM Type 5.090" Connecting Rods
- 50oz Externally Balanced
- BluePrint Aluminum Cylinder Heads - HP9009
- 60cc Combustion Chambers
- 2.02" Intake / 1.60" Exhaust Valves
- 190cc Intake / 60cc Exhaust Ports
- Roller Cam Type
- .533" Intake / .544" Exhaust Valve Lift
- 215 Intake / 220 Exhaust Duration @ .050" Lift
- 114 Degree Lobe Separation Angle
- Ignition Timing: 34 Degrees Total at 3500 RPM
- Holley 600 CFM Street Warrior Carburetor Included
- Dual Plane Satin Aluminum Intake Manifold
- Distributor Included
- Valve Covers Included
- Dual/Rear Sump Oil Pan
- Electric Fuel Pump Included
- Thermostat and Thermostat Housing Included
- Black Front Accessory Drive Kit Included
- Driver Side Standard Rotation Water Pump
- Type II Power Steering Pump
- Remote Power Steering Pump Reservoir
- 140amp 1-Wire Alternator
- 7B10 Peanut Air Conditioning Compressor
- Complete 4R70W 4WD Ready Automatic Transmission Package Included
- Electronic Transmission Controller Included (Throttle Position Sensor Not Included)
- Transmission Built to 650 HP
- 2200–2600 Stall Torque Converter
- Flex Plate Included
- Starter Included
- 4-Speed Overdrive Transmission with Lockup
- Prepped for Dana 20 Transfer Case (1966–1976) - Transfer Case Not Included
- Gear Ratios: First 2.84:1, Second 1.55:1, Third 1.00:1, Overdrive 0.70:1, Reverse 2.32:1
- Fuel Recommendation: 87+ Octane
- Fits classic Bronco restorations and other compatible small block Ford applications
Description
Powerful Engine Package. The BluePrint Engines Bronco Edition Builder Series Small Block Ford 302 C.I. 365 HP Carbureted Crate Engine and 4R70W Automatic Transmission with Black Pulley Kit delivers robust power and dependable performance. This combination produces 365 horsepower and 365 lb-ft of torque, making it ideal for those seeking a reliable replacement or upgrade engine. It is commonly used in classic Bronco restorations and other compatible small block Ford applications where smooth power delivery and durability are essential.
Construction and Appearance. Built on a high-strength cast iron block with increased deck thickness and strength webbing for added durability, this engine features aluminum cylinder heads with a satin finish, a black low-profile front accessory drive, and a hydraulic roller camshaft. The rotating assembly includes a cast crankshaft and hypereutectic pistons, and the entire unit is externally balanced for smooth operation. The design combines solid engineering with a clean, attractive appearance.
Installation. Installation is straightforward for experienced mechanics but may require modifications to existing driveshafts, transmission mounts, and exhaust routing due to the 4R70W transmission inclusion. While no drilling is typically required, it is recommended to verify fitment—especially of the front accessory drive components—for each specific vehicle application.
Warranty. This engine package is backed by a 30-month or 50,000-mile transferable warranty, providing coverage for parts and labor, ensuring quality and peace of mind for the purchaser.
Application. The engine and transmission package is designed to fit vehicles originally equipped with small block Ford engines and is specifically prepped for Dana 20 transfer cases used between 1966 and 1976. The transfer case is not included. Front accessory drive fitment should be carefully checked, as it features a low-profile design that may require additional fitting or fabrication.
BluePrint Engines B302KB4WDB
