Installation Time
(approx) 5 Hours
Difficulty Level:
Mechanical expertise or professional installation required.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details
BDS 8.50-Inch Long Arm Suspension Lift Kit with NX2 Nitro Performance Shocks (84-01 4WD Jeep Cherokee XJ w/ 8.25-Inch Rear Axle)Find parts that fit my vehicle
Item XJ24038
Our Price
$3,566.35 kit
Military, Medical & First Responders
$178.32 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- Maximize the capability of your 1984–2001 Jeep Cherokee XJ 4WD with this 8.5-inch lift kit featuring a long arm conversion
- Designed to improve vehicle stance and provide clearance for tires up to 35 inches with possible trimming required
- Includes redesigned long upper and lower control arms to minimize caster changes for optimal handling
- Features a massive belly pan that incorporates link mounts and is built to withstand rock impacts
- Primarily a bolt-on system but requires some welding during installation

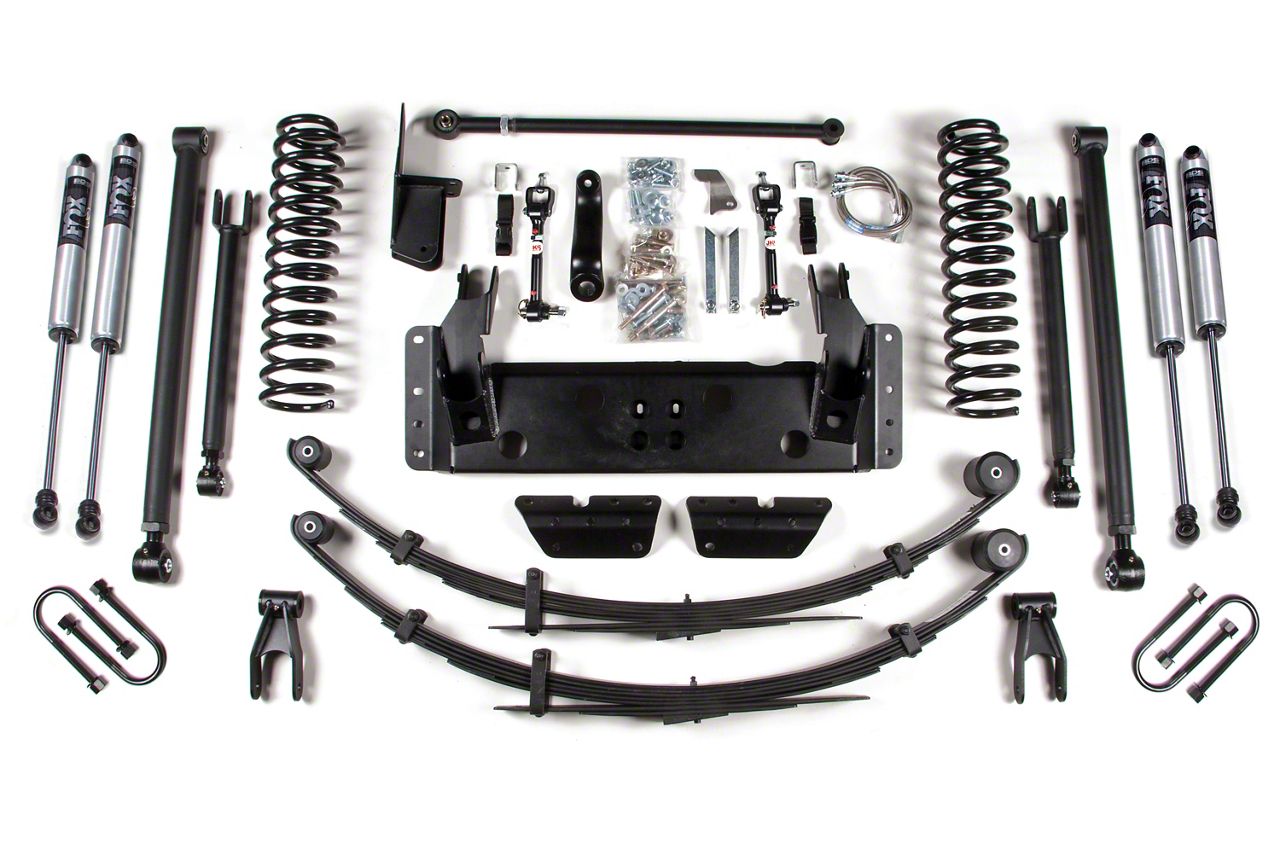

- Front kit includes belly pan with pivot mounts, heavy-duty lower flex arms, adjustable upper flex arms, Pro-Ride coil springs, bump stop extensions, and choice of NX2 Nitro Series or FOX 2.0 IFP performance gas shocks
- Includes braided stainless steel brake lines, ultimate sway bar disconnects, front adjustable track bar with flex joint, and a drop pitman arm
- Rear kit utilizes Glide-Ride leaf springs, stainless braided brake lines, 2-inch lift blocks, and extended shackles with options for Chrysler 8.25 or Dana 35 rear axle
- Long arm conversion features 1/4-inch steel frame-mounted brackets, oversized upper and lower formed long arms, and oversized greaseable polyurethane bushings
- Pro-Ride coil springs are Jeep-specific, full-length springs made from high tensile steel for durability and reduced coil bind
- Shock options include NX2 Nitro Series with twin-tube design and FOX 2.0 Performance Series with monotube design; shock choice depends on specific kit configuration
- Requires CV style rear driveshaft and slip yoke eliminator kit (not included)
- Compatible only with 4.0L motor and automatic transmission
- May require longer emergency brake cable for 1996 and earlier models
- Fits 1984–2001 4WD Jeep Cherokee XJ with 8.25-inch or Dana 35 rear axle; always measure rear u-bolts to ensure proper fitment
| Brand | BDS |
| Lift Height | 8.50 Inch |
| Lift Kit Type | Spacer Lift |
| Lift Kit Max Tire Size | 36 Inch |
| Brand of Shocks | BDS |
| Rear Lift Type | Spacer |
| Shock Type | Non-Reservoir |
Description
High-Performance Suspension Lift. The BDS 8.5-Inch Long Arm Suspension Lift Kit significantly enhances the off-road capability and stance of 1984 to 2001 Jeep Cherokee XJ 4WD models. This lift raises the vehicle to improve ground clearance, providing room for larger tires up to 35 inches (with trimming potentially required) and greater articulation, critical for navigating tough terrain and challenging conditions.
Construction and Appearance. Built from heavy-duty steel, the kit features formed long arms with oversized greaseable polyurethane bushings to enhance durability and vibration isolation. It includes a robust belly pan designed to resist rock damage, and Jeep-specific Pro-Ride coil springs made from high tensile steel with a powder coat finish for corrosion resistance and long-lasting performance.
Installation. Installation is challenging and requires welding, drilling, and specialized tools such as a cut-off wheel and pitman arm puller. While the system is primarily bolt-on, some welding to the unibody is necessary. The estimated installation time is approximately 10 hours.
Application. Designed for 1984 to 2001 Jeep Cherokee XJ 4WD models equipped with either the 8.25-inch Chrysler or Dana 35 rear axle, this kit requires measuring rear u-bolts to ensure proper fitment. It is compatible only with vehicles powered by the 4.0L engine paired with an automatic transmission. Some configurations may require longer emergency brake cables and a CV-style rear driveshaft with a slip yoke eliminator kit (not included).
BDS BDS1434FS
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Lift Kit
5.0
Customer Reviews (1)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Cherokee
- XJ Base 2 Door - 84, 85, 86, 87, 88, 89, 90, 91, 92, 93
- XJ Base 4 Door - 84, 85, 86, 87, 88, 89, 90, 91, 92, 93
- XJ Briarwood 4 Door - 91, 92
- XJ Chief 2 Door - 85, 86, 87, 88
- XJ Chief 4 Door - 85, 86, 87, 88
- XJ Classic 4 Door - 96, 98, 99, 00, 01
- XJ Country 2 Door - 93, 94, 95, 96, 97
- XJ Country 4 Door - 93, 94, 95, 96, 97
- XJ Laredo 2 Door - 85, 86, 87, 88, 89, 90, 91, 92
- XJ Laredo 4 Door - 85, 86, 87, 88, 89, 90, 91, 92
- XJ Limited 2 Door - 87, 88, 89, 90, 91, 92, 98, 99, 00, 01
- XJ Limited 4 Door - 87, 88, 89, 90, 91, 92, 98, 99, 00, 01
- XJ Pioneer 2 Door - 85, 86, 87, 88, 89, 90
- XJ Pioneer 4 Door - 85, 86, 87, 88, 89, 90
- XJ SE 2 Door - 94, 95, 96, 97, 98, 99, 00, 01
- XJ SE 4 Door - 94, 95, 96, 97, 98, 99, 00, 01
- XJ Sport 2 Door - 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 00, 01
- XJ Sport 4 Door - 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 00, 01
