Installation Time
(approx) 30 Minutes
Difficulty Level:
Simple installation for anyone.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details
Find Auxiliary Lighting for your Cherokee

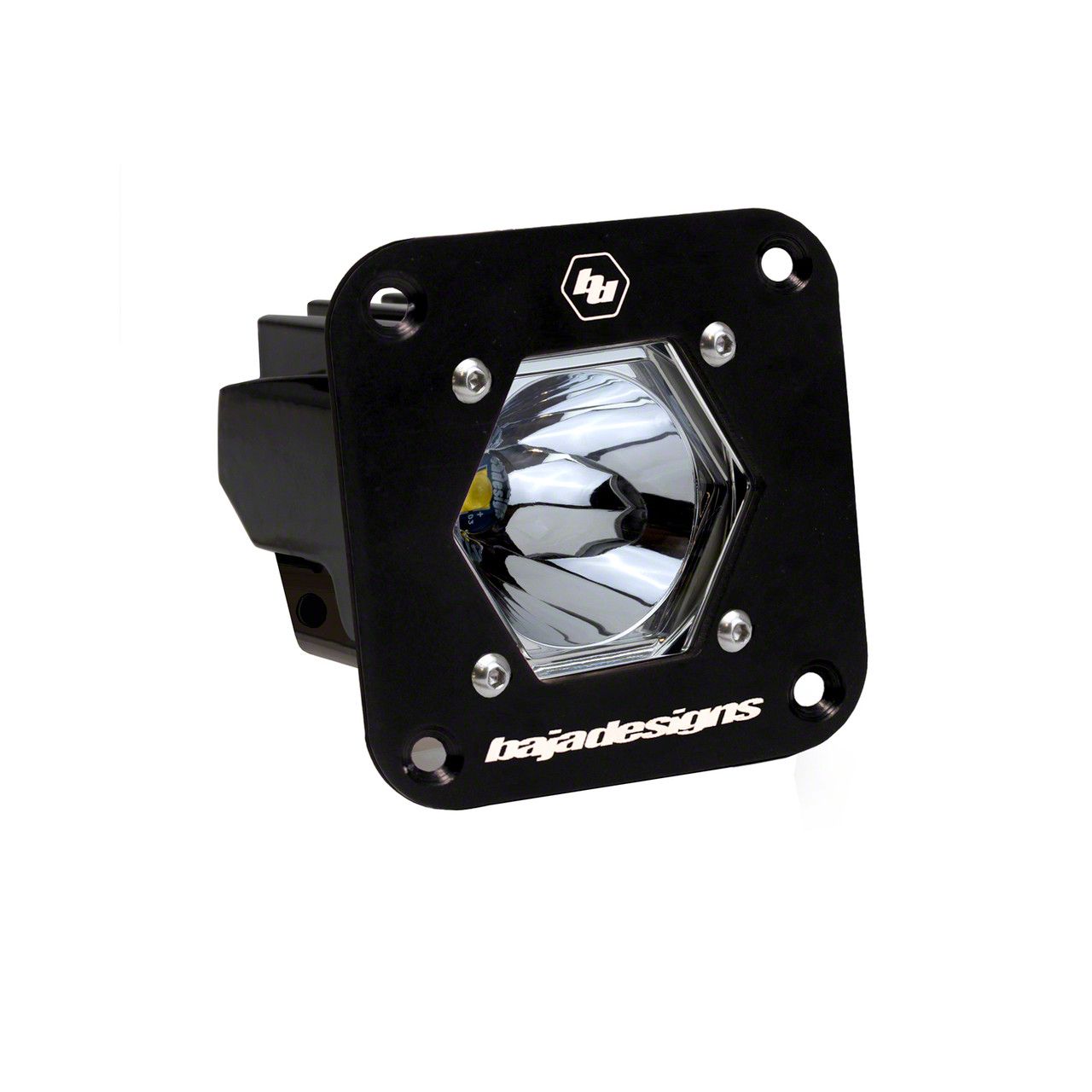

Baja Designs S1 Flush Mount Auxiliary Light Pod; Wide Cornering Beam; Clear (Universal; Some Adaptation May Be Required)
Item XJ12515
Our Price
$147.35 each
Military, Medical & First Responders
$7.37 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Overvoltage Protection Built-In _x000D_
- Product Type S1 Flush Mount LED Light Pod _x000D_
- Voltage 9-28 V _x000D_
- Wattage 19.596 Watts _x000D_
- Wiring Harness Not Included _x000D_
- Amperage Rating 1.420 Amps _x000D_
- Average Rated Life 49,930 Hours _x000D_
- Beam Pattern Wide Cornering _x000D_
- Bezel Material Powder Coated Cast Aluminum _x000D_
- Brightness 2,320 Lumens _x000D_
- Description Flush Mount; Wide Cornering; Clear _x000D_
- Housing Color Black _x000D_
- Housing Material Hard Anodized And Powder Coated Cast Aluminum _x000D_
- Lens Color Clear _x000D_
- Lens Material Hardcoated Polycarbonate _x000D_
- Light Quantity 1 _x000D_
- Lighting Modes Beam _x000D_
- Lighting Technology LED _x000D_
- Lighting Type Forward Projecting _x000D_
- Mounting Hardware Included _x000D_
- Mounting Hardware Material Stainless Steel _x000D_
- Standards Durability Exceeds MIL-STD810G Mil-Spec Testing _x000D_
- Impact Resistance IK10 Compliant Mechanical Impact Testing _x000D_
- Water Resistance IP69K Waterproof Up To 9ft And Pressure Washable _x000D_
- Dimensions Length 2.1 Inches _x000D_
- Dimensions Width 2.1 Inches _x000D_
- Dimensions Height 2.1 Inches _x000D_
- Weight 0.4 Pounds _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Baja Designs |
| Bulb Type | LED |
| Light Shape | Square |
| Light Size | 2 to 2.75 Inch |
Description
Compact High-Performance. The Baja Designs S1 Flush Mount Auxiliary Light Pod with a Wide Cornering Beam and Clear lens offers powerful and efficient LED illumination in a compact design. It is ideal for off-road driving, work sites, or campsite lighting, delivering bright light and advanced beam control to ensure enhanced visibility in various conditions.
_x000D_Construction and Appearance. This light pod features a durable housing constructed from hard anodized and powder coated cast aluminum in black, complemented by a clear, hardcoated polycarbonate lens. The premium materials provide excellent durability, corrosion resistance, and a refined professional appearance.
_x000D_Installation. Installation is simplified with included stainless steel mounting hardware. A single 2.5-inch hole saw is required for mounting, allowing easy integration into a wide range of setups.
_x000D_Warranty. The product comes with a limited lifetime warranty for reliable purchase protection.
_x000D_Application. Designed for universal fitment, though some adaptation may be necessary depending on vehicle specifics.
Baja Designs 381005
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) S1 Flush Mount Auxiliary Light Pod
