Find Auxiliary Lighting for your Cherokee
Baja Designs LP4 Pro LED Auxiliary Light Pods with Amber Backlight; Driving/Combo Beam; Amber (Universal; Some Adaptation May Be Required)
Item XJ12489
Our Price
$875.95 pair
Military, Medical & First Responders
$43.80 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Overvoltage Protection Built-In _x000D_
- Product Type LP4 Pro LED Light Pod Pair with Wiring Harness _x000D_
- Secondary Brightness 1972 Lumens _x000D_
- Secondary Light Quantity 4 LEDs _x000D_
- Secondary Lighting Technology LED _x000D_
- Secondary Lighting Type Integrated Peripheral Technology (IPT) _x000D_
- Secondary Wattage 15 W _x000D_
- Terminal Connector DT06-4S Deutsch _x000D_
- Terminal Type Mating Connector _x000D_
- Universal _x000D_
- Wattage 75.9 W _x000D_
- Wiring Harness Included Yes _x000D_
- Amperage Rating 5.5 A _x000D_
- Average Rated Life 49,930 Hours _x000D_
- Backlight Amperage Rating 0.35 A _x000D_
- Backlight Wattage 4.83 W _x000D_
- Beam Pattern Driving/Combo _x000D_
- Bezel Material Powder Coat Cast Aluminum _x000D_
- Brightness 8857 Lumens _x000D_
- Description Driving/Combo; Amber; Pair _x000D_
- Housing Color Black _x000D_
- Housing Material Powder Coat Cast Aluminum _x000D_
- Lens Color Amber _x000D_
- Lens Material Hardcoated Polycarbonate _x000D_
- Light Quantity 2 _x000D_
- Lighting Modes Beam/Day-Time Running Backlighting _x000D_
- Lighting Quantity 4 _x000D_
- Lighting Technology LED _x000D_
- Lighting Type Forward Projecting _x000D_
- Mounting Hardware Included Yes _x000D_
- Mounting Hardware Material Stainless Steel _x000D_
- Standards Compliance Durability Exceeds MIL-STD810G (Mil-Spec Testing) _x000D_
- Standards Compliance Impact Resistance IK10 Compliant (Mechanical Impact Testing) _x000D_
- Standards Compliance Water Resistance IP69K (Waterproof up to 9ft & Pressure Washable) _x000D_
- Depth 3.2 Inches _x000D_
- Height 5.1 Inches _x000D_
- Length 5.1 Inches _x000D_
- Weight 2.8 Pounds _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Baja Designs |
| Bulb Type | LED |
| Light Shape | Square |
| Light Size | 5 to 5.75 Inch |
Description
High-Performance Lighting. The Baja Designs LP4 Pro LED Auxiliary Light Pods with Amber Backlight and Driving/Combo Beam are designed to provide robust illumination for off-road and auxiliary lighting applications. Delivering 8,857 lumens with a 200-degree light spread using Integrated Peripheral Technology (IPT), these lights offer enhanced forward and peripheral visibility, crucial for night driving and demanding trail conditions.
_x000D__x000D_Construction and Appearance. These light pods feature a durable black powder coat cast aluminum housing for corrosion resistance and rugged aesthetics. The lens is made from hardcoated polycarbonate to improve impact resistance, while stainless steel mounting hardware ensures a secure and long-lasting fit.
_x000D__x000D_Installation. Installation is straightforward with included mounting hardware and wiring harness, allowing easy integration into existing electrical systems without requiring complex modifications or drilling.
_x000D__x000D_Warranty. These lights come with a limited lifetime warranty, offering extensive purchase protection.
_x000D__x000D_Application. Designed for universal fitment, these light pods may require some adaptation for optimal installation and are compatible with a wide range of vehicles.
Baja Designs 297813
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box

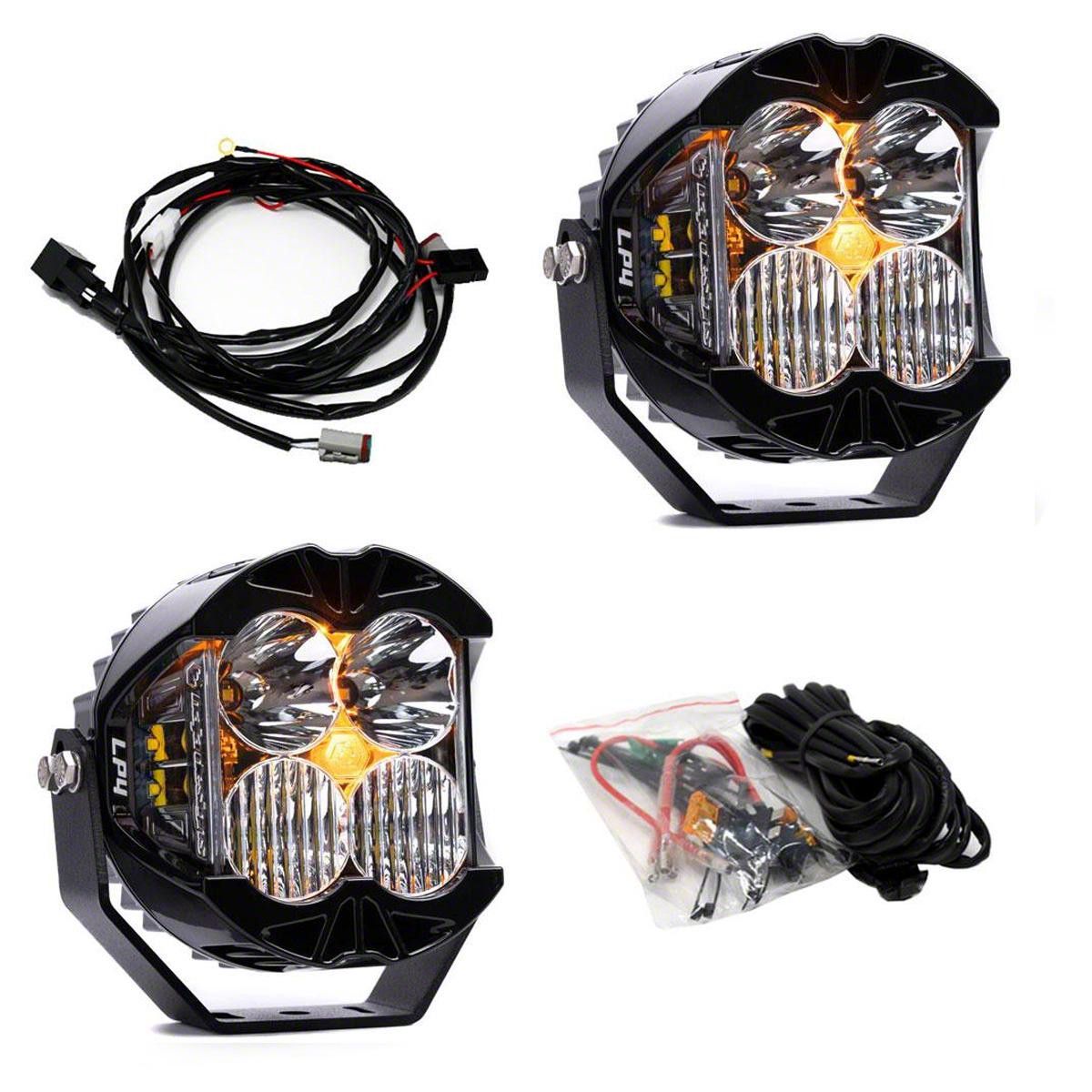

- (2) LED Lights
