2014-2023
1984-2001
Installation Time
(approx) 1 Hour
Difficulty Level:
Light to Moderate mechanical skill required.
FREE 1 to 3-Day Delivery on Orders $149+ Details
Find Auxiliary Lighting for your Cherokee

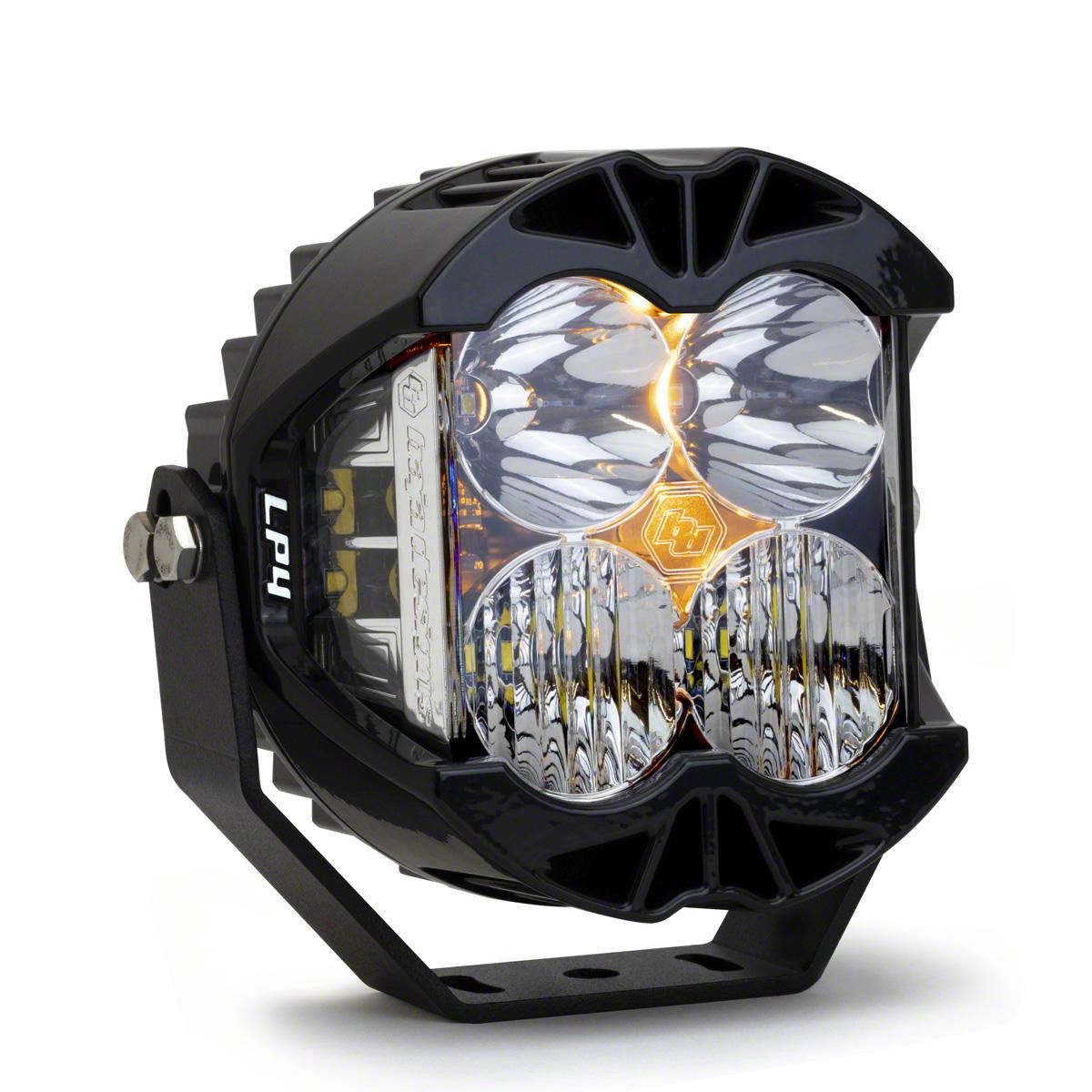

Baja Designs LP4 Pro LED Auxiliary Light Pod with Amber Backlight; Spot Beam; Clear (Universal; Some Adaptation May Be Required)
Item XJ12485
Our Price
$481.75 each
Military, Medical & First Responders
$24.09 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Lens Color Clear _x000D_
- Lens Material Hardcoated Polycarbonate _x000D_
- Light Quantity 1 _x000D_
- Lighting Modes Beam Day-Time Running Backlighting _x000D_
- Lighting Quantity 4 _x000D_
- Lighting Technology LED _x000D_
- Lighting Type Forward Projecting _x000D_
- Mounting Hardware Included Yes _x000D_
- Mounting Hardware Material Stainless Steel _x000D_
- Overvoltage Protection Built-In _x000D_
- Product Type LP4 Pro LED Light Pod _x000D_
- Secondary Amperage Rating 1.000 Amps _x000D_
- Secondary Brightness 1972 Lumens _x000D_
- Secondary Light Quantity 4 LEDs _x000D_
- Secondary Lighting Technology LED _x000D_
- Secondary Lighting Type Integrated Peripheral Technology IPT _x000D_
- Secondary Wattage 15 Watts _x000D_
- Terminal Connector DT06-4S Deutsch _x000D_
- Terminal Type Mating Connector _x000D_
- Wattage 75.900 Watts _x000D_
- Amperage Rating 5.500 Amps _x000D_
- Average Rated Life 49,930 Hours _x000D_
- Backlight Amperage Rating 0.350 Amps _x000D_
- Backlight Wattage 4.830 Watts _x000D_
- Beam Pattern Spot _x000D_
- Bezel Material Powder Coat Cast Aluminum _x000D_
- Brightness 8857 Lumens _x000D_
- Description Spot Clear _x000D_
- Housing Color Black _x000D_
- Housing Material Powder Coat Cast Aluminum _x000D_
- Standards Exceeds MIL-STD810G Mil-Spec Testing _x000D_
- Impact Resistance IK10 Compliant Mechanical Impact Testing _x000D_
- Water Resistance IP69K Waterproof up to 9ft Pressure Washable _x000D_
- Depth 3.200 Inches _x000D_
- Height 5.100 Inches _x000D_
- Length 5.100 Inches _x000D_
- Weight 2.800 Pounds _x000D_
- Fits Universal Some Adaptation May Be Required _x000D_
| Brand | Baja Designs |
| Bulb Type | LED |
| Light Shape | Square |
| Light Size | 5 to 5.75 Inch |
Description
Advanced LED Auxiliary Lighting. The Baja Designs LP4 Pro LED Auxiliary Light Pod with Amber Backlight and Spot Beam in Clear lens delivers powerful, focused illumination for off-road or auxiliary lighting needs. Designed to produce a bright spot beam with integrated peripheral lighting, it significantly improves night visibility and safety.
_x000D__x000D_Construction and Appearance. Featuring a durable powder-coated cast aluminum housing and a hardcoated polycarbonate lens, this light pod offers superior resistance to impact and harsh environmental conditions. The black finish combines with a sleek, modern design to create an aggressive yet functional appearance.
_x000D__x000D_Installation. Installation is straightforward, typically requiring only basic mounting without extensive modifications. No drilling is usually necessary, making it accessible for both enthusiasts and professional installers.
_x000D__x000D_Warranty. This product comes with a lifetime limited warranty, providing long-term protection and confidence in performance.
_x000D__x000D_Application. Designed to fit universal applications with some adaptation required, making it suitable for a wide range of vehicles and setups.
Baja Designs 290001
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) LED Auxiliary Light Pod
