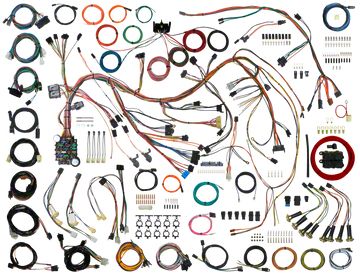

American Autowire Classic Update Wiring Harness Kit (84-90 Jeep Cherokee XJ)Find parts that fit my vehicle

Item XJ24411
Product Image
$0.00
Our Price

$2,564.05 kit

Military, Medical & First Responders $128.20 Available in XT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

      • American Autowire Classic Update Wiring Harness Kit
      • Fully Assembled Dash Harness With Transmission-Specific Backup and Neutral Safety Connections
      • Fuse Box and Bulkhead Assembly Supports Stock and Aftermarket Accessories
      • Direct Plug-In for 1984 to 1990 XJ Steering Columns
      • Includes Adapter and Terminal Set for Most Aftermarket Steering Columns
      • Supports Factory and Aftermarket Heat and Air Conditioning Systems
      • Includes Terminals and Connectors for Factory Instrument Clusters
      • Plug-and-Play Heater, Wiper/Washer Switch, Blower Resistor, and Motor Connections
      • Supports All Factory Four-Wheel Drive Options
      • Includes Headlight, Turn Signal, Side Marker, Stop/Tail, and Backup Lamp Sockets
      • Engine Compartment Wiring Includes Coil, Tach, Water Temperature, Oil Pressure, Electric Choke, Starter Solenoid, Electric Fuel Pump, and Alternator Exciter Feed
      • Supports Factory V6 HEI and GM Large Cap HEI
      • Compatible With Standalone EFI and Engine Swaps (Factory Engine Management Wiring Not Included)
      • High-Powered Six Gauge One-Wire Alternator Connection With Mega-Fuse Protection
      • Includes Headlight, Parking/Directional Light, Side Marker Light Pigtails, and Brake Warning Differential Circuits
      • Switched Trigger Wire for Electric Fan
      • Includes Wire Routing Clips, Pass-Thru Grommets, Terminals, and Connectors
      • Flexible Sub-Harnesses With Extra Lengths for Custom Routing
      • Minimal to No Splicing Required
      • Made in the United States
      • Hard Installation
      • Fits 1984 to 1990 Jeep Cherokee XJ

      Description

      Complete Modern Wiring Solution. The American Autowire Classic Update Wiring Harness Kit brings modern electrical reliability to your classic Jeep Cherokee XJ. Designed specifically for 1984 to 1990 models, this all-in-one wiring system supports both stock and aftermarket upgrades, including lighting, HVAC, steering columns, and even EFI conversions. It replaces aging factory wiring with a robust, modular system built for performance and ease of use.

      Construction and Appearance. This U.S.-made kit includes a pre-assembled dash harness, fuse box with bulkhead, and flexible sub-harnesses that provide additional length for custom routing. It features OEM-style connectors, labeled circuits, and high-quality terminals for minimal splicing. The entire system is designed to maintain compatibility with factory 4WD systems, lighting, instrumentation, and more—while adding support for high-powered alternators, electric fans, and modern accessories.

      Installation. Installation is considered hard and requires electrical knowledge or professional experience. Though it's engineered for plug-and-play connections with many factory components, routing and adapting circuits—especially for custom builds or EFI setups—requires careful planning and execution.

      Application. This American Autowire Classic Update Wiring Harness Kit fits 1984 to 1990 Jeep Cherokee XJ.

      American Autowire 510872

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 6 Hours

      Difficulty Level:

      Mechanical expertise or professional installation required.

      Installation Guides

        No guide available for this part yet.

      What's in the Box

      • (1) Complete Dash Wiring Harness
      • (1) Fuse Box And Bulkhead Assembly
      • (1) Front Light Harness With Sockets
      • (1) Engine Compartment Harness
      • (1) High-Powered Alternator Cable With Mega-Fuse
      • (1) Set Of Sub-Harnesses
      • (1) Set Of Routing Clips And Grommets
      • (1) Set Of Terminals And Connectors
      • (1) Installation Manual
