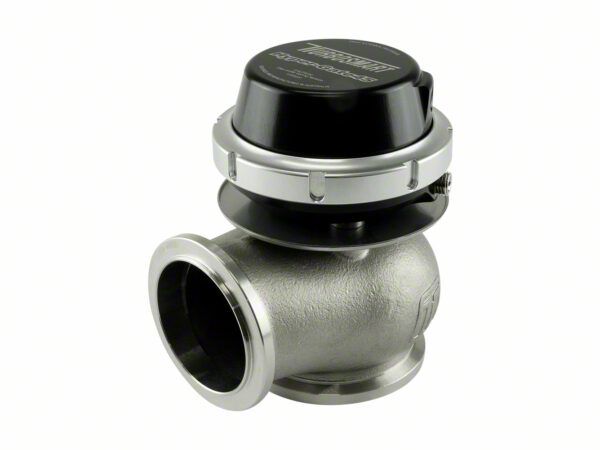

Turbosmart Gen4 HyperGate45 External Wastegate; 14 PSI; Black (Universal; Some Adaptation May Be Required)
Item BS1090
Our Price
$468.89 each
Military, Medical & First Responders
$23.44 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- _x000D_
- 4th Generation External Wastegate Designed For 45mm Valve Size _x000D_
- Suitable For Pump Fuel And E85 Applications _x000D_
- Offers Excellent Flow And Heat Management Characteristics _x000D_
- V-Band Inlet And Outlet For 44mm And 46mm Peer Flange Compatibility _x000D_
- Unique Locking Collar Design For Secure Assembly And Vibration Resistance _x000D_
- Constructed From Stainless Steel Cast Body With Aluminium Actuator Housing _x000D_
- Capable Of Fitting Springs From 3 To 26 PSI _x000D_
- Solid Stainless Steel Valve Piece _x000D_
- Features Proprietary High-Temperature Silicon Nomex Diaphragm _x000D_
- Equipped With Twin 1/16” NPT Reference Ports _x000D_
- Includes Gen4 Stainless Steel Valve Seat, V-Band Clamps, Weld Flanges, Locking Collar Tool, 1/16” NPT Blanking Plugs, And 1/16” Nipples (5mm) _x000D_
- Hand Assembled And Individually Tested Before Shipping _x000D_
- Manufactured In Australia By Experienced Engineers _x000D_
- Price Reduced For Improved Accessibility _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
Description
_x000D__x000D_
HIGH-PERFORMANCE EXTERNAL WASTEGATE. The Turbosmart Gen4 HyperGate45 External Wastegate is engineered to control exhaust gas flow and regulate boost pressure in turbocharged engines. It enhances performance by diverting excess exhaust gases away from the turbine wheel, ensuring consistent boost pressure and protecting the engine from damage. Designed with street use in mind, this wastegate is compatible with both pump gasoline and E85 fuels.
_x000D__x000D_CONSTRUCTION AND APPEARANCE. Featuring a durable stainless steel cast body alongside an aluminium actuator housing, this unit offers strength and excellent resistance to heat and corrosion. The proprietary high-temperature silicon Nomex diaphragm ensures reliability under high thermal stress. The black anodized finish delivers a sleek appearance while resisting discoloration in demanding engine bay conditions.
_x000D__x000D_INSTALLATION. Installation is straightforward for users with mechanical experience, requiring no drilling when paired with compatible peer flange manifolds. The included locking collar tool enables safe and secure spring replacement, providing strong vibration resistance and a reliable fitment.
_x000D__x000D_APPLICATION. Fits universal; some adaptation may be required.
Turbosmart TS-0506-1041
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) External Wastegate
- Mounting Bracket
- Hardware
- Instruction Manual
