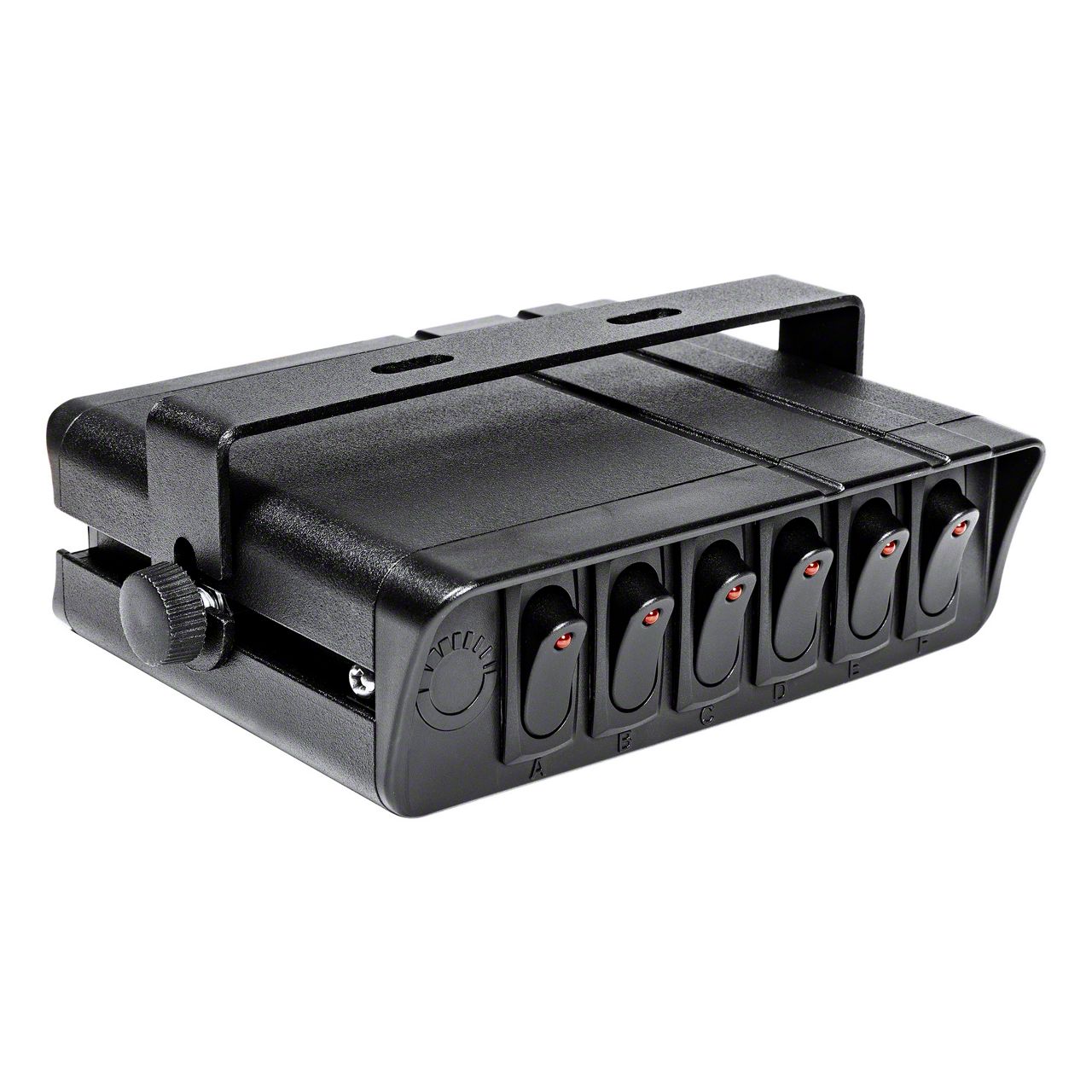

True Mods 6-Way SPST Switch Box; 40 Amp (Universal; Some Adaptation May Be Required)

Item BS9505
Product Image
Our Price

$47.99

Military, Medical & First Responders $2.40 Available in XT Cash Rewards.
Confirm Eligibility
Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

      • 6-Way SPST ON/OFF Switch Box
      • Supports Max 15 Amp Per Switch
      • Total Box Max 40 Amp (2 x 20 Amp Circuits)
      • Thick Gauge Color-Coded Wires for Easy Identification
      • Durable Aluminum Housing
      • Low Profile Mounting Bracket
      • Includes Wire Labels, Bolts, Screws, and Mounting Bracket
      • Red Backlit Rocker Switches
      • Operating Temperature Range: -20°C to +85°C
      • IP50 Rated Protection Against Dust
      • 1 Year Warranty
      • Connector Type: Pigtail
      • Switch Type: Rocker, Single Throw (SPST)
      • Tinned Copper Terminals with Wire Leads for Reliable Conductivity
      • Dielectric Strength AC 1500V for 1 Minute
      • Contact Resistance Less Than 50 Milliohm
      • Insulation Resistance Greater Than 100 Megaohm at 500V DC
      • Dimensions: Length 5.38 In, Width 6.50 In, Height 1.63 In
      • Fits Universal Applications; Some Adaptation May Be Required

      Description

      HIGH-CAPACITY SWITCHING. The True Mods 6-Way SPST Switch Box; 40 Amp is engineered to provide reliable on/off control for up to six independent DC circuits. It is an ideal solution for automotive and off-road applications, allowing users to efficiently and safely power multiple aftermarket devices such as lighting, compressors, and warning systems.

      CONSTRUCTION AND APPEARANCE. Built with a rugged aluminum housing and equipped with thick gauge, color-coded wires, this switch box ensures durability and straightforward installation. The unit features a low-profile mounting bracket and red backlit rocker switches, combining functionality with a sleek, professional design.

      INSTALLATION. Installation is simplified by the user-friendly design which includes color-coded and labeled wires corresponding to each switch. The setup does not require advanced wiring skills, although drilling may be necessary depending on the mounting location.

      WARRANTY. This switch box is backed by a 1-year warranty covering manufacturing defects and quality concerns.

      APPLICATION. Designed for universal compatibility; some adaptation may be needed depending on specific vehicle configurations or use cases.

      True Mods ACCEPSSWH0082
