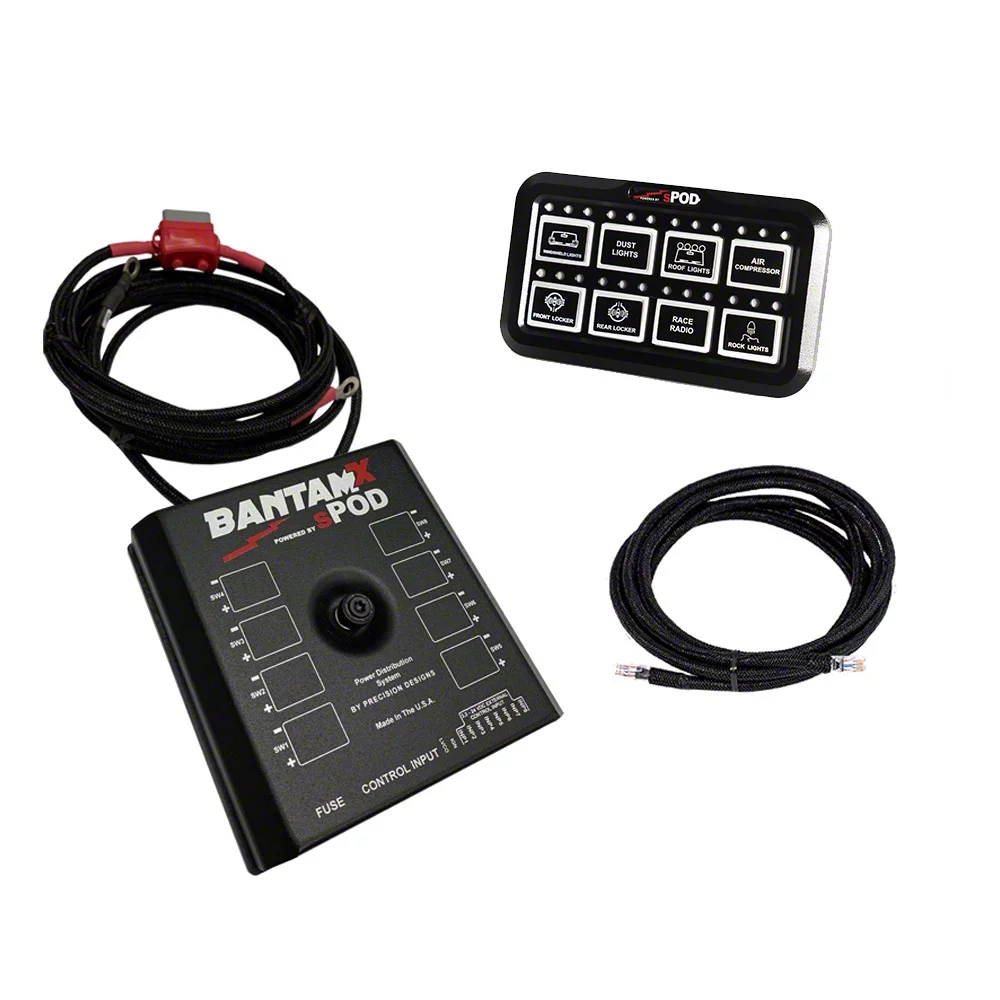

sPOD BantamX HD with 36-Inch Battery Cables (Universal; Some Adaptation May Be Required)
Item BS5079
Our Price
$1,006.50
Military, Medical & First Responders
$50.33 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- Fully Programmable Digital Controlled System
- Eight Circuits Rated At 30 Amps At 12.5 VDC Per Circuit
- Sixteen Position Terminal Block For Easy Accessory Attachment
- Two Controller Ports (RJ45) For Ethernet Cables
- Integrated Low Voltage Cutoff Battery Protection With Optional Override
- One ATM Mini Style Fuse For LVCO Protection And Reset
- Failsafe Self Healing Fault Protection System From 1.5 To 30 Amps
- Current Sensing MOSFETs Controlled By Microprocessor With No Fuses Or Relays
- One Hundred Amp Inline Fuse
- Nylon Braided Battery Cables Made From Hi Strand Crosslinked Copper Wire With Silicone Jacket
- Operates On 12VDC Or 24VDC
- Eight Position Input Terminal Block For Controlling Outputs
- Built In Bluetooth Capabilities For Remote Control
- Protection Against Overheating, Overcurrent, Shorts, Reverse Polarity And Field Collapse
- Ignition Control And Safety Lockout For Switches One And Two (Optional)
- On Demand Wireless Software Updates And Upgrades
- Aluminum Billet Machined Housing For HD Control Panel With Powder Coated Black Finish
- Silicone Buttons Providing Positive Tactile Feedback
- Compact HD Control Panel Smaller Than An iPhone
- Standard Universal Mounting Options For HD Control Panel Including Articulating Mount
- Ten Foot CAT-6 Ethernet Cable Supplied With HD Panel
- HD Panel Can Be Located Up To Twenty Five Feet From Source Using Standard CAT-6 Cable
- HD Panel Includes RGB Backlit Switches With Programmable Light Intensity And Color
- Three Levels Of Secured Or Open Bluetooth Pairing And Connectivity
- Legends Included With HD Control Panel For Switch Identification
- Expandable With Additional HD Smart Controllers For Multiple Locations
- Fits Universal; Some Adaptation May Be Required
Description
Advanced Power Management. The sPOD BantamX HD with 36-Inch Battery Cables is a fully programmable 8-circuit digital control system designed to simplify the wiring and management of 12/24VDC vehicle accessories. It enables users to power and control their aftermarket electronics efficiently with a single Ethernet cable connection to the cab, reducing installation time and complexity while offering extensive customization and safety features.
Construction and Appearance. This system features a durable aluminum billet machined housing for the HD control panel with a sleek powder-coated black finish. The battery cables are crafted from high-strand crosslinked copper wire with a nylon braided silicone jacket for optimal durability and resistance to harsh environments. The compact, weatherproof design ensures the system withstands rugged automotive use while delivering a professional aesthetic.
Installation. Installation of the BantamX HD system is straightforward with no need for cutting or tapping into the vehicle’s existing electrical system, making it accessible for professional installers and enthusiasts alike. The control panel offers universal mounting options with included hardware and requires only basic tools, typically without the need for drilling.
Warranty. This product is backed by the manufacturer's warranty term.
Application. Fits universal applications; some adaptation may be required depending on the vehicle setup and accessory configuration.
sPOD BXHDUNI36
