Description. HP10472-QM Wireless Controls features
Military grade solenoids Designed to withstand extreme environments.
Waterproof and debris resistant Demand a Pacbrake IP67 rated controller.
Don't experience the irreparable debris clogs of other leading products! Our compressor has accessible components that allow easy serviceability and replacement of parts.
Smarter App An easy to use app that reads real time pressure feedback within each air spring and provides more of the data you need. The app has 3 built-in memory presets so you can quickly achieve your desired air spring pressure.
Faster Fills Up to 10% faster than the leading competition.
Ultra Easy Install Pre-installed push-to-connect air fittings and pre-assembled wiring connectors reduce installation time.
Pacbrake Wireless Controls are a universal fit. They fit the frame of any vehicle, work with any air spring on the market. They can also be easily installed with common mechanic tools - no lines or wires to the cab and no drilling required!
The kit comes with everything required for install:
Air compressor, controller, solenoid block, pressure sensors and harnesses
Free Phone app (For use with Android 4.3+ or Apple iOS 10.3+ mobile device)
Air lines, pressure connectors and mounting hardware
HP10472-QM Wireless Controls come with 2 year warranty
Refer warranty terms and conditions for additional details.
Product Specifications:
MAX WORKING PRESSURE / DUTY CYCLE
827.4 kPa [120 psi], 9% @ 689.5 kPa [100 psi]
MAX CONTINUOUS RUN TIME
5 Minutes ON / 55 Minutes OFF
RATED FLOW
29 L/min [1.02CFM] @ 0kPa [0 psi]
INDEPENDENT / SIMULTANEOUS FILL
Simultaneous
INGRESS PROTECTION
IP55 Compressor, IP67 Electric Connectors
WEIGHT
1.09 kg [2.41 lbs]
AMBIENT OPERATING TEMPERATURE RANGE
-40ºC to +70ºC [-40ºF to +158ºF]
NOMINAL SUPPLY VOLTAGE 12 VDC MAX CURRENT DRAW
11 Amps

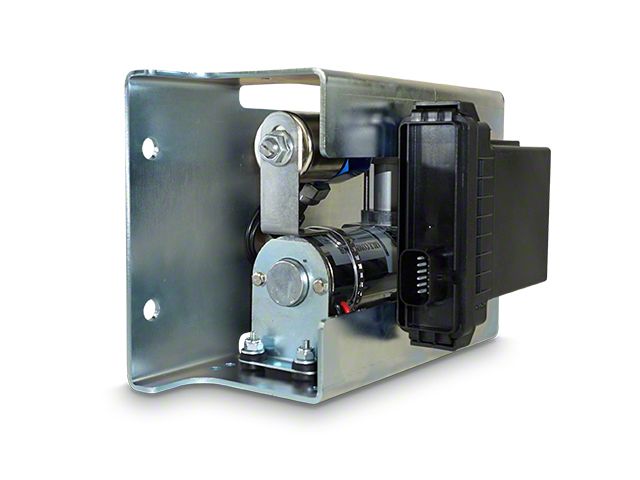

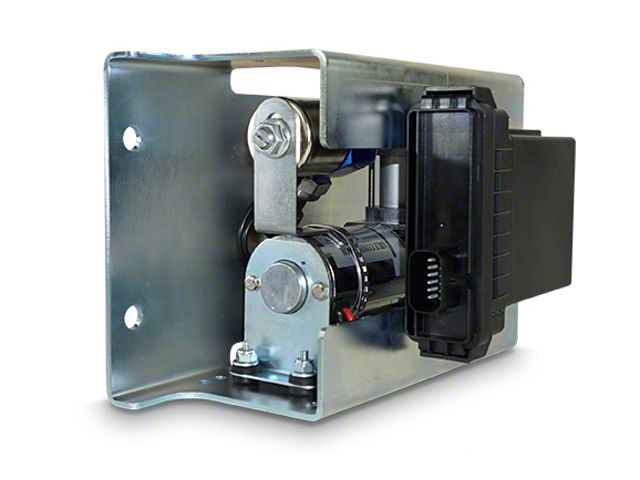

Pacbrake HP10472-QM
