Find Fuel System for your Bronco Sport

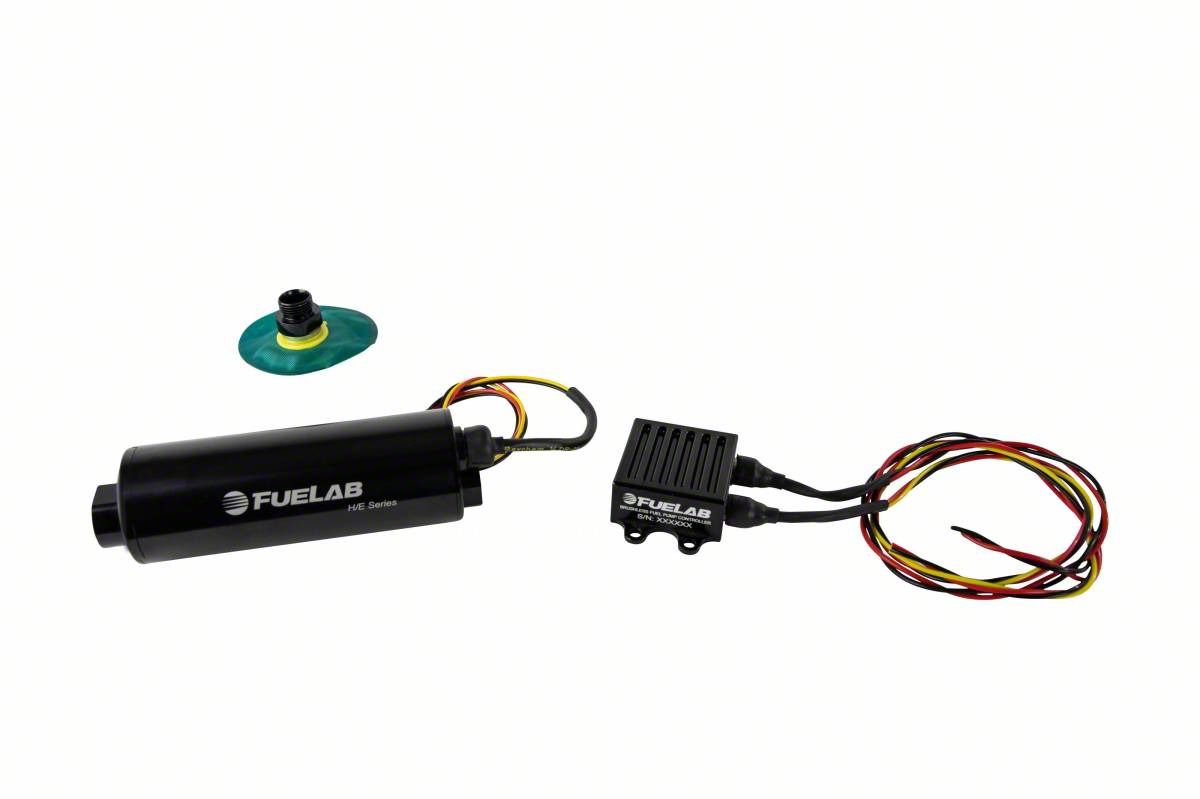

Fuelab In-Tank Twin Screw Brushless Fuel Pump Kit; -8AN; 300 LPH (Universal; Some Adaptation May Be Required)
Item BS9538
Our Price
$1,154.00
Military, Medical & First Responders
$57.70 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- In-Tank Fuel Pump Kit Contains 300LPH Twin Screw Brushless Pump, Remote Mount PWM Controller, and 65 Micron Straining Filter _x000D_
- Compatible With Gasoline, Diesel, Methanol, and Ethanol _x000D_
- Twin Screw Rotor Pumping Mechanism _x000D_
- 125 PSI Max Operating Pressure _x000D_
- Supports Up to 625 HP at Continuous Speed with Pump Gas (Naturally Aspirated) _x000D_
- Higher Efficiency Means Less Current Draw and Lower Noise Levels _x000D_
- Superior Priming Capabilities _x000D_
- Greater Resistance to Cavitation and Vapor Lock _x000D_
- Limited Lifetime Warranty _x000D_
- Lightweight Super-Efficient DC Brushless Motor to Minimize Current Draw _x000D_
- Powerful High Flux Density Neodymium Rare Earth Magnets _x000D_
- No Motor Brushes to Wear Out or Corrode; Compatible with Low-Sulfur Diesel _x000D_
- Wet Motor Design with No Dynamic Shaft Seals That Can Wear Out _x000D_
- Compatible with 12 to 16 Volt Vehicle Electrical Systems _x000D_
- Model 72004 Pump Controller Included for Full Speed PWM or 0-5V Input Speed Control _x000D_
- Continuous Duty Motor Speed _x000D_
- Compact Lightweight Design, Weighing Less Than 3 lbs _x000D_
- Billet Aluminum Construction with Anodizing per MIL-A-8625 Type II _x000D_
- Long-Life Multi-Fuel Compatible Fluorosilicone Static Seals _x000D_
- Accepts Standard or Port Style -8AN Fittings _x000D_
- Compatible with Most Aftermarket ECUs with PWM Output Frequency _x000D_
- Compatible from 100 Hz to 5000 Hz PWM Frequencies _x000D_
- Fits Universal Applications; Some Adaptation May Be Required _x000D_
Description
High-Performance Fuel Delivery. The Fuelab In-Tank Twin Screw Brushless Fuel Pump Kit -8AN 300 LPH is engineered to deliver efficient and reliable fuel flow for high-performance and multi-fuel setups. Featuring a twin screw rotor mechanism and a brushless DC motor, this pump supports up to 625 horsepower at continuous speed using pump gas (naturally aspirated), ensuring consistent fuel delivery while minimizing the risk of cavitation or vapor lock. It is compatible with gasoline, diesel, methanol, and ethanol fuels.
_x000D__x000D_Construction and Appearance. This fuel pump offers a compact and lightweight design, weighing less than 3 pounds. Constructed from billet aluminum with an anodized finish conforming to MIL-A-8625 Type II standards, it provides excellent durability and corrosion resistance. The fluorosilicone static seals provide long service life and multi-fuel compatibility. The motor incorporates high flux density Neodymium rare earth magnets that enhance efficiency and reduce current draw.
_x000D__x000D_Installation. Installation of this in-tank fuel pump kit requires moderate mechanical skill and typically does not involve specialized drilling. The included remote mount PWM controller supports easy integration with vehicle electrical systems, allowing full-speed PWM or 0-5V input speed control.
_x000D__x000D_Warranty. The product comes with a limited lifetime warranty, offering long-term peace of mind.
_x000D__x000D_Application. This fuel pump kit is designed for universal fitment, though some adaptation may be necessary for specific vehicle installations.
Fuelab 20811
