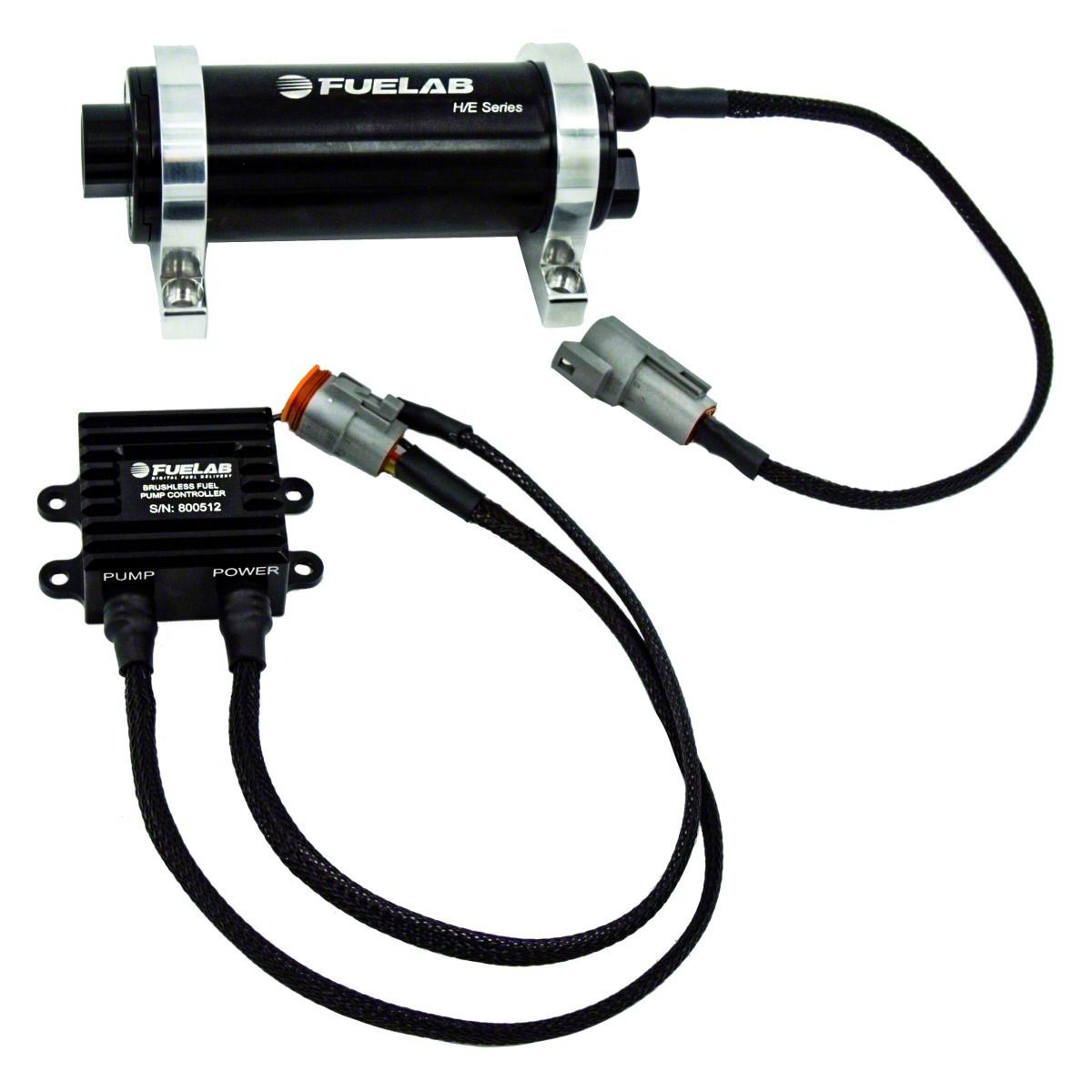

Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump; -8AN; 1100 LPH (Universal; Some Adaptation May Be Required)
Item BS9562
Our Price
$1,574.00
Military, Medical & First Responders
$78.70 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- High Efficiency EFI In-Line Fuel Pump Rated Up To 2800 HP for Street and Strip Applications _x000D_
- Limited Lifetime Warranty _x000D_
- To Be Used With 595 Series Fuel Pressure Regulators With .328" Orifice Or Larger _x000D_
- 1100 LPH @ 45 PSI, 125 PSI Max Operating Pressure, 13.5V Rated Up To 2800 HP for Massive Power Support _x000D_
- Compatible With Gasoline, Diesel, Methanol, and Ethanol _x000D_
- Twin Screw Rotor Pumping Mechanism for Superior Priming and Efficiency _x000D_
- Higher Efficiency Means Less Current Draw and Noise _x000D_
- Greater Resistance To Cavitation and Vapor Lock _x000D_
- Lightweight, Super-Efficient DC Brushless Motor to Minimize Current Draw _x000D_
- Powerful High Flux Density Neodymium Rare Earth Magnets _x000D_
- No Motor Brushes to Wear Out or Corrode _x000D_
- Wet Motor Design With No Dynamic Shaft Seals to Wear Out _x000D_
- Compatible With 12 to 16 Volt Vehicle Electrical Systems _x000D_
- Model 72006 Pump Controller Included for Full Speed or PWM Input Speed Control _x000D_
- Continuous Duty Motor Speed _x000D_
- Compact, Lightweight Design: Less Than 3 Lbs, Overall Length 7.13”, Diameter 2.0” _x000D_
- Billet Aluminum Construction With Anodized Finish per MIL-A-8625 Type II _x000D_
- Includes Two Billet Aluminum Mounting Brackets _x000D_
- Long Life Multi-Fuel Compatible Fluorosilicone Static Seals _x000D_
- Accepts Standard or Port Style -8AN Fittings _x000D_
- Fits Universal Applications; Some Adaptation May Be Required _x000D_
Description
High-Performance Fuel Pump. The Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump (-8AN; 1100 LPH) is engineered to provide superior fuel delivery for high horsepower engines up to 2800 HP. It supports gasoline, diesel, methanol, and ethanol, offering versatility and reliability for street and strip applications. This pump ensures stable fuel pressure under demanding conditions, enhancing engine performance and fuel system efficiency.
_x000D__x000D_Construction and Appearance. Made from billet aluminum with a durable anodized finish per MIL-A-8625 Type II, this pump features a compact and lightweight design weighing less than 3 lbs. The internal twin screw rotor mechanism combined with powerful high flux density neodymium rare earth magnets delivers high efficiency with minimal noise and current draw. The pump also utilizes long-life, multi-fuel compatible fluorosilicone static seals to ensure exceptional durability.
_x000D__x000D_Installation. Installation is straightforward with included billet aluminum mounting brackets. The pump is compatible with standard or port style -8AN fittings, and typically requires no drilling. This makes it suitable for both professional installers and enthusiasts seeking a reliable fuel delivery upgrade without extensive modification.
_x000D__x000D_Warranty. The pump is backed by a limited lifetime warranty, providing confidence in its long-term performance and durability.
_x000D__x000D_Application. Designed for universal fitment with some adaptation recommended depending on specific vehicle and fuel system configurations.
