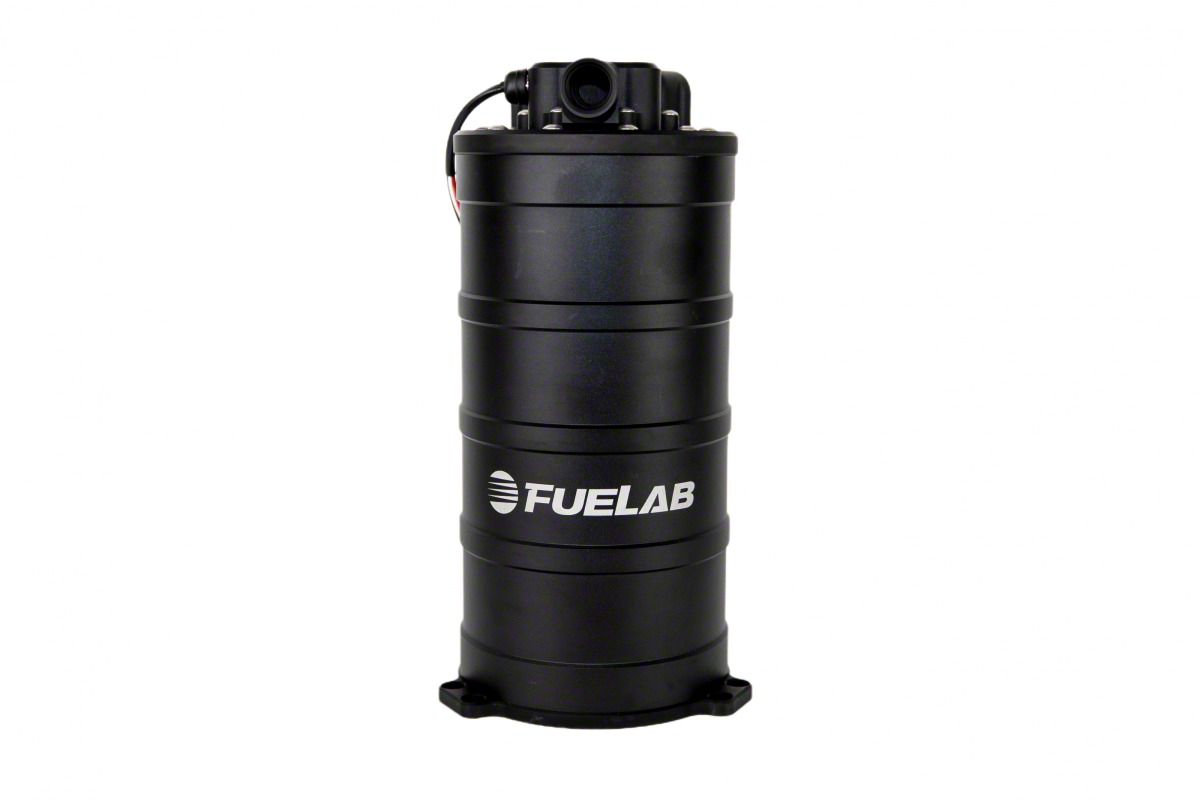

Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump; 850 HP; 290mm Tall (Universal; Some Adaptation May Be Required)

Item BS9584
Product Image
1 Reviews of Fuelab
Our Price

$1,679.00

Military, Medical & First Responders $83.95 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

        _x000D_
      • H/E Series 290mm Tall Fuel Surge Tank System with 850 HP SAE Plate Mount Brushless Twin Screw Pump
        • _x000D_
      • Limited Lifetime Warranty
        • _x000D_
      • 2.7L Fuel Surge Tank System with Speed Controllable Twin Screw DC Brushless Fuel Pump
        • _x000D_
      • Rated to Flow 400LPH at 45PSI, 125PSI Max
        • _x000D_
      • Integrated Controller with PWM Speed Control
        • _x000D_
      • Billet Aluminum and O-Ring Construction Using -8AN Fuel Ports
        • _x000D_
      • Compatible with Pump and Racing Gasoline and E85
        • _x000D_
      • Return Line Required, Returns Excess Fuel Back to the Vehicle Fuel Tank
        • _x000D_
      • Optional FST Upgrade Accessory Kits Sold Separately
        • _x000D_
      • Compatible with Most Aftermarket ECUs with PWM Output Frequency from 100Hz to 5000Hz
        • _x000D_
      • Fits Universal Applications; Some Adaptation May Be Required
        • _x000D_

      Description

      High-Performance Fuel Management. The Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump, rated for 850 HP and featuring a 290mm tall tank, is designed to provide a consistent, high-flow fuel supply while preventing fuel sloshing in the tank. It ensures your engine receives a steady volume of fuel during high-demand situations, making it ideal for performance vehicles and racing applications.

      _x000D_

      Construction and Appearance. This fuel surge tank features billet aluminum construction with O-ring seals and -8AN fuel ports, ensuring durability and leak-free performance. The compact 290mm tall design allows for easy installation, while the brushless DC twin screw pump operates quietly and reliably with an integrated PWM controller for precise speed control.

      _x000D_

      Installation. Installation is straightforward and typically requires minimal modifications to the original equipment fuel tank and module. No major drilling is needed, but some adaptation may be required based on the specific vehicle setup.

      _x000D_

      Warranty. This product is backed by a limited lifetime warranty to ensure long-term reliability and customer satisfaction. Application. Designed for universal fitment; some adaptation may be necessary.

      Fuelab 61712
