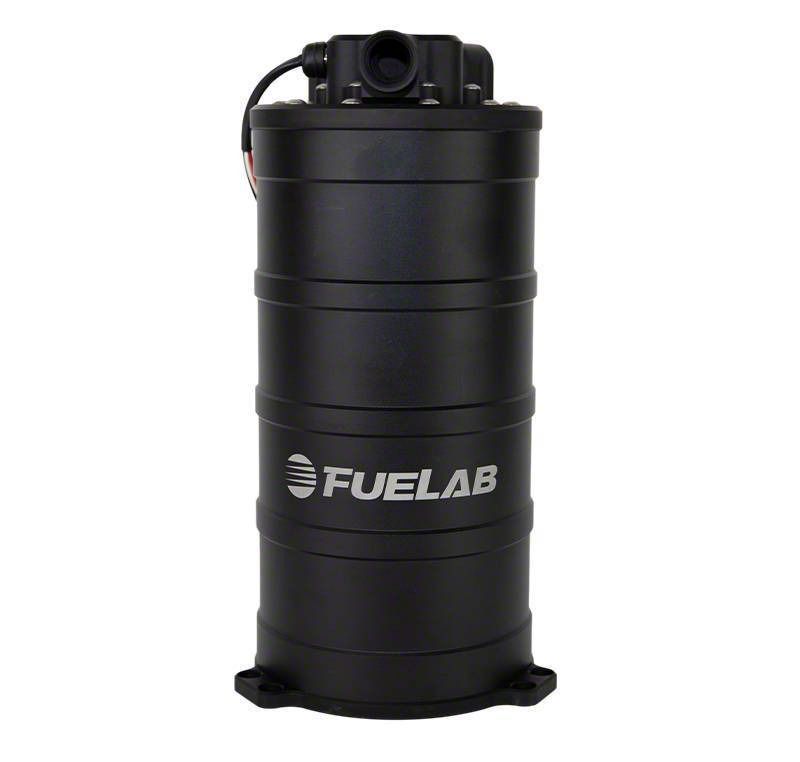

Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump; 1500 HP; 290mm Tall (Universal; Some Adaptation May Be Required)

Item BS9585
Product Image
1 Reviews of Fuelab
Our Price

$1,784.00

Military, Medical & First Responders $89.20 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

        _x000D_
      • 2.7L Fuel Surge Tank System With Speed Controllable Twin Screw DC Brushless Fuel Pump
        • _x000D_
      • Rated To Flow 625LPH At 45PSI, Maximum Pressure 125PSI
        • _x000D_
      • Allows High Fuel Flow Output With Minimal Modifications To OE Fuel Tank And Module
        • _x000D_
      • Prevents Fuel Sloshing By Maintaining A Ready Volume Of Fuel
        • _x000D_
      • 290mm Tall
        • _x000D_
      • Integrated Controller With PWM Speed Control Compatible From 100Hz To 5000Hz
        • _x000D_
      • Billet Aluminum And O-Ring Construction Using -8AN Fuel Ports
        • _x000D_
      • Compatible With Pump Gasoline, Racing Gasoline, And E85
        • _x000D_
      • Return Line Required To Return Excess Fuel Back To Vehicle Fuel Tank
        • _x000D_
      • Optional FST Upgrade Accessory Kits Sold Separately
        • _x000D_
      • Backed By A Limited Lifetime Warranty
        • _x000D_
      • Compatible With Aftermarket ECUs Including AEM, ECU Masters, Fueltech, Haltech, Holley, Link Engine Management, Megasquirt
        • _x000D_
      • Fits Universal Applications; Some Adaptation May Be Required
        • _x000D_

      Description

      High Performance Fuel Surge Tank. The Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump is engineered to deliver consistent high fuel flow required in demanding applications up to 1500 HP. Standing 290mm tall, it eliminates fuel starvation during high-g maneuvers by maintaining a ready volume of fuel, ensuring stable delivery critical for peak performance and reliability in racing and high-output vehicles.

      _x000D__x000D_

      Durable Construction And Design. Built from billet aluminum with precision O-ring sealing, the system offers robust construction for long-lasting use. Its anodized finish resists corrosion and wear, providing sturdy fuel containment and delivery pathways with -8AN ports suitable for high-performance engine bays.

      _x000D__x000D_

      Simple Installation. Installation requires minimal modification to the original fuel tank and module, with no drilling necessary. The system integrates seamlessly with existing setups and requires a return fuel line for proper operation.

      _x000D__x000D_

      Warranty Coverage. This surge tank is backed by a limited lifetime warranty, reflecting confidence in its durability and performance.

      _x000D__x000D_

      Application. Designed for universal fitment, some adaptation may be needed for specific vehicle configurations.

      Fuelab 61714

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Tech Specs
