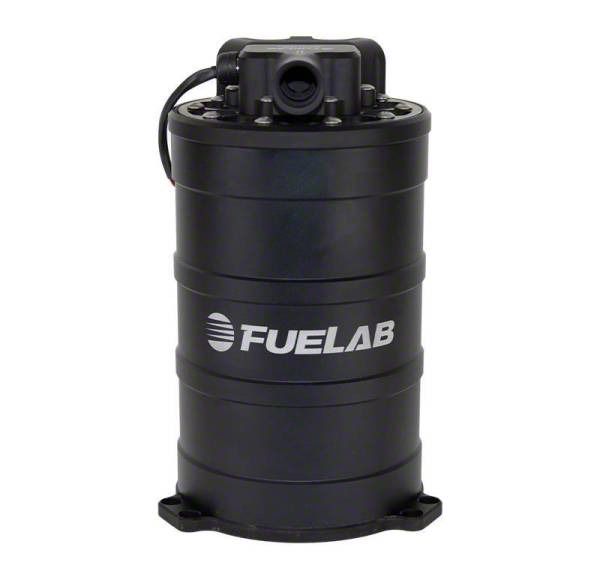

Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump; 1500 HP; 235mm Tall (Universal; Some Adaptation May Be Required)
Item BS9582
Our Price
$1,773.00
Military, Medical & First Responders
$88.65 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- _x000D_
- H/E Series 235mm Tall Fuel Surge Tank System with 1500 HP Brushless Twin Screw Pump with Speed Control _x000D_
- Limited Lifetime Warranty _x000D_
- 2.1L Fuel Surge Tank System With Speed Controllable Twin Screw DC Brushless Fuel Pump Rated at 625lph _x000D_
- Provides High Fuel Flow Output With Minimal Modifications To The Original Equipment Fuel Tank And Module _x000D_
- Prevents Fuel Sloshing By Maintaining A Ready Volume Of Fuel _x000D_
- 235mm Tall _x000D_
- FST Rated Volume: 2.1 L _x000D_
- Includes Single Twin Screw DC Brushless Fuel Pump _x000D_
- Rated To Flow 625lph At 45psi, With A Maximum Pressure Of 125psi _x000D_
- Integrated Controller With PWM Speed Control _x000D_
- Billet Aluminum Construction With O-ring Seals Using -8AN Fuel Ports _x000D_
- Compatible With Pump Gasoline, Racing Gasoline, And E85 _x000D_
- Return Line Required To Return Excess Fuel Back To Vehicle Fuel Tank _x000D_
- Optional FST Upgrade Accessory Kits Sold Separately _x000D_
- Compatible With Most Aftermarket ECUs Supporting PWM Output Frequency From 100Hz To 5000Hz _x000D_
- Universal Fit; Some Adaptation May Be Required _x000D_
Description
FUEL SURGE TANK SYSTEM. The Fuelab H/E Series Fuel Surge Tank System, standing 235mm tall, features a brushless twin screw pump rated for 1500 HP applications. It ensures consistent high fuel flow output for performance vehicles by maintaining a steady volume of fuel ready for immediate use, effectively preventing fuel sloshing. This system is critical for sustaining optimal fuel pressure and preventing fuel starvation during high-demand conditions in racing and high-performance engines.
_x000D__x000D_CONSTRUCTION AND APPEARANCE. Constructed from billet aluminum with O-ring sealed -8AN fuel ports, the surge tank offers a rugged, durable design. It includes a single speed-controllable twin screw DC brushless fuel pump rated for 625 lph at 45 psi, with a maximum pressure rating of 125 psi. The precision-machined finish combines durability with professional-grade aesthetics, ideal for racing and aftermarket applications.
_x000D__x000D_INSTALLATION. The system requires basic mechanical knowledge for installation and typically does not need major modifications to the original equipment fuel tank or module. A return line must be installed to direct excess fuel back to the vehicle’s fuel tank for proper operation.
_x000D__x000D_WARRANTY. This fuel surge tank system comes with a limited lifetime warranty, providing long-term reliability and peace of mind.
_x000D__x000D_APPLICATION. Designed for universal fitment, though some adaptations may be necessary depending on specific vehicle configurations.
Fuelab 61704
