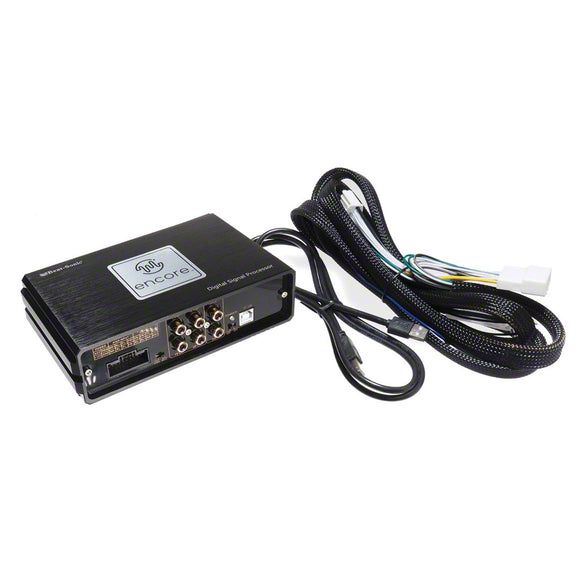

Beat-Sonic USA Encore X DSP Power Amplifier (20-26 Tundra w/o JBL Sound System)Find parts that fit my vehicle

Item TU52569
Product Image
1 Reviews
Our Price

$529.00

Military, Medical & First Responders $26.45 Available in XT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Reviews, Q&A

      Features

      • Compact Amplifier Seamlessly Installs To The Factory Stereo System Without The Need For Special Tools Or Wiring Modifications
      • Tuned Specifically With Our Signature Sound To The 2020-2026 Toyota Tundra Without JBL And With 6 Or 9 Speakers Cabin
      • Significantly Improves Sound Quality With Enhanced Clarity And Powerful Output Across Low, Mid, And High Frequencies
      • Experience High-Resolution Sound While Retaining Factory Speakers And Headunit
      • Utilizes Carefully Selected Acoustic Components Including High-Quality Electrolytic And Low Impedance Capacitors, And Extra Thick 70µ Copper Layers To Enhance All Frequencies From Low To High
      • Compact Size Allows Flexible Installation Locations Within The Vehicle
      • High-Quality FET Operational Amplifier Used For Input Sections To Preserve Fine Music Details
      • Reproduces Detailed Aspects Of Music, Including Artist's Voice And Breath Tones, At A High Resolution Level
      • Output Power: 4 X 45 Watts At 4O (14.4V)
      • Nominal Speaker Impedance: 4O
      • Amplifier Class: Class AB
      • Inputs: 4 X High Level Speaker Inputs
      • Outputs: 4 X Speaker Outputs, 6 X RCA (2.2V P-P)
      • Frequency Response: 20Hz–22kHz (+0/-1dB)
      • Signal To Noise Ratio: 105dB
      • Total Harmonic Distortion: 0.01%
      • DSP Resolution: 24bit
      • Sampling Rate: 48kHz
      • Crossover Options Include Bypass, Bandpass, Lowpass, Highpass
      • Crossover Types: Butterworth, Bessel, Linkwitz Riley With Various Slopes
      • Phase Control: 0/180 Degrees
      • Equalizer Frequency Range: 20Hz–22kHz With Up To 31 Bands
      • Equalizer Modes: Parametric And Graphic
      • Equalizer Bands Vary By Channel Count
      • Equalizer Adjustment Range: -15dB To +15dB
      • Q Factor Range: 0.3 To 50.0
      • Time Alignment Distance: 0 To 204cm (0 To 136cm For Subwoofer Or Center Speaker)
      • Time Alignment Time: 0 To 6ms (0 To 4ms For Subwoofer Or Center Speaker)
      • Time Alignment Increment: 0.021ms / 6.8mm
      • Storable Presets: 6
      • Remote Output: DC 12V Maximum 100mA
      • Power Requirements: DC 12V, Operating Voltage 10 To 15V
      • Max Current Draw: 15A, Quiescent Current 350mA
      • Fuse Size: 15A (f5.2×30mm)
      • Dimensions: 700mm X 103mm X 45mm
      • Weight: 625 Grams
      • System Requirements: Windows 7 Or Later, USB Type-A Connection
      • Fits 2020–2026 Toyota Tundra Without JBL Sound System

      Description

      Advanced DSP Amplifier. The Beat-Sonic USA Encore X DSP Power Amplifier enhances your factory audio system by delivering significantly improved sound clarity and powerful output across low, mid, and high frequency ranges. It provides high-resolution sound reproduction without requiring replacement of factory speakers or the head unit, offering an enriched listening experience tailored specifically for compatible vehicles.

      Construction and Appearance. This compact amplifier uses premium components such as high-quality electrolytic and low impedance capacitors, along with extra thick 70µ copper layers, to maximize signal fidelity across the full frequency range. A high-quality FET operational amplifier in the input section ensures delicate musical details are preserved. The sleek, compact design allows for flexible installation within the vehicle's interior.

      Installation. Installation is straightforward and user-friendly, requiring no special tools or modification of the factory wiring harness. The amplifier's compact size enables versatile placement within the vehicle, though exact positioning depends on the specific vehicle model.

      Warranty. This product is backed by a manufacturer warranty to protect against defects and ensure reliable long-term performance.

      Application. Designed exclusively for 2020–2026 Toyota Tundra models without JBL sound systems, this amplifier supports configurations with either 6 or 9 factory speakers. It is not compatible with vehicles equipped with JBL systems or other configurations beyond these specifications.

      Beat-Sonic USA ENX-T317

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      3.0

      Customer Reviews (1)

      Questions & Answers

      No questions about this product yet. Ask the First Question
