Find Winches Top Level for your 4Runner

Barricade 10,000 lb. Winch with Wireless Control (Universal; Some Adaptation May Be Required)Find parts that fit my vehicle

Item TR9245

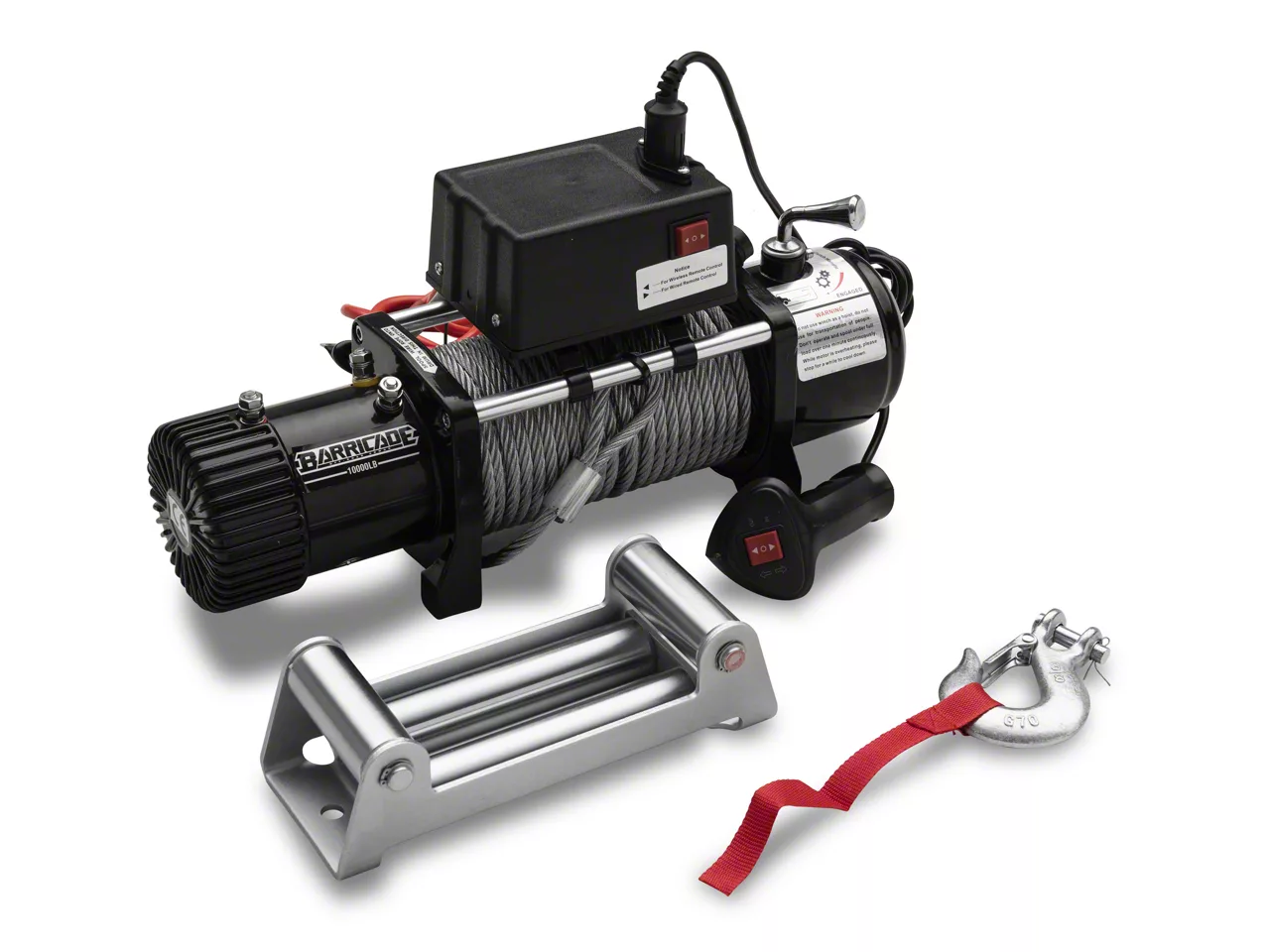

Barricade 10,000 lb. Winch with Wireless Control (Universal; Some Adaptation May Be Required)
Verify parts fit and get product recommendations.
4Runner Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
Our Price

$399.99

In Stock

Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Choose options to add to cart.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

      • 10,000 lb. Single-Line Pulling Rating
      • 5.5 HP 12-Volt Series Wound Electric Motor
      • Three Stage Planetary Gear with 195.8:1 Gear Ratio
      • 94 Foot, 2-1/64 Inch Steel Braided Cable
      • Wired Remote Switch with 12 Foot Lead
      • Wireless Remote Control Included
      • Durable Black Powder Coat Finish
      • Hook, Roller Fairlead, and Power Lead are Included
      • Overall Dimensions: 21.1 × 6.3 × 8.6 Inches
      • Mounting Bolt Pattern: 254mm X 114.3mm
      • Weight: 79.85 Pounds
      • Universal Application for all Vehicles

      Description

      Be Prepared For a Recovery Situation. It doesn't matter if you are a novice or a serious off-roader, you should take a page out of the Scouts hand book and "be prepared" for what the trail might throw at you. That's why you should outfit your 4Runner with a reliable recovery system like Barricade Off-Road's 10,000 lb Winch. This Barricade Winch will help you to get out of the messiest situations.

      Heavy Duty 10,000 LB Winch. This Barricade Off-Road Winch is driven by a powerful 5.5 HP series-wound 12-volt electric motor. Featuring a rugged 3-stage planetary gear box with a 195.8:1 gear ratio, this Barricade Winch provides 10,000 lbs of pulling power. Matched with a sliding ring gear clutch and a two-way automatic, in-the-drum braking system, you know you can always rely on this winch to hold your rig.

      Additional Features. This Barricade Off-Road 10,000 lb Winch features a 4-way roller fairlead that helps reduce wear and tear on the cable while keeping it from binding. This Barricade Winch includes both a wired remote control with a 12 foot lead and a wireless remote control allowing you to safely stand clear when in operation.

      Simple, Bolt-on Installation. Barricade engineered their winches to be a direct bolt-on upgrade that can be installed in under an hour using just basic hand tools. With overall dimensions of 21.1 × 6.3 × 8.6 inches and a mounting bolt pattern of 254mm X 114.3mm, there should be no drilling required for most applications. All necessary mounting hardware is included making this an easy straight forward installation.

      Application. This Barricade Off-Road 10,000lb Winch with Wireless Remote is designed for use on all Toyota 4Runner models. A battery with a minimum of 650cca (cold cranking amps) is required for operation.

      Line Pull Speeds
      • 0 lbs. - 16.5 ft./min
      • 2000 lbs. - 13.68 ft./min
      • 4000 lbs. - 11.55 ft./min
      • 6000 lbs. - 8.9 ft./min
      • 9500 lbs. - 6.43 ft./min

      Technical Note. To prevent damage to the cable from the elements a winch cover is highly recommended when not in use.

      Barricade U3147

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      What's in the Box

      • 10,000lb winch
      • 94 foot Braided Steel Cable
      • Roller Fairlead
      • Remote Control Lead
      • Wireless Remote Control
      • Solenoid
      • Wiring Harness
      • Rope Hook
      • Red Line Flag
      • Hardware
      4.5

      Customer Reviews (23)

      Questions & Answers

      No questions about this product yet. Ask the First Question
