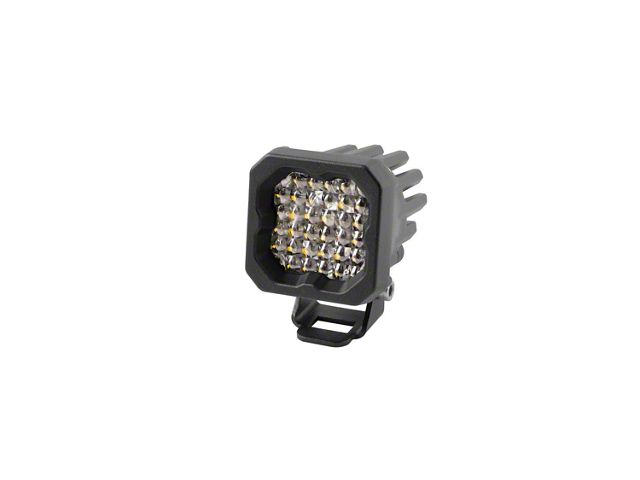

Diode Dynamics Stage Series C1R Standard LED Pod Light; White Flood (Universal; Some Adaptation May Be Required)
Item NF1161
Our Price
$159.95
Military, Medical & First Responders
$8.00 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact, Single-LED Form Factor _x000D_
- Triple Function: High-Power White Main Beam, High-Power Red Main Beam, And Low-Power Red Accent Light _x000D_
- Pin-Fin Heatsink Design, For Superior Thermal Dissipation _x000D_
- Integrated Deutsch-Style Connector _x000D_
- Designed, Torture-Tested And Assembled In USA _x000D_
- Custom-Engineered TIR Optics For Precise Light Direction _x000D_
- Flood Pattern Provides Uniform, Even Illumination With A 50x50 Degree Spread _x000D_
- Can Be Mounted Anywhere On A Car, Truck, Motorcycle, Or UTV _x000D_
- Snap-On Covers Available To Protect Pod Surfaces _x000D_
- 4-Pin Deutsch Wiring Harness With Independent Controls For Each Light Function _x000D_
- Lumens Output Of 1450 _x000D_
- 6000K Color Temperature _x000D_
- 15 Watts Power Consumption _x000D_
- Operating Voltage From 9 To 16 Volts _x000D_
- Polarity Specific Wiring _x000D_
- Operating Temperature Range From -40°C To 85°C (-40°F To 185°F) _x000D_
- Polycarbonate Lens, Aluminum Casting, Rubber Gasket Materials _x000D_
- Passive Cooling With Pin-Fin Heatsink _x000D_
- SAE J575 Durability Tested _x000D_
- IP69K Waterproof And High-Pressure Intrusion Rated _x000D_
- Weight Approximately 0.4 Pounds (Shipped Weight) _x000D_
- Lifetime Limited Warranty Included _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Square |
| Light Size | 3 to 3.75 Inch |
Description
Compact Versatile Lighting. The Diode Dynamics Stage Series C1R Standard LED Pod Light; White Flood offers a high-performance lighting solution with three distinct functions: a high-power white beam, a high-power red beam, and a low-power red accent light. Designed to fit in tight spaces, it serves multiple roles from reverse lighting to brake and running lights, enhancing visibility and safety on various vehicles including cars, trucks, motorcycles, and UTVs.
_x000D__x000D_Construction and Appearance. Built with durability in mind, this LED pod features a robust polycarbonate lens and lightweight aluminum casting with a pin-fin heatsink for efficient thermal management. The overall design is finished with a rubber gasket to protect against moisture and dust intrusion, ensuring long-lasting performance under harsh conditions.
_x000D__x000D_Installation. Installation is straightforward, requiring basic hand tools. The pod can be mounted with standard or flush-mount brackets, with no complex modifications or drilling necessary in most cases.
_x000D__x000D_Warranty. Includes a limited lifetime warranty that covers defects in materials and workmanship for the life of the product.
_x000D__x000D_Application. Fits universally with some adaptation possibly required depending on mounting locations or vehicle types.
Diode Dynamics DD7423S
