Find Fog Lights for your Frontier

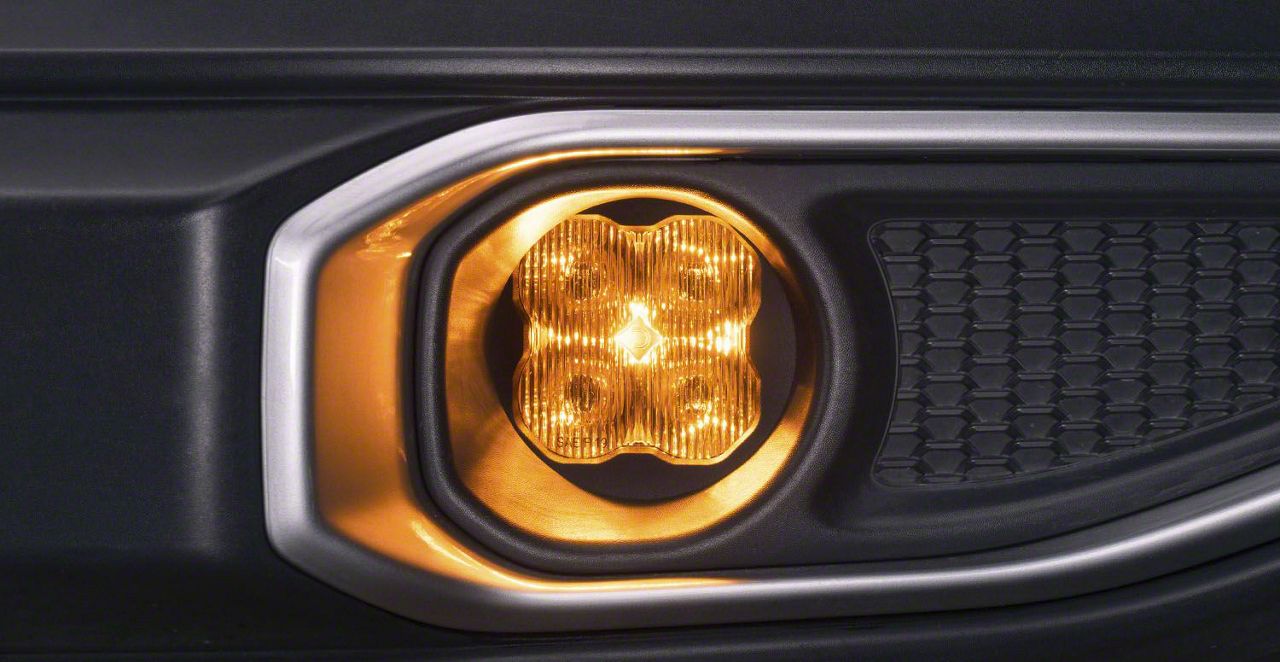

Diode Dynamics Elite Series LED Fog Lights; Yellow (09-21 Frontier)Find parts that fit my vehicle

Item NF4516
Our Price

$259.95 set

Military, Medical & First Responders $13.00 Available in XT Cash Rewards.
Confirm Eligibility

Save with Open Box

From $181.97

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

      • High-Performance OEM-Grade Replacement
      • Custom-Engineered Optic Provides Extremely Wide, Intense Light Output
      • Distinctive Integrated Amber Backlight
      • Road-Legal Fog Light, SAE F3 Compliant
      • Plug And Play Main Beam, No Modification Needed
      • Engineered And Assembled In USA
      • Output Up To 5 Times More Than Halogen Lamps
      • 80-Degree Smooth, Wide Beam Pattern With Sharp Cutoff
      • Available In Selective Yellow Output
      • Amber Backlight Can Be Wired To Any Constant 12-Volt Source
      • Bolt-On Fitment Using Glass-Fiber-Reinforced Brackets
      • Includes Waterproof Plug-And-Play Adapters
      • Assembled Using OEM-Grade Materials Including Aluminum, Copper PCB
      • Robotic Urethane Epoxy Sealed For Moisture Protection
      • Tested For Temperature Extremes, Vibration, Moisture, Corrosion To SAE Standards
      • Integrated Moisture-Proof Vents Allow Airflow, Maintain Seal
      • Built-In Circuit Protection For Voltage Spikes, Reverse Polarity
      • Backed By Industry-Leading 8-Year Limited Warranty
      • Includes Two Fog Lamps, Two H11 4-Pin DT Backlight Tap Wires, Two T-Taps, Mounting Guide
      • Raw Lumens: 1,650 lm For Yellow Beam, 14 lm For Backlight
      • Intensity: 11,400 Cd For Yellow Beam
      • Color Temperature: 3000K For Selective Yellow
      • Beam Angle: Fog, 80° Horizontal by 6° Vertical
      • Power Consumption: 18 Watts Main Beam, 0.3 Watts Backlight
      • Operating Voltage: 9-16 Volts
      • Current Draw: 1.4 Amps Main Beam at 13.2V, 25mA Backlight
      • Wire Size: 16 AWG and 18 AWG
      • Polarity Specific
      • Operating Temperature Range: -40°C to 85°C (-40°F to 185°F)
      • LED Emitters: Multi-Die Automotive Grade
      • Connector Type: Deutsch DT Input
      • Driver Features: Constant Current
      • Cooling Method: Passive Pin-Fin Heatsink
      • Compliance: SAE J575 Durability, SAE J583 Beam Pattern
      • Ingress Protection Rating: IP68 Waterproof
      • Unit Weight: 0.85 Pounds Per Lamp
      • Product Weight: 2.25 Pounds
      • Shipped Weight: 2.75 Pounds
      • Fits 09-21 Frontier

      Description

      High-Performance OEM Replacement. The Diode Dynamics Elite Series Type A Fog Lamps - Yellow deliver exceptional illumination performance, providing up to five times the output of traditional halogen fog lamps. Designed for both improved visibility and enhanced style, these fog lamps feature a selective yellow light output ideal for inclement weather conditions while maintaining legal compliance for on-road use.

      Construction and Appearance. Constructed with precision aluminum casting and a UV-coated polycarbonate lens, these fog lamps are engineered to endure harsh environmental conditions. The copper-core circuit board and multi-die automotive LEDs guarantee high efficiency and reliability, while the amber integrated backlight adds a distinctive visual accent. The lamps are sealed with urethane epoxy to protect against moisture intrusion and include moisture-proof vents to maintain long-term durability.

      Installation. Installation is straightforward and requires no vehicle modifications, as the lamps are designed for a direct bolt-on fit using supplied brackets and plug-and-play Deutsch connectors. Basic tools and 30 to 60 minutes are generally sufficient to complete the process.

      Warranty. These fog lamps come with an industry-leading 8-year limited warranty that covers manufacturing defects and ensures confidence in long-term reliability.

      Application. Designed specifically as a direct replacement for the 09-21 Nissan Frontier fog lamps, providing a seamless upgrade with no additional hardware required.

      Diode Dynamics DD5129P

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 30 Minutes

      Difficulty Level:

      Simple installation for anyone.

      Installation Guides

        No guide available for this part yet.

      What's in the Box

      • (2) LED Fog Lights
      • (2) Backlight Tap Wires with T-taps
      • Instruction Manual
