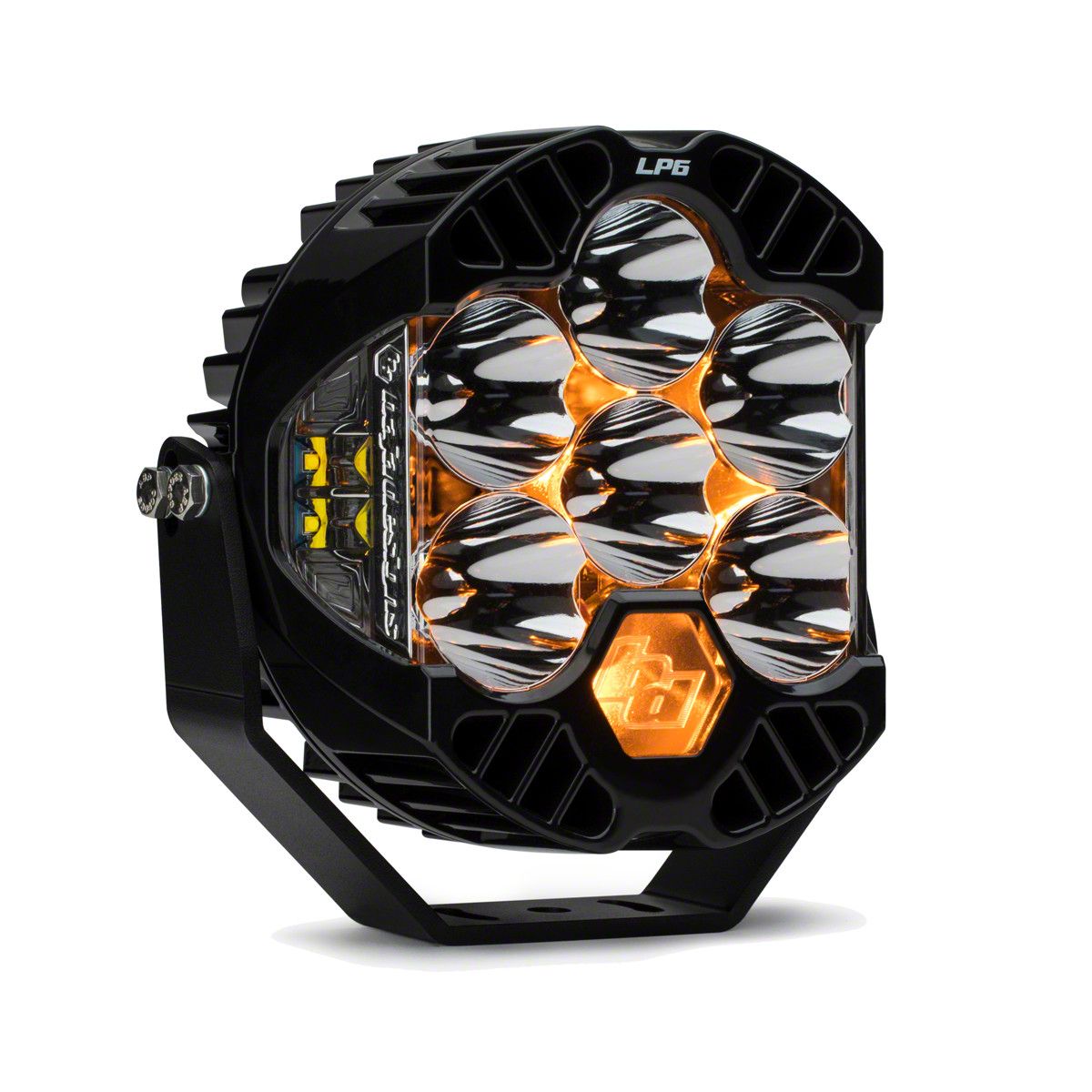

Baja Designs LP6 Pro LED Auxiliary Light Pod with Amber Backlight; Driving/Combo Beam; Amber (Universal; Some Adaptation May Be Required)

Item NF8420
Our Price

$534.95 each

Military, Medical & First Responders $26.75 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Lens Color Amber
      • _x000D_
      • Lens Material Hardcoated Polycarbonate
      • _x000D_
      • Light Quantity 1
      • _x000D_
      • Lighting Modes High Beam/Low Beam/Day-Time Running Backlighting
      • _x000D_
      • Lighting Quantity 6
      • _x000D_
      • Lighting Technology LED
      • _x000D_
      • Lighting Type Forward Projecting
      • _x000D_
      • Mounting Hardware Included Yes
      • _x000D_
      • Mounting Hardware Material Stainless Steel
      • _x000D_
      • Overvoltage Protection Built-In
      • _x000D_
      • Product Type LP6 Pro LED Light Pod
      • _x000D_
      • Secondary Amperage Rating (A) 1.000
      • _x000D_
      • Secondary Brightness (Lumens) 1972
      • _x000D_
      • Secondary Light Quantity 4 LEDs
      • _x000D_
      • Secondary Lighting Technology LED
      • _x000D_
      • Secondary Lighting Type Integrated Peripheral Technology (IPT)
      • _x000D_
      • Secondary Wattage (W) 15
      • _x000D_
      • Terminal Connector DT06-4S Deutsch
      • _x000D_
      • Terminal Type Mating Connector
      • _x000D_
      • Wattage (W) 103.5
      • _x000D_
      • Amperage Rating (A) 7.5
      • _x000D_
      • Backlight Amperage Rating (A) 0.3
      • _x000D_
      • Backlight Wattage (W) 4.14
      • _x000D_
      • Beam Pattern Spot
      • _x000D_
      • Bezel Material Powder Coat Cast Aluminum
      • _x000D_
      • Brightness (Lumens) 11225
      • _x000D_
      • Housing Color Black
      • _x000D_
      • Housing Material Powder Coat Cast Aluminum
      • _x000D_
      • Mounting Hardware Included Yes
      • _x000D_
      • Wiring Harness Included No
      • _x000D_
      • Average Rated Life (hr.) 49,930
      • _x000D_
      • Standards Compliance Exceeds MIL-STD810G, IK10 Compliant, IP69K Waterproof
      • _x000D_
      • Dimensions Depth 3.2 in, Height 6.5 in, Length 6.5 in
      • _x000D_
      • Weight 4.2 lbs
      • _x000D_
      • Fits Universal; Some Adaptation May Be Required
      • _x000D_

      Description

      Powerful LED Lighting. The Baja Designs LP6 Pro LED Auxiliary Light Pod with Amber Backlight and Driving/Combo Beam combines high-intensity illumination with versatile beam patterns designed to optimize both trail and road visibility. Ideal for off-road enthusiasts and professionals, this light pod provides a broad 200-degree spread using Integrated Peripheral Technology, delivering superior lighting coverage for near-field and distance vision needs.

      _x000D_

      Construction and Appearance. This light pod features a durable black powder coat cast aluminum housing and a hardcoated polycarbonate amber lens for improved impact resistance. The stainless steel mounting hardware ensures a secure installation. The rugged design exceeds MIL-STD810G, IK10 impact, and IP69K waterproof standards, making it suitable for harsh environments.

      _x000D_

      Installation. Installation requires moderate mechanical skills. Mounting hardware is included. A wiring harness is not provided, so wiring customization may be necessary depending on your setup.

      _x000D_

      Warranty. This product includes a limited lifetime warranty, offering comprehensive coverage for your investment.

      _x000D_

      Application. Designed to fit universal applications; some adaptation may be necessary.

      Baja Designs 270013

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 1 Hour

      Difficulty Level:

      Simple installation for anyone.

      Installation Guides

      What's in the Box

      • (1) Light and bracket
      • (1) Hardware pack containing 1/4”-20 and 3/8” hardware
      • (1) Center 3/8" bolt
      • (2) Longer 1/4”-20 bolts
      • Associated washers
      • Remaining 1/4” hardware for mounting bracket
      • (6) Bolts for LP9 bezel (4mm allen wrench size)
      • (4) Bolts for LP6 & LP4 bezel (4mm allen wrench size)
      • (1) O-ring
      • (1) Bezel
      • (1) Three position toggle switch (on/off/on) Double Pole, Double Throw (DPDT)
      • (1) 64-0172 LP9 Pro Wire Harness (recommended)
      • (1) Relay PN: 4RD 933 332-18
      • (1) Deustsch Connector (DT06-4S) mating connector (if creating own harness)
