Find Auxiliary Lighting for your Bronco Sport

Baja Designs LP4 Pro LED Auxiliary Light Pods with Amber Backlight; Spot Beam; Clear (Universal; Some Adaptation May Be Required)

Item BS3960
Our Price

$963.55 pair

Military, Medical & First Responders $48.18 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

      • Built-In Overvoltage Protection
      • LP4 Pro LED Light Pod Pair With Wiring Harness
      • Amperage Rating 5.5 Amps
      • Brightness 8,857 Lumens
      • Light Quantity 2 Pods
      • Lighting Technology LED
      • Lighting Type Forward Projecting
      • Secondary Amperage Rating 1 Amp
      • Secondary Brightness 1,972 Lumens
      • Secondary Light Quantity 4 LEDs
      • Secondary Lighting Technology LED
      • Secondary Lighting Type Integrated Peripheral Technology
      • Secondary Wattage 15 Watts
      • Terminal Connector DT06-4S Deutsch
      • Terminal Type Mating Connector
      • Universal Or Specific Universal
      • Wattage 75.9 Watts
      • Wiring Harness Included
      • Average Rated Life 49,930 Hours
      • Backlight Amperage Rating 0.35 Amps
      • Backlight Wattage 4.83 Watts
      • Beam Pattern Spot
      • Bezel Material Powder Coat Cast Aluminum
      • Description Spot; Clear; Pair
      • Housing Color Black
      • Housing Material Powder Coat Cast Aluminum
      • Lens Color Clear
      • Lens Material Hardcoated Polycarbonate
      • Lighting Modes Beam/Day-Time Running Backlighting
      • Mounting Hardware Included
      • Mounting Hardware Material Stainless Steel
      • Durability Exceeds MIL-STD-810G Mil-Spec Testing
      • Impact Resistance IK10 Compliant Mechanical Impact Testing
      • Water Resistance IP69K Waterproof Up To 9 Feet And Pressure Washable
      • Depth 3.2 Inches
      • Height 5.1 Inches
      • Length 5.1 Inches
      • Weight 2.8 Pounds
      • Fits Universal; Some Adaptation May Be Required

      Description

      High-Performance LED Lighting. The Baja Designs LP4 Pro LED Auxiliary Light Pods with Amber Backlight and Spot Beam deliver exceptional lighting performance with a powerful beam and broad 200-degree light spread using Integrated Peripheral Technology (IPT). Designed for off-road and exhibition use, these light pods enhance visibility and add a custom aesthetic to vehicles, making them ideal for enthusiasts who demand both function and style.

      Construction and Appearance. Crafted from powder coat cast aluminum with a hardcoated polycarbonate lens, these light pods combine durability with a sleek black finish. The robust housing protects internal components, while integrated stainless steel mounting hardware ensures secure installation and long-lasting use in harsh environments.

      Installation. Installation is straightforward with included wiring harness and mounting hardware, requiring minimal vehicle modification. No drilling is typically necessary, facilitating a quick and efficient setup for various vehicle types.

      Warranty. The product is backed by a limited lifetime warranty, providing comprehensive purchase protection for the owner.

      Application. Fits universal applications; some adaptation may be required to accommodate specific mounting setups or vehicle configurations.

      Baja Designs 297801

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 2 Hours

      Difficulty Level:

      Light to Moderate mechanical skill required.

      Installation Guides

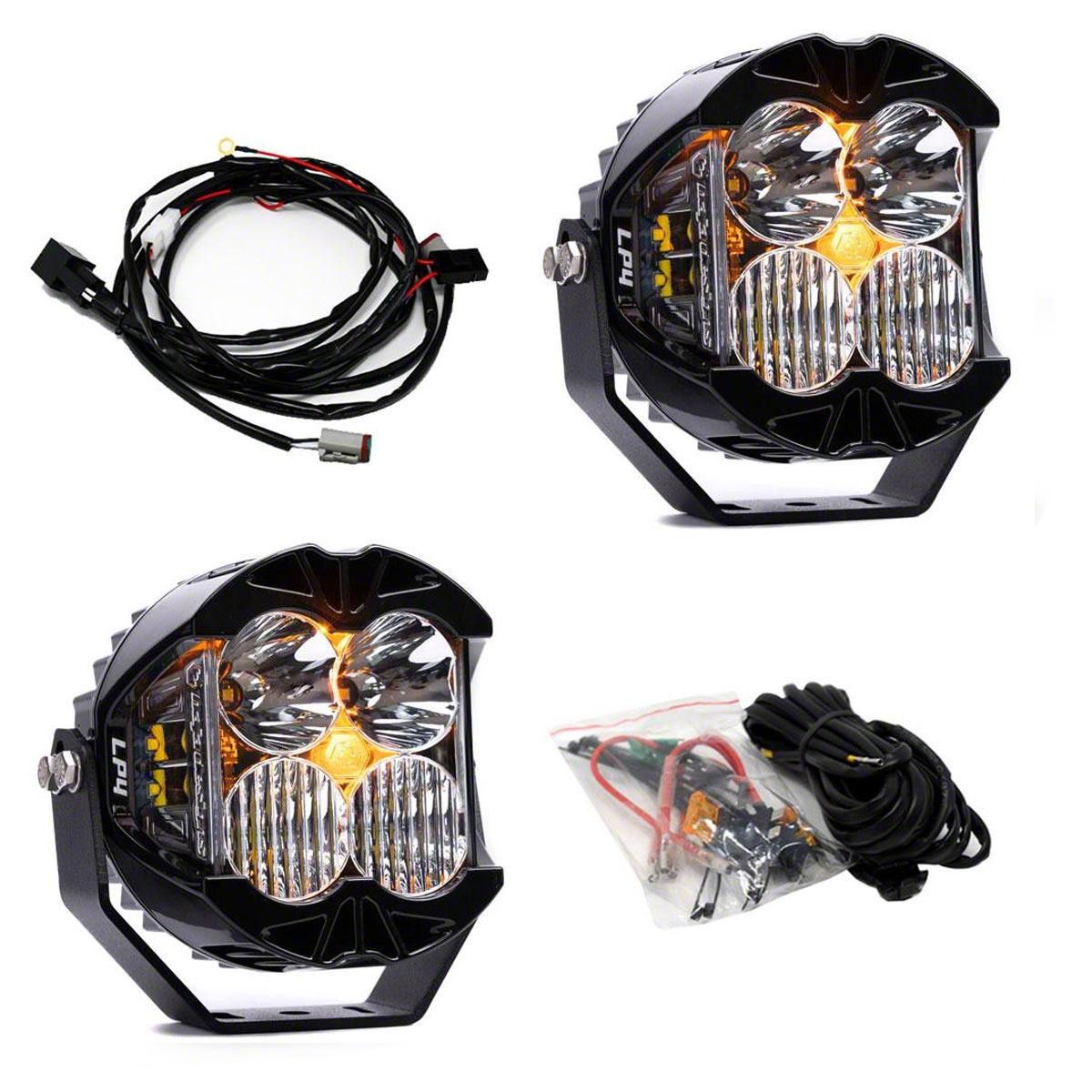

      What's in the Box

      • (2) LP4 Pro LED Light Pods
      • (1) Wiring Harness
      • Mounting Hardware

      4.7

      Reviews of Baja Designs Lights Products (162)

      Questions & Answers

      No questions about this product yet. Ask the First Question
