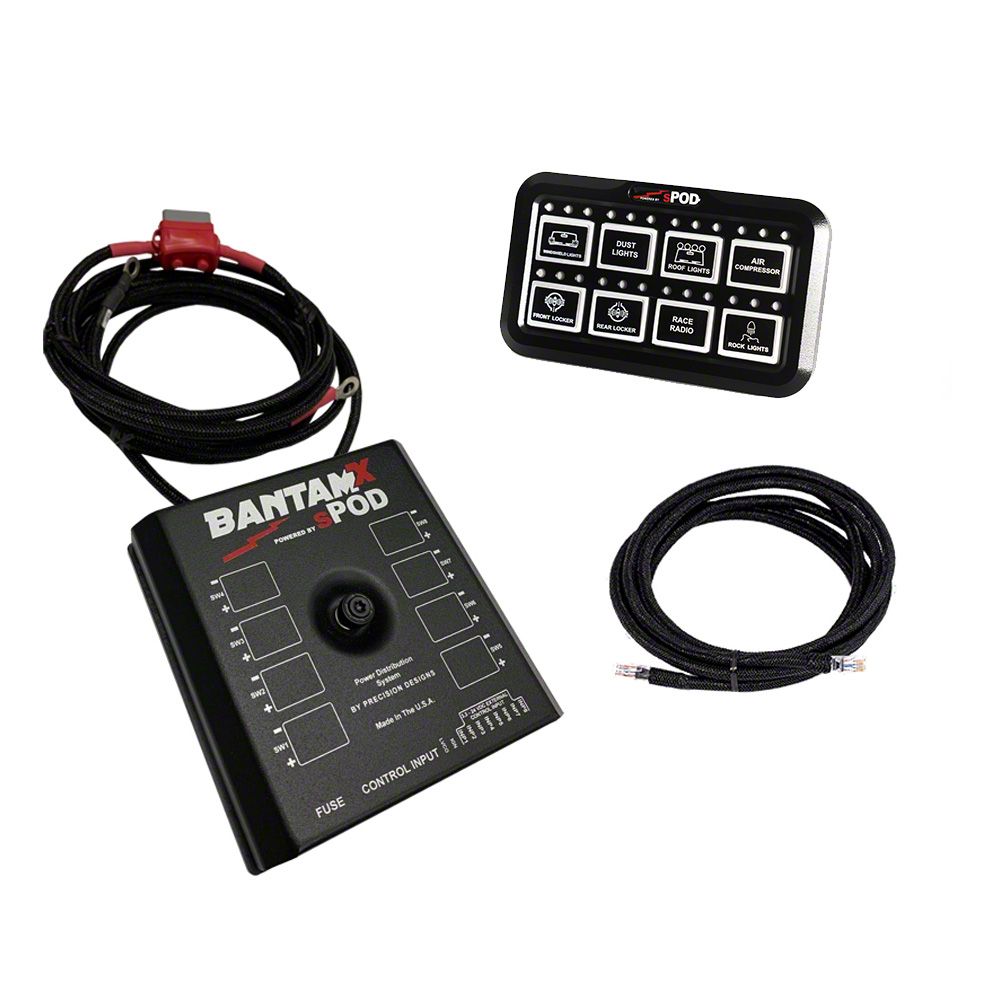

sPOD BantamX HD with 36-Inch Battery Cables (Universal; Some Adaptation May Be Required)

Item NT16145
Product Image
1 Reviews of sPOD
Our Price

$1,006.50

Military, Medical & First Responders $50.33 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

        _x000D_
      • Fully Programmable, Digital Controlled System
        • _x000D_
      • 8 Circuits Rated at 30 Amps at 12.5 VDC per Circuit
        • _x000D_
      • 16-Position Terminal Block for Easy Accessory Attachment
        • _x000D_
      • 2 Controller Ports (RJ45) for Ethernet Cables
        • _x000D_
      • Integrated Low Voltage Cutoff (LVCO) Battery Protection with Optional Override
        • _x000D_
      • One ATM Mini-Style Fuse for LVCO Protection and Reset
        • _x000D_
      • Failsafe Self-Healing Fault Protection System from 1.5 to 30 Amps
        • _x000D_
      • Current-Sensing MOSFETs Controlled by Microprocessor (No Fuses or Relays)
        • _x000D_
      • 100 Amp In-Line Fuse
        • _x000D_
      • Nylon Braided Battery Cables Made of Hi-Strand Crosslinked Copper Wire with Silicone Jacket
        • _x000D_
      • Operates on 12VDC or 24VDC
        • _x000D_
      • 8-Position Input Terminal Block for Controlling Outputs
        • _x000D_
      • Built-In Bluetooth Capabilities for Remote Control
        • _x000D_
      • Protection Against Overheating, Over-Current, Shorts, Reverse Polarity, and Field Collapse
        • _x000D_
      • Ignition Control and Safety Lock-Out for Switches 1 and 2 (Optional)
        • _x000D_
      • On-Demand Wireless Software Updates and Upgrades
        • _x000D_
      • HD Control Panel Encased in Aluminum Billet Machined Housing, Powder Coated Black
        • _x000D_
      • Silicone Buttons with Positive Touch Feedback
        • _x000D_
      • Panel Designed to Withstand Harsh Environments and Weather Conditions
        • _x000D_
      • Compact Size: 2-7/8" W x 4-7/8" L x 1/2" Thick
        • _x000D_
      • Universal Back with Two Pressed-In 1/4-20 Studs for Flat Mounting
        • _x000D_
      • Standard Universal Articulating Mount for Multiple Mounting Options
        • _x000D_
      • Standard RJ45 Jack for Communication Cable Between HD Panel and BantamX
        • _x000D_
      • HD Comes with a 10-Foot CAT-6 Ethernet Cable
        • _x000D_
      • HD Can Be Located Up to 25 Feet from Source Using Standard CAT-6 Ethernet Cable
        • _x000D_
      • Bluetooth LE Allows Programming and Control via Free sPOD App
        • _x000D_
      • Each Switch Programmable for Dimming, Flash, Momentary, Strobe, and Switch Linking
        • _x000D_
      • All 8 Switches Are Backlit with Adjustable Timer and RGB Color Options
        • _x000D_
      • Panel Lock-Out Feature for Safety and Security
        • _x000D_
      • Legends Can Be Applied; Comes with One Sheet of 72 Legends
        • _x000D_
      • Three Status Lights Per Switch Indicating Various States
        • _x000D_
      • Additional HD Smart Controllers Can Be Added for Multiple Locations
        • _x000D_
      • Compatible with External Controllers Such as Third Party Switches, Computers, Arduino, Raspberry Pi, Alpine Audio Systems, and More
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      Advanced Power Management. The sPOD BantamX HD with 36-inch battery cables is a compact, fully programmable 8-circuit power distribution and control system designed for 12/24V accessories. It streamlines wiring installations by using a single Ethernet cable to manage multiple accessories, providing enhanced safety features and flexibility for aftermarket electrical setups.

      _x000D__x000D_

      Construction and Appearance. The system includes a powder-coated steel base with a silicone gasket for weatherproofing, paired with an aluminum billet machined HD control panel housing finished in black. The control panel features tactile silicone buttons engineered for durability in harsh environmental conditions.

      _x000D__x000D_

      Installation. Installation is straightforward, requiring no cutting or fishing of wires into the cab. It offers both universal and vehicle-specific mounting options, with a compact size and included mounting hardware that allow for flexible placement without complex modifications.

      _x000D__x000D_

      Application. Designed for universal compatibility, this system may need some adaptation depending on the vehicle and accessory configuration. It is suitable for a wide variety of automotive electrical applications.

      sPOD BXHDUNI36
