Pacbrake Air Spring Accumulator Kit (Universal; Some Adaptation May Be Required)

Item U68754-XT
Product Image
New
Our Price

$179.02

Military, Medical & First Responders $8.95 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

      • Increases the volume of your air spring system to reduce the harsh ride associated with some air suspension kits

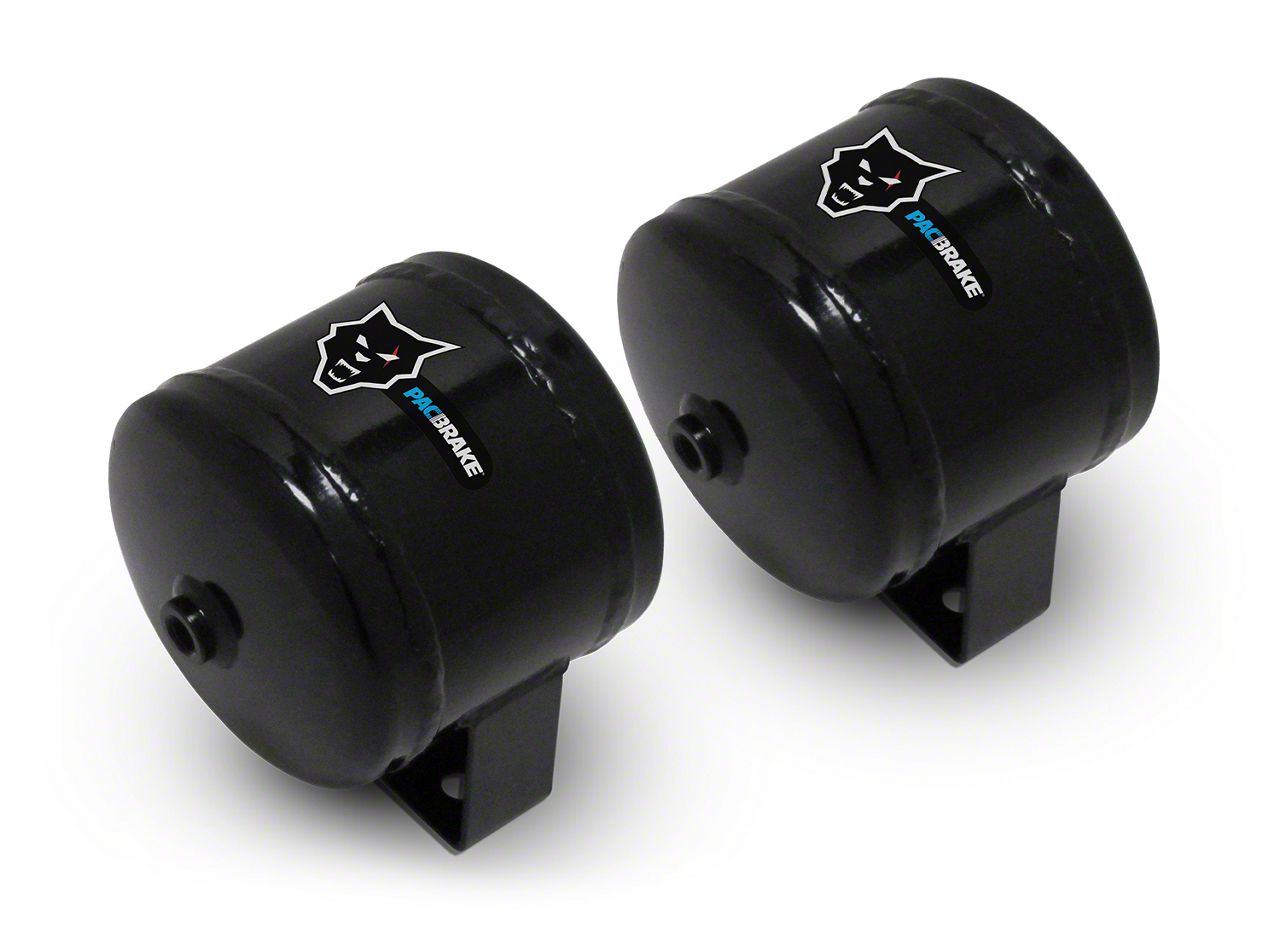

      • Includes two 1/2 gallon carbon steel air tanks with black powder-coated finish
      • Includes airline, fittings, and fasteners to connect to an existing compressor (compressor not included, available separately)
      • Tank dimensions: 6.3 in x 5.25 in x 6.75 in
      • Tank diameter: 5.9 in
      • Tank weight: 3.8 pounds
      • NPT ports: 2 per air tank, each 1/4"
      • Maximum working pressure: 150 psi
      • Burst pressure: 600 psi
      • Operating temperature range: -40°F to 248°F
      • Includes welded mounting brackets (installation hardware not included)
      • Internal anti-rust coating applied
      • Fits universal; some adaptation may be required

      Description

      Air Spring System Enhancement. The Pacbrake Air Spring Accumulator Kit increases the air volume in your suspension system, helping to reduce the harsh ride characteristics often experienced with standard air suspension kits. It stores compressed air for pneumatic accessories, ensuring smoother vehicle operation and improved air spring responsiveness.

      Construction and Appearance. This kit features dual 1/2 gallon carbon steel air tanks with a durable black powder-coated finish for corrosion resistance. Each tank is treated internally with an anti-rust coating and manufactured to ASME specifications, providing longevity and reliable performance across a wide temperature range.

      Installation. Installation requires basic mechanical knowledge. Welded mounting brackets are included, but additional installation hardware may be needed to complete the setup.

      Application. This kit is universally compatible with all Pacbrake series compressors; however, some adaptation may be required to fit specific configurations.

      Pacbrake HP10302
