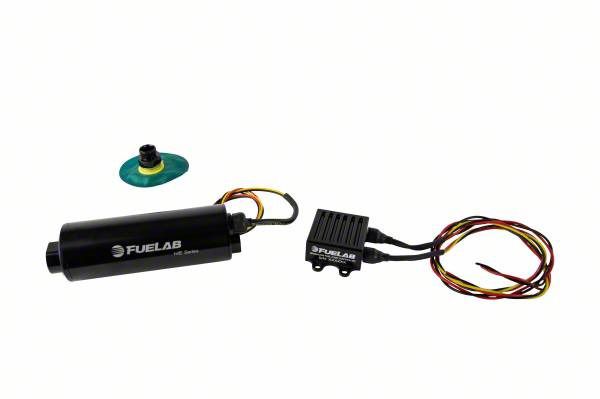

Fuelab In-Tank Twin Screw Brushless Fuel Pump Kit; -8AN; 625 LPH (Universal; Some Adaptation May Be Required)

Item TR50301
Product Image
1 Reviews of Fuelab
Our Price

$1,311.00

Military, Medical & First Responders $65.55 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

      • In-Tank Fuel Pump Kit Contains 625LPH Twin Screw Brushless Pump, Remote Mount PWM Controller, and 65 Micron Straining Filter
      • Compatible With Gasoline, Diesel, Methanol, and Ethanol
      • Twin Screw Rotor Pumping Mechanism
      • 125PSI Max Operating Pressure
      • Supports Up to 1500HP at Continuous Speed on Pump Gas Naturally Aspirated
      • Higher Efficiency Results in Lower Current Draw and Reduced Noise
      • Superior Priming Capabilities
      • Greater Resistance To Cavitation and Vapor Lock
      • Lightweight, Super-Efficient DC Brushless Motor to Minimize Current Draw
      • Powerful High Flux Density Neodymium Rare Earth Magnets
      • No Motor Brushes to Wear Out or Corrode; Compatible With Low-Sulfur Diesel
      • Wet Motor Design Without Dynamic Shaft Seals That Can Wear Out
      • Compatible With 12 to 16 Volt Vehicle Electrical Systems
      • Includes Model 72004 Pump Controller for Full Speed PWM or 0-5V Input Speed Control
      • Continuous Duty Motor Speed
      • Compact, Lightweight Design Weighing Less Than 3 lbs
      • Billet Aluminum Construction with MIL-A-8625 Type II Anodizing
      • Long Life Multi-Fuel Compatible Fluorosilicone Static Seals
      • Accepts Standard or Port Style -8AN Fittings
      • Compatible With Most Aftermarket ECUs Featuring PWM Output Frequencies From 100Hz to 5000Hz
      • Universal Fit; Some Adaptation May Be Required

      Description

      Advanced Fuel Delivery. The Fuelab In-Tank Twin Screw Brushless Fuel Pump Kit (-8AN, 625 LPH) is engineered to deliver high-capacity, reliable fuel flow for performance applications. It supports continuous operation up to 1500HP on pump gas and ensures efficient pumping with reduced noise and lower current draw. This kit includes all necessary components for installation and is compatible with various fuels including gasoline, diesel, methanol, and ethanol.

      Construction and Appearance. Featuring a billet aluminum body with MIL-A-8625 Type II anodizing, the pump is both lightweight and durable, weighing less than 3 pounds. Its compact design incorporates long-lasting fluorosilicone seals compatible across multiple fuels. The wet brushless motor uses neodymium rare earth magnets for high efficiency and reliability, eliminating the need for motor brushes or dynamic shaft seals.

      Installation. Installation is straightforward for most applications with minimal modification required. Drilling is typically not necessary, making this kit suitable for a wide range of in-tank installations.

      Warranty. This fuel pump kit is backed by a limited lifetime warranty.

      Application. Designed for universal fitment; some adaptation may be required depending on specific vehicle setups.

      Fuelab 20814
