Fuelab In-Tank Twin Screw Brushless Fuel Pump Kit; -8AN; 550 LPH (Universal; Some Adaptation May Be Required)

Item TR50300
Product Image
1 Reviews of Fuelab
Our Price

$1,259.00

Military, Medical & First Responders $62.95 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

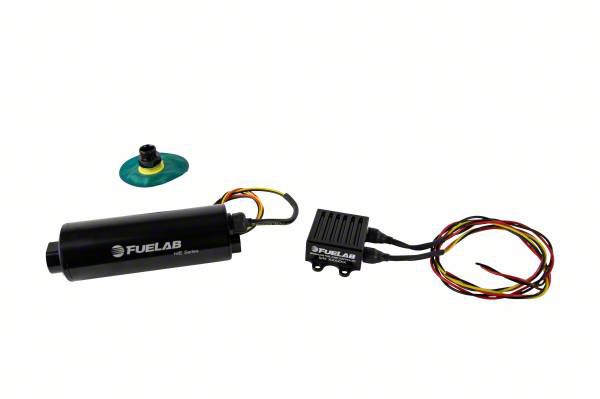

      • In-Tank Fuel Pump Kit Contains 550LPH Twin Screw Brushless Pump, Remote Mount PWM Controller, and 65 Micron Straining Filter
      • Compatible With Gasoline, Diesel, Methanol, and Ethanol
      • Twin Screw Rotor Pumping Mechanism
      • 125PSI Max Operating Pressure
      • Supports 1250HP Power at Continuous Speed Pump Gas Naturally Aspirated
      • Higher Efficiency Means Less Current Draw and Less Noise
      • Superior Priming Capabilities
      • Greater Resistance to Cavitation and Vapor Lock
      • Limited Lifetime Warranty
      • Lightweight, Super-Efficient DC Brushless Motor Minimizes Current Draw
      • Powerful High Flux Density Neodymium Rare Earth Magnets
      • No Motor Brushes to Wear Out or Corrode – Low-Sulfur Diesel Compatible
      • Wet Motor Design with No Dynamic Shaft Seals
      • 12 to 16 Volt Vehicle Electrical System Compatibility
      • Includes Model 72004 Pump Controller for Full Speed PWM or 0-5V Input Speed Control
      • Continuous Duty Motor Speed
      • Compact, Lightweight Design Less Than 3lbs
      • Billet Aluminum Construction with Anodize per MIL-A-8625 Type II
      • Long Life Multi-Fuel Compatible Fluorosilicone Static Seals
      • Accepts Standard or Port Style -8AN Fittings
      • Compatible with Most Aftermarket ECUs with PWM Output Frequency from 100Hz to 5000Hz
      • Fits Universal; Some Adaptation May Be Required

      Description

      HIGH-PERFORMANCE FUEL DELIVERY. The Fuelab In-Tank Twin Screw Brushless Fuel Pump Kit; -8AN; 550 LPH delivers reliable fuel flow with high efficiency, supporting up to 1250 horsepower at continuous speed for naturally aspirated pump gas applications. Engineered for versatility, it easily accommodates gasoline, diesel, methanol, and ethanol fuels, making it ideal for a wide range of automotive applications requiring consistent, high-pressure fuel delivery.

      CONSTRUCTION AND APPEARANCE. This fuel pump kit features a compact, lightweight design crafted from billet aluminum with an anodized finish meeting MIL-A-8625 Type II specifications for durability and corrosion resistance. The pump incorporates multi-fuel-compatible fluorosilicone static seals and a brushless DC motor using neodymium rare earth magnets, allowing for superior efficiency and longevity.

      INSTALLATION. Installation is straightforward, designed as an in-tank assembly that minimizes complexity and does not require drilling for mounting. The included remote mount PWM controller provides flexible speed control compatible with many aftermarket engine management systems.

      WARRANTY. This product is backed by a limited lifetime warranty that covers defects in materials and workmanship.

      APPLICATION. This pump kit is universal, requiring some adaptation to fit various vehicles and systems.

      Fuelab 20813
