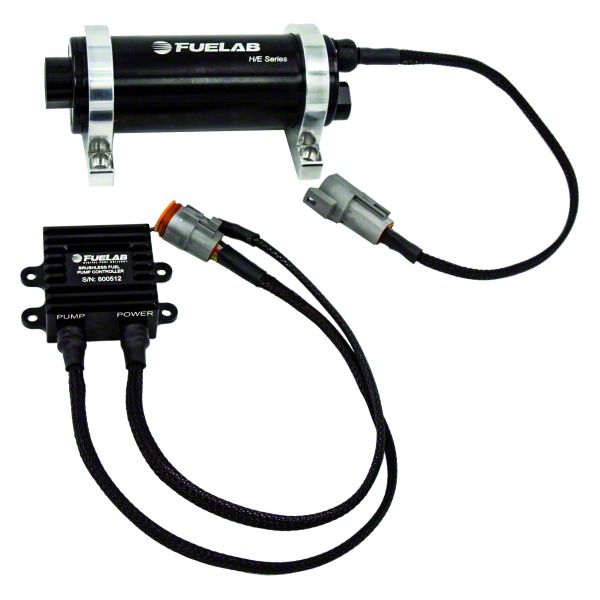

Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump; -8AN; 625 LPH (Universal; Some Adaptation May Be Required)
Item TR50321
Our Price
$1,364.00
Military, Medical & First Responders
$68.20 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- High Efficiency EFI In-Line Fuel Pump Rated Up To 1500HP Street/Strip Twin Screw DC Brushless Driven Fuel Pump _x000D_
- Limited Lifetime Warranty _x000D_
- 625 LPH @ 45PSI, 125PSI Max Operating Pressure _x000D_
- 13.5V, Compatible With Gasoline, Diesel, Methanol, And Ethanol _x000D_
- Twin Screw Rotor Pumping Mechanism For Superior Priming And Less Noise _x000D_
- Continuous Duty Motor Speed With Higher Efficiency Resulting In Less Current Draw _x000D_
- Lightweight Super-Efficient DC Brushless Motor With No Brushes To Wear Out Or Corrode _x000D_
- Powerful High Flux Density Neodymium Rare Earth Magnets _x000D_
- Wet Motor Design Without Dynamic Shaft Seals To Ensure Long Life _x000D_
- 12 To 16 Volt Vehicle Electrical System Compatibility _x000D_
- Model 72004 Pump Controller Included For Full Speed Or PWM Input Speed Control _x000D_
- Compact Lightweight Design — Less Than 3 Pounds; Overall Length: 7.13”; Diameter: 2.0” _x000D_
- Billet Aluminum Construction With Anodized Finish Per MIL-A-8625 Type II _x000D_
- Includes Two Billet Aluminum Mounting Brackets _x000D_
- Long Life Multi-Fuel Compatible Fluorosilicone Static Seals _x000D_
- Accepts Standard Or Port Style -8AN Fittings _x000D_
- Fits Universal Applications; Some Adaptation May Be Required _x000D_
Description
Twin Screw Fuel Pump. The Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump; -8AN; 625 LPH provides a reliable high-flow fuel delivery solution for high-performance engines supporting up to 1500 horsepower. It is designed to consistently supply fuel in both street and strip applications with compatibility for gasoline, diesel, methanol, and ethanol. The efficient brushless motor design reduces noise and current draw, while its twin screw mechanism ensures superior priming and resistance to vapor lock.
_x000D__x000D_Construction and Appearance. Crafted from billet aluminum, this fuel pump features an anodized finish per MIL-A-8625 Type II standards, ensuring durability and corrosion resistance. It has a compact, lightweight design weighing less than 3 pounds, with dimensions of 7.13 inches in length and 2.0 inches in diameter. The motor includes powerful high-flux density Neodymium rare earth magnets and long-life fluorosilicone static seals for multi-fuel compatibility.
_x000D__x000D_Installation. Installation is straightforward with included billet aluminum mounting brackets and compatibility with standard or port-style -8AN fittings. The pump is designed to fit a variety of universal applications, although some adaptation may be necessary depending on specific vehicle setups or configurations.
_x000D__x000D_Warranty. This fuel pump comes with a limited lifetime warranty, offering long-term assurance of performance and reliability.
