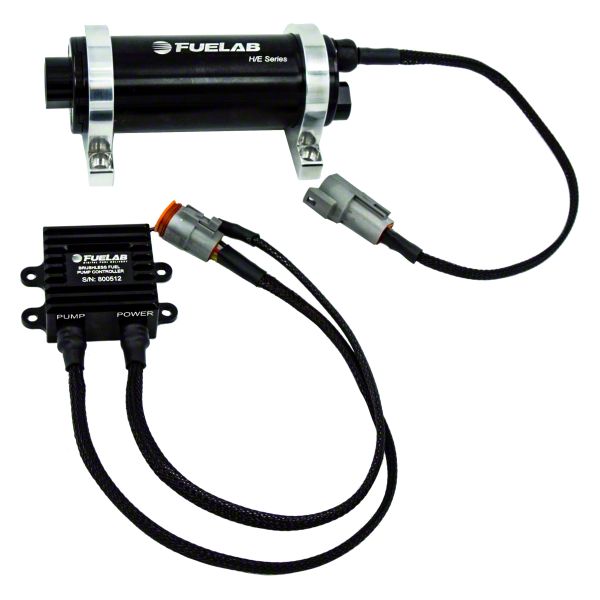

Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump; -8AN; 550 LPH (Universal; Some Adaptation May Be Required)
Item TR50320
Our Price
$1,311.00
Military, Medical & First Responders
$65.55 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- High Efficiency EFI In Line Fuel Pump, Rated Up To 1250HP, Street/Strip, Twin Screw DC Brushless Driven Fuel Pump _x000D_
- Limited Lifetime Warranty _x000D_
- 550 LPH @ 45PSI, 125PSI Max Operating Pressure _x000D_
- 13.5V Operating Voltage _x000D_
- Compatible With Gasoline, Diesel, Methanol, And Ethanol _x000D_
- Twin Screw Rotor Pumping Mechanism _x000D_
- Higher Efficiency Means Less Current Draw And Less Noise _x000D_
- Superior Priming Capabilities _x000D_
- Greater Resistance To Cavitation (Vapor Lock) _x000D_
- Lightweight Super-Efficient DC Brushless Motor To Minimize Current Draw _x000D_
- Powerful High Flux Density Neodymium Rare Earth Magnets _x000D_
- No Motor Brushes To Wear Out Or Corrode (Low-Sulfur Diesel Compatible) _x000D_
- Wet Motor Design, No Dynamic Shaft Seals That Can Wear Out _x000D_
- 12 To 16 Volt Vehicle Electrical System Compatibility _x000D_
- Model 72004 Pump Controller Included For Full Speed Or PWM Input Speed Control _x000D_
- Continuous Duty Motor Speed _x000D_
- Compact, Lightweight Design, Less Than 3lbs, Overall Length 7.13”, Diameter 2.0” _x000D_
- Billet Aluminum Construction With Anodize Per MIL-A-8625, Type II _x000D_
- Includes Two Billet Aluminum Mounting Brackets _x000D_
- Long Life, Multi-Fuel Compatible Fluorosilicone Static Seals _x000D_
- Accepts Standard Or Port Style -8AN Fittings _x000D_
- Fits Universal Applications; Some Adaptation May Be Required _x000D_
Description
High-Performance Fuel Delivery. The Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump; -8AN; 550 LPH is engineered to provide reliable and efficient fuel delivery for high horsepower applications up to 1250HP. It supports gasoline, diesel, methanol, and ethanol fuels, ensuring consistent fuel pressure and flow to meet demanding engine requirements in street and strip vehicles.
_x000D__x000D_Construction and Appearance. This fuel pump features a compact, lightweight design weighing less than 3 pounds, with billet aluminum construction finished with a MIL-A-8625 Type II anodize for durability and corrosion resistance. It includes multi-fuel compatible fluorosilicone static seals and billet aluminum mounting brackets for long-lasting performance and easy installation.
_x000D__x000D_Installation. Installation is straightforward and typically does not require drilling. The pump is compatible with standard or port style -8AN fittings. Its compact dimensions allow it to fit into tight spaces, making it suitable for a variety of vehicle setups.
_x000D__x000D_Warranty. The product is backed by a limited lifetime warranty for added peace of mind. Application. Fits universal applications; some adaptation may be required.
