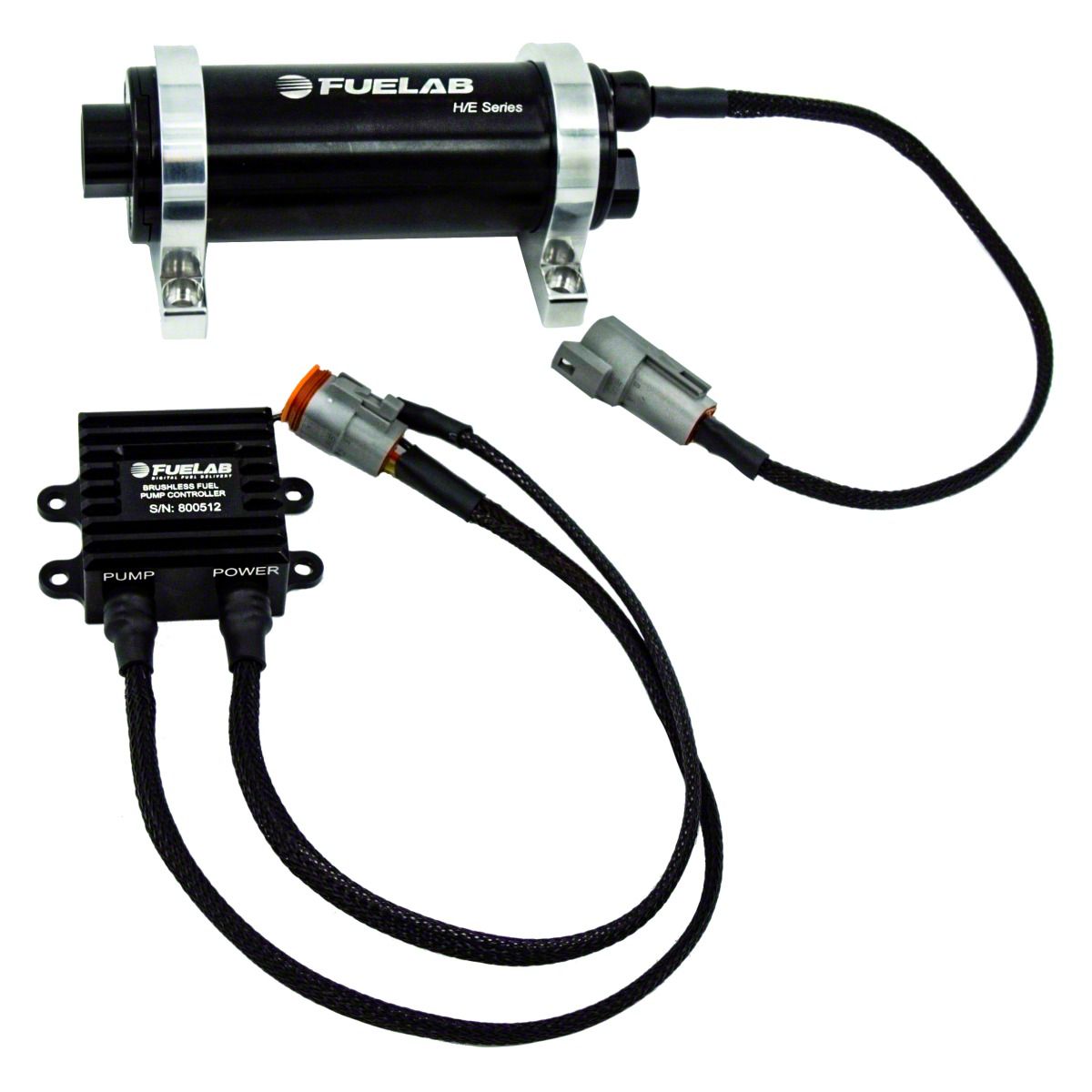

Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump; -8AN; 1100 LPH (Universal; Some Adaptation May Be Required)
Item TR50322
Our Price
$1,574.00
Military, Medical & First Responders
$78.70 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- High Efficiency EFI In Line Fuel Pump Rated Up To 2800hp Street/Strip Twin Screw DC Brushless Driven Fuel Pump _x000D_
- Limited Lifetime Warranty _x000D_
- To Be Used With 595 Series Fuel Pressure Regulators With .328" Orifice Or Larger _x000D_
- 1100 Lph @ 45psi 125psi Max 13.5v Rated Up To 2800hp Massive Power Support _x000D_
- Compatible With Gasoline Diesel Methanol And Ethanol _x000D_
- Twin Screw Rotor Pumping Mechanism _x000D_
- 125psi Max Operating Pressure _x000D_
- 2800hp Power Support At Continuous Speed _x000D_
- Higher Efficiency Means Less Current Draw And Less Noise _x000D_
- Superior Priming Capabilities _x000D_
- Greater Resistance To Cavitation Vapor Lock _x000D_
- Lightweight Super-Efficient DC Brushless Motor To Minimize Current Draw _x000D_
- Powerful High Flux Density Neodymium Rare Earth Magnets _x000D_
- No Motor Brushes To Wear Out Or Corrode Low-Sulfur Diesel No Problem _x000D_
- Wet Motor Design No Dynamic Shaft Seals That Can Wear Out _x000D_
- 12 To 16 Volt Vehicle Electrical System Compatibility _x000D_
- Model 72006 Pump Controller Included For Full Speed Or PWM Input Speed Control _x000D_
- Continuous Duty Motor Speed _x000D_
- Compact Lightweight Design Less Than 3lbs Overall Length 7.13” Diameter 2.0” _x000D_
- Billet Aluminum Construction With Anodize Per MIL-A-8625 Type II _x000D_
- Includes Two Billet Aluminum Mounting Brackets _x000D_
- Long Life Multi-Fuel Compatible Fluorosilicone Static Seals _x000D_
- Accepts Standard Or Port Style -8AN Fittings _x000D_
- Fits Universal Some Adaptation May Be Required _x000D_
Description
High Performance Fuel Pump. The Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump; -8AN; 1100 LPH delivers exceptional fuel flow and pressure to support up to 2800 horsepower applications. Designed for street and strip use, this pump ensures reliable fuel delivery with low noise and reduced current draw, making it critical for high-output engines running gasoline, diesel, methanol, or ethanol fuels.
_x000D__x000D_Construction and Appearance. Crafted from billet aluminum with a MIL-A-8625 Type II anodized finish, this pump features a compact and lightweight design weighing less than 3 pounds with an overall length of 7.13 inches and a diameter of 2.0 inches. It includes high-quality fluorosilicone static seals and billet aluminum mounting brackets, underscoring durability and multi-fuel compatibility.
_x000D__x000D_Installation. Installation is straightforward and typically does not require drilling, as the pump includes billet aluminum mounting brackets. It is designed to integrate seamlessly into existing fuel systems requiring a -8AN fitting.
_x000D__x000D_Warranty. This pump is backed by a limited lifetime warranty, ensuring long-term reliability and customer confidence.
Application. Fits universal applications, although some adaptation may be required to accommodate specific vehicle setups.
Fuelab 47415
