Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump; 1500 HP; 290mm Tall (Universal; Some Adaptation May Be Required)

Item TR50345
Product Image
1 Reviews of Fuelab
Our Price

$1,784.00

Military, Medical & First Responders $89.20 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

        _x000D_
      • H/E Series 290mm Tall Fuel Surge Tank System with 1500 HP Brushless Twin Screw Pump and Controllable Speed
        • _x000D_
      • Limited Lifetime Warranty
        • _x000D_
      • 2.7L Fuel Surge Tank System with Speed Controllable Twin Screw DC Brushless Fuel Pump, 625 lph Flow Rate
        • _x000D_
      • Enables High Fuel Flow Output with Minimal or No Modifications to the OE Fuel Tank and Module
        • _x000D_
      • Prevents Fuel Sloshing by Maintaining a Ready Volume of Fuel
        • _x000D_
      • 290mm Tall
        • _x000D_
      • FST Rated Volume: 2.7 L
        • _x000D_
      • Includes Single Twin Screw DC Brushless Fuel Pump
        • _x000D_
      • Rated to Flow 625 lph at 45 psi, 125 psi Maximum Pressure
        • _x000D_
      • Integrated Controller with PWM Speed Control
        • _x000D_
      • Billet Aluminum Construction with O-Ring Seals and -8AN Fuel Ports
        • _x000D_
      • Compatible with Pump Gas, Racing Gasoline, and E85
        • _x000D_
      • Return Line Required to Return Excess Fuel to the Vehicle Fuel Tank
        • _x000D_
      • Optional FST Upgrade Accessory Kits Sold Separately
        • _x000D_
      • PWM Compatible with Most Aftermarket ECUs with PWM Output Frequency from 100Hz to 5000Hz
        • _x000D_
      • Universal Fit with Some Adaptation Potentially Required
        • _x000D_

      Description

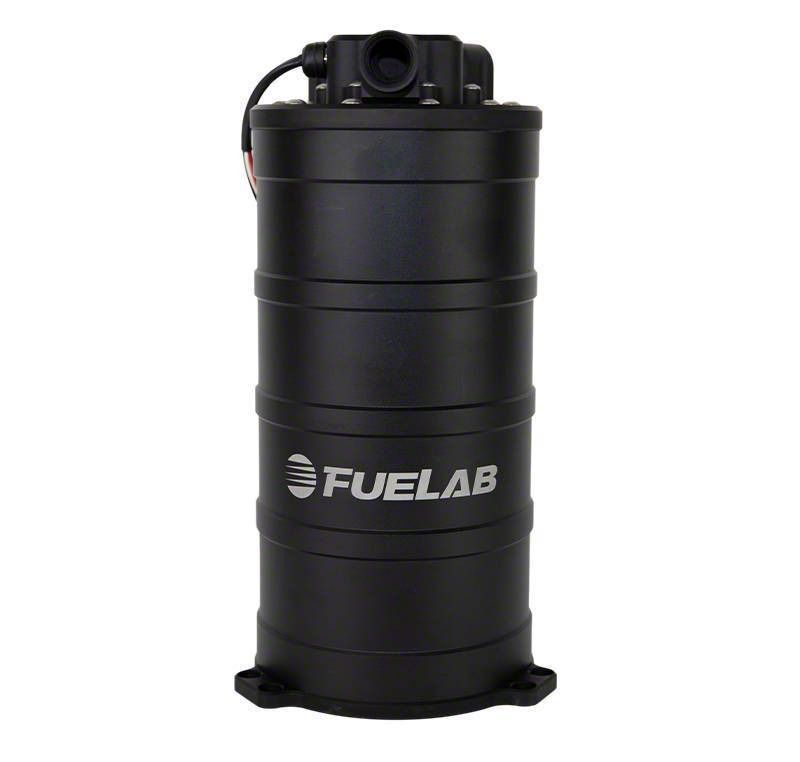

      High-Performance Fuel Surge Tank System. The Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump, capable of supporting up to 1500 HP and standing 290mm tall, is engineered to provide consistent and reliable fuel flow rates up to 625 liters per hour at 45 psi. This system helps prevent fuel starvation by maintaining a continuous ready volume of fuel, ensuring optimal engine performance during demanding conditions such as racing or high-horsepower applications.

      _x000D_

      Durable Precision Construction and Appearance. Built from billet aluminum with O-ring sealing and equipped with -8AN fuel ports, the surge tank offers robust, leak-free performance. Its anodized finish delivers corrosion resistance, while the integrated PWM controller allows precise pump speed modulation compatible with a wide range of aftermarket engine management systems.

      _x000D_

      Installation. Installation is straightforward for experienced professionals and requires minimal or no modifications to the original equipment fuel tank or module. The system is designed for universal fitment, with some adaptation potentially required depending on the vehicle.

      _x000D_

      Warranty and Application. Backed by a limited lifetime warranty, this fuel surge tank system is suitable for universal applications, compatible with pump, racing gasoline, and E85 fuels.
