Product Information
Features, Description, Q&A, Specs & Installation
Features
- 8" Subwoofer Enclosure
- Amplified with Subwoofer Control Knob
- RMS Power: 150 Watts (800 Watts Peak)
- Impedance: 2 Ohm
- Designed for Under Car Seat Installation
- 79 dB Sensitivity
- Frequency Response: 36-300 Hz
- Remote Knob Cable Length: 16 ft / 5 m
- Remote Knob Adjust Range: 0-30 dB
- Auto Turn-On via Signal Sensing
- Cone Material: Polypropylene
- Surround Material: Rubber
- Basket Material: Steel
- Magnet Material: Ferrite
- Body / Housing Material: Aluminum
- Amplifier Class: Digital
- Amplifier Type: Subwoofer Monoblock
- Number of Channels: 1
- Minimum Impedance: 2 Ohm
- Signal to Noise Ratio: >80 dB
- Total Harmonic Distortion (THD): <0.5%
- Low Level Input Range: 0.1-3.5 Volts
- High Level Input Range: 0.3-10 Volts
- Selectable X-Over: LPF Fixed
- X-Over Filter Range: 50-150 Hz
- Bass Boost Range: 0-12 dB
- Bass Boost Frequency: 50 Hz
- Infrasonic Filter: 30 Hz Fixed
- Phase Selector: 0-180 Degrees
- LED Indicator: Power / Protect
- Power Input Terminal Size: 8 Ga
- Fuse Size: 25A
- Remote Level Control Included
- Thermal Protection Included
- Over-Load Protection Included
- DC Output Protection Included
- Short Circuit Output Protection Included
- Voltage Input Protection Included
- Overall Height: 3" / 77 mm
- Overall Width: 9.64" / 245 mm
- Overall Length: 11.42" / 290 mm
- Gross Single Unit Weight: 13 lb
- Single Unit Box Dimensions (W x L x H): 16.75 x 12.5 x 5.75 Inches
- Quantity of Units in Master Carton: 2
- Gross Master Carton Weight: 27.5 lb
- Master Carton Dimensions (W x L x H): 17.5 x 12.5 x 13.75 Inches
- Fits Universal; Some Adaptation May Be Required
Description

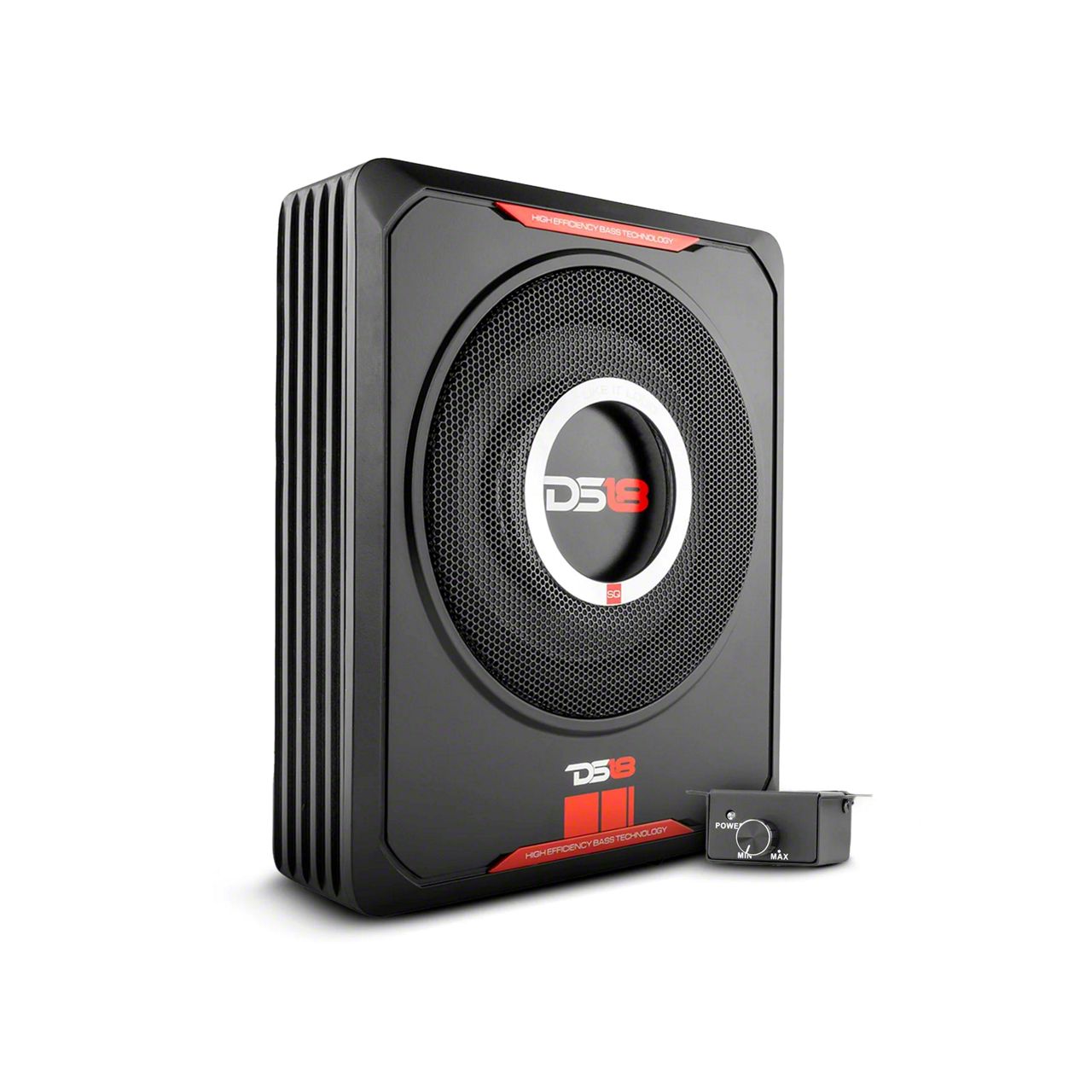

Compact Bass Solution. The DS18 8-Inch Underseat Amplified Subwoofer delivers powerful, deep bass in a compact design ideal for automotive use. It enhances in-car audio by efficiently producing low frequencies while fitting discreetly under seats, providing an excellent upgrade for bass enthusiasts without sacrificing space.
Construction and Appearance. This subwoofer features a durable polypropylene cone with a rubber surround and steel basket, ensuring excellent sound reproduction and durability. The aluminum housing provides strength and effective heat dissipation. Its amplifier utilizes a digital class monoblock design with built-in protection features and a clean, functional appearance optimized for under-seat installation.
Installation. Installation is straightforward with included remote bass control and wiring designed for easy setup. Some vehicle-specific adaptation may be required, but significant drilling or custom mounting is typically not necessary.
Warranty. The product is backed by a two-year warranty to ensure reliability and build quality.
Application. Fits universal; some adaptation may be required.
DS18 SQBASS8
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Amplified Subwoofer
- (1) Bass Remote Control
