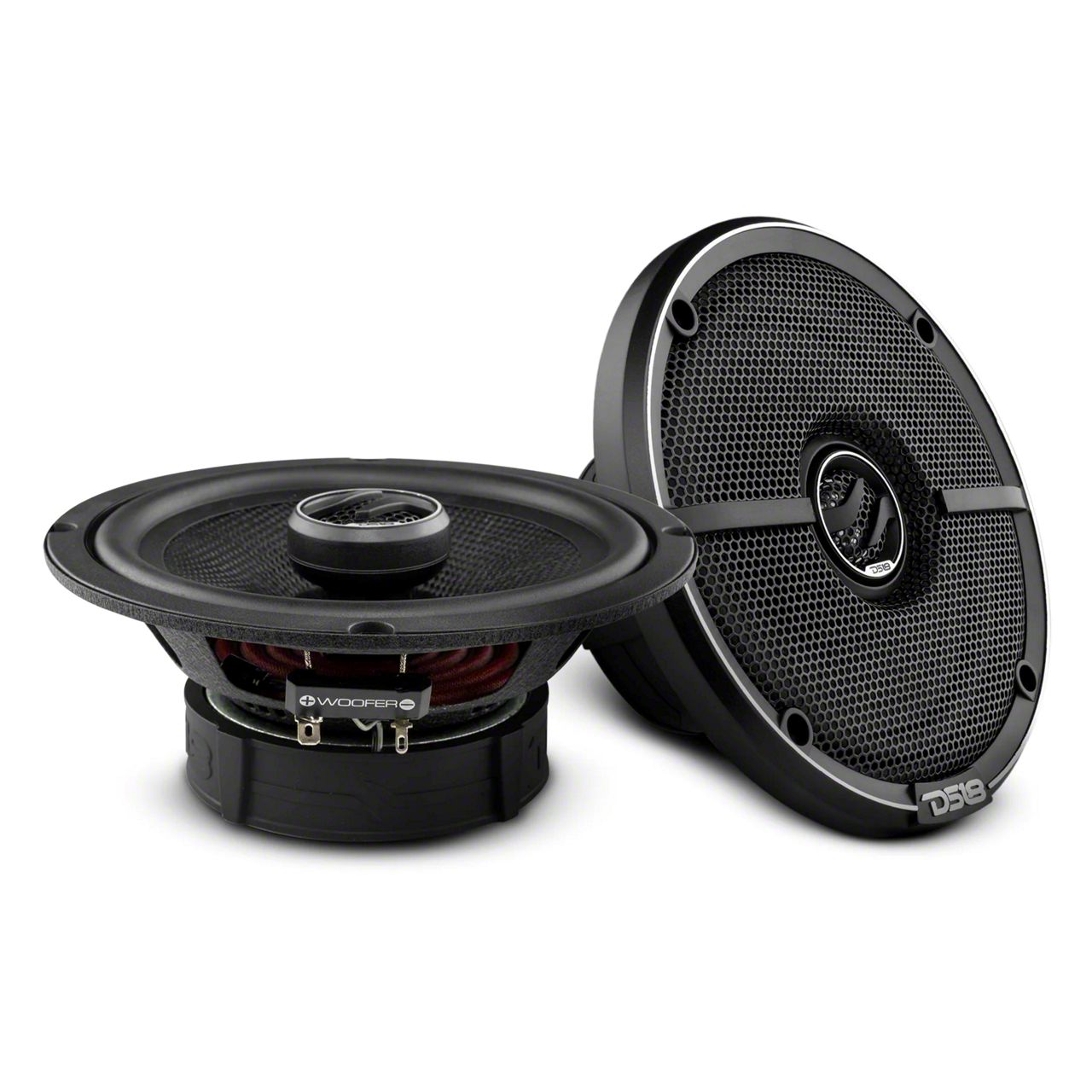

DS18 ZXI 6.50-Inch 2-Way Coaxial Speakers with Kevlar Cone; 240 Watts (Universal; Some Adaptation May Be Required)
Item NF1928
Our Price
$94.95 pair
Military, Medical & First Responders
$4.75 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features
- _x000D_
- 6.5" 2-Way Coaxial _x000D_
- Max Power 240 Watts _x000D_
- RMS Power 80 Watts _x000D_
- Impedance 4 Ohm _x000D_
- Barium Ferrite & Neodymium Magnets _x000D_
- Pair ~ 87dB _x000D_
- Nominal Diameter 6.5 Inches _x000D_
- Frequency Response 40 Hz - 20 KHz _x000D_
- Recommended High Pass 60 Hz _x000D_
- Voice Coil Diameter 25.5 mm (1 Inch) _x000D_
- Voice Coil Former Material KSV _x000D_
- Winding Material EISV _x000D_
- Cone Material Glass Fiber _x000D_
- Surround Material Rubber _x000D_
- Basket Material Steel _x000D_
- Magnet Material Barium Ferrite _x000D_
- Magnet Weight 14.46 oz / 410 g _x000D_
- Tweeter Nominal Diameter 25.4 mm (1 Inch) _x000D_
- Tweeter Voice Coil Diameter 20.4 mm (0.8 Inch) _x000D_
- Tweeter Voice Coil Former Material KSV _x000D_
- Tweeter Winding Material EISVM _x000D_
- Tweeter Diaphragm Material PEI _x000D_
- Tweeter Magnet Material Neodymium _x000D_
- Tweeter Magnet Weight 8.5 g / 0.3 oz _x000D_
- Vas 10.84 LTR _x000D_
- Xmax 2.7 mm _x000D_
- Fs 64 Hz _x000D_
- Qms 9.44 _x000D_
- Qes 0.79 _x000D_
- Qts 0.73 _x000D_
- Mms 13.72 g _x000D_
- Cms 444 mm / N _x000D_
- BL 5.1 _x000D_
- Le 228 mH _x000D_
- Sd 131 cm2 _x000D_
- Re 3.5 Ohm _x000D_
- Mmd 12 g _x000D_
- Overall Diameter 6.50 Inch (165 mm) _x000D_
- Overall Depth 72 mm (2.83 Inch) _x000D_
- Front Mount Baffle Cutout 141 mm (5.55 Inch) _x000D_
- Mounting Depth 60 mm (2.36 Inch) _x000D_
- Motor Diameter 94 mm (3.70 Inch) _x000D_
- Product Weight 5.5 Lbs _x000D_
- Product Dimensions 15.75 x 7.75 x 3.75 _x000D_
- M/C Weight 35 Lbs _x000D_
- M/C Dimensions 16.5 x 16.75 x 12.25 _x000D_
- M/C Quantity 6 _x000D_
- Sold In Pair _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
Description
Premium 2-Way Audio Solution. The DS18 ZXI 6.50-Inch 2-Way Coaxial Speakers with Kevlar Cone; 240 Watts are designed to enhance your car audio system by delivering powerful and clear sound with minimal distortion. Ideal for audiophiles seeking an upgrade, these speakers provide a full frequency response for an immersive listening experience.
_x000D__x000D_Construction and Appearance. Featuring a Kevlar cone woofer combined with a rubber surround for durability and vibration control, the speakers utilize barium ferrite and neodymium magnets for a balanced and efficient magnetic assembly. The tweeter employs a PEI diaphragm and neodymium magnet for precise high-frequency reproduction, all housed in a sturdy steel basket for longevity.
_x000D__x000D_Installation. These speakers offer straightforward installation with standard mounting specifications; minor adaptation may be required depending on vehicle setup. No drilling beyond standard speaker mounting provisions is typically necessary.
_x000D__x000D_Warranty. This product includes a 2-year warranty to ensure reliability and customer satisfaction.
_x000D__x000D_Application. Fits universal applications; some adaptation may be required.
DS18 ZXI-654
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (2) Coaxial Speakers
- Mounting Hardware
- Instruction Manual
