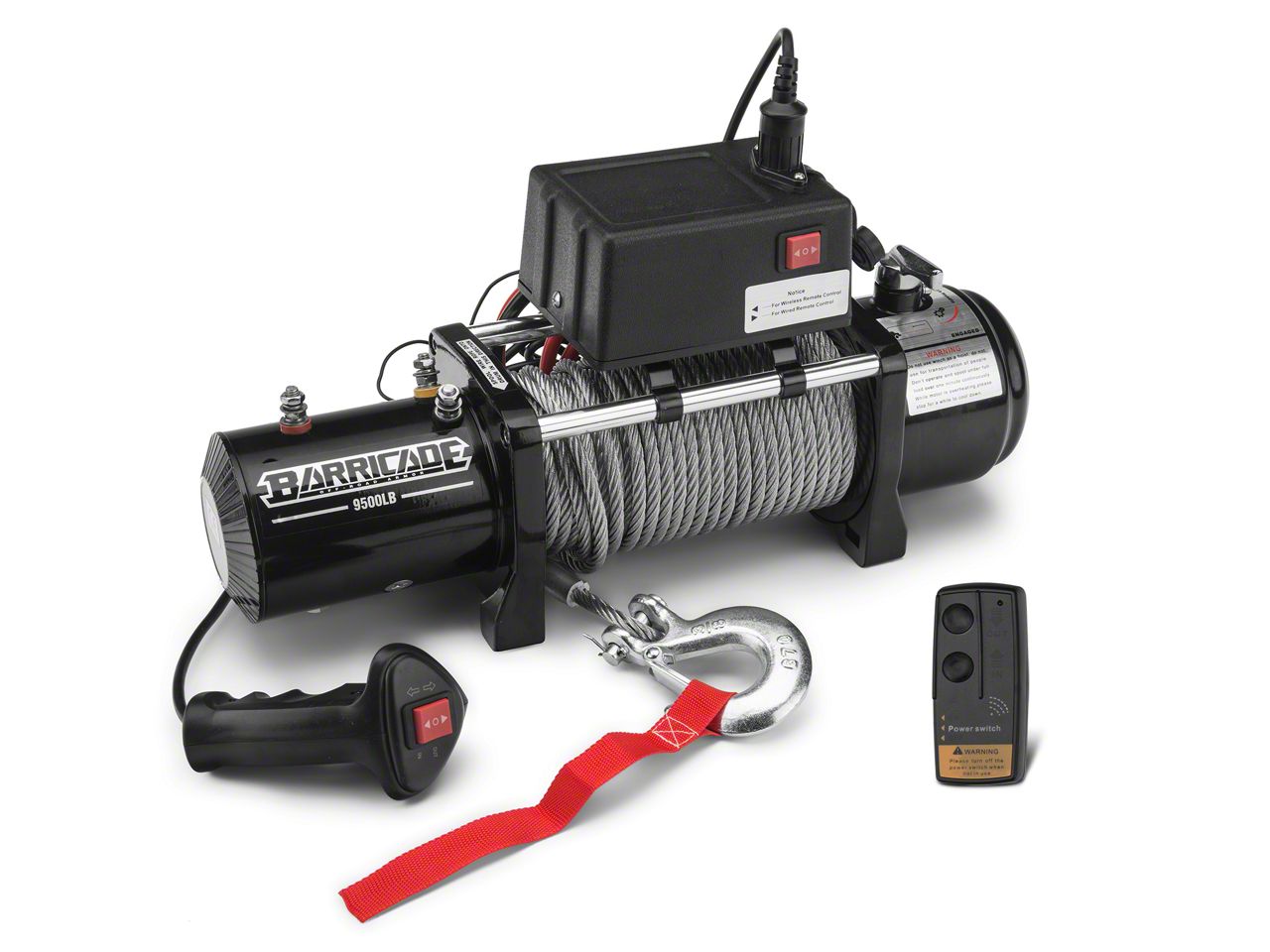

Barricade 9,500 lb. Winch with Wireless Control (Universal; Some Adaptation May Be Required)
Item TR9255
$266.39
277 Reviews
On Sale
-42% $266.39 Was $459.99
Coupon
Military, Medical & First Responders
Earn $26.64 in XT Cash Rewards. Get Verified
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- Wireless Remote Control Winch
- 9,500 Lb. Single-Line Pulling Capacity
- 5.5 Hp, 12 Volt, Series Wound Motor
- 3 Stage Planetary Gear with a 195.4:1 Ratio
- Full Load Line Speed is 6.4 Feet Per Minute
- 94 Foot Steel Cable
- Weighs 58 lbs
- Black Powder Coat Finish
- Optional Wired Remote Use
- Includes Roller Fairlead
- Universal Application
| Brand | Barricade |
| Winch Capacity | 9500 lbs |
| Winch Rope Type | Steel Cable |
| Winch Remote Type | Wireless |
Description
Remote Control. Barricade Off-Road takes the essentials of off road recovery to a new level with the Wireless Control 9500lb Winch. This winch provides additional safety measures by allowing you to stand back away from your 4Runner during the recovery process. It comes with a built in solenoid switch to select the wireless control or use of a wired control if the situation calls for it.
Pulling Capacity. This winch provides reliable pulling power for when you and your Toyota find yourselves stuck. Its 5.5hp, 12-volt motor with a gear ratio of 195.4:1 can recover your Toyota from the deepest mud or biggest rock jam.
Winch & Line Specs. This Barricade Off-Road winch comes with everything needed to get started, straight out of the box. The 94 feet of 21/64 of an inch steel winch cable is made to last you years and resist the elements you put it through. Matched with the two-way automatic, in-the-drum braking system you know you can always rely on this winch to hold your rig.
Accessories. This winch comes with a 21/64 inch steel winch cable, hook, wireless remote control, a remote control on a 12 foot lead, and a 4-way aluminum roller fairlead.
Application. This winch requires a battery with a minimum of 650 cold cranking amps to operate properly. Installs with a standard mounting footprint of 10 by 4.5 inches on all Toyota 4Runner.
Line Pull Speeds
- 0 lbs. - 35.4 ft./min
- 2000 lbs. - 14.8 ft./min
- 4000 lbs. - 11.2 ft./min
- 6000 lbs. - 9.5 ft./min
- 8000 lbs. - 7.87 ft./min
- 9500 lbs. - 6.43 ft./min
- Replacement Hardware – SKU U2401H
Barricade J101797
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Hexagon screw
- (1) Spring washer M5
- (1) Clutch handle
- (1) Nut cap
- (1) Cup gasket
- (1) Spring washer Φ20
- (2) O-ring
- (1) Gear box housing
- (1) Shaft sleeve
- (1) Sun gear
- (1) 3rd Planetary gear assy
- (1) Dual inner gear
- (1) 2nd Planetary gear assy
- (1) 1st Planetary gear assy
- (1) Sealing washer
- (4) Hexagon screw M8x25
- (4) Spring washer Φ8
- (1) Gear box bracket
- (10) Spring washer Φ4
- (10) Hexagon screw M4x20
- (2) Bearing bush
- (2) Sealing washer
- (1) Transmission shaft
- (1) Drum assembly
- (1) Brake assembly
- (2) Tie bar
- (1) Motor assembly
- (4) Cross Recess Head Screw M4.2x12
- (2) Mounting bracket assembly for control box
- (1) Control box assembly
- (1) Fairlead
- (1) 3/8" Hook
- (1) Wired remote control
- (1) Battery negative (-) cord 1.8M
- (1) Wireless remote control (Optional)
- (1) Mounting bolts and washers: 3/8" UNC x 1-1/4" stainless steel bolts and spring washers
- (1) Remote control lead: Remote switch, 12 ft (3.7 m) lead
- (1) Battery leads: 2 gauge, 72" (1.83 m)
- (1) 0.75mm2 brown switch control wire (S0107/08-31)
- (1) 0.75mm2 red switch control wire (S0107/08-32)
- (1) 0.75mm2 yellow switch control wire (S0107/08-33)
- (1) 0.75mm2 yellow remote control wire (S0107/08-34)
- (1) 0.75mm2 white remote control wire (S0107/08-35)
- (1) 0.75mm2 red remote control battery “+” (S0107/08-36)
- (1) 0.75mm2 black remote control battery “-” (S0107/08-37)
- (1) Green antenna (S0107/08-38)
- (1) 0.4 m short Black Cable with Yellow Terminal Sleeve (S0107/08-39)
- (1) 1.8 m long red battery cable “+” (S0107/08-40)
- (1) 0.4 m black motor cable with black sleeve (S0107/08-41)
- (1) Black Cable with Black Sleeve (0.75mm x 0.45m; earth) (S0107/08-42)
- (1) 0.4 m Short Red Cable with Red Terminal Sleeve (S0107/08-43)
- (1) Receiver for remote (S0107/08-44)
- (1) U Type Strap - Aluminum (S0107/08-45)
- (1) Solenoid 12V (S0107/08-46A) or Solenoid 24V (S0107/08-46B)
