2017-2024
2004-2015
Installation Time
(approx) 30 Minutes
Difficulty Level:
Simple installation for anyone.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details
Find for your Titan

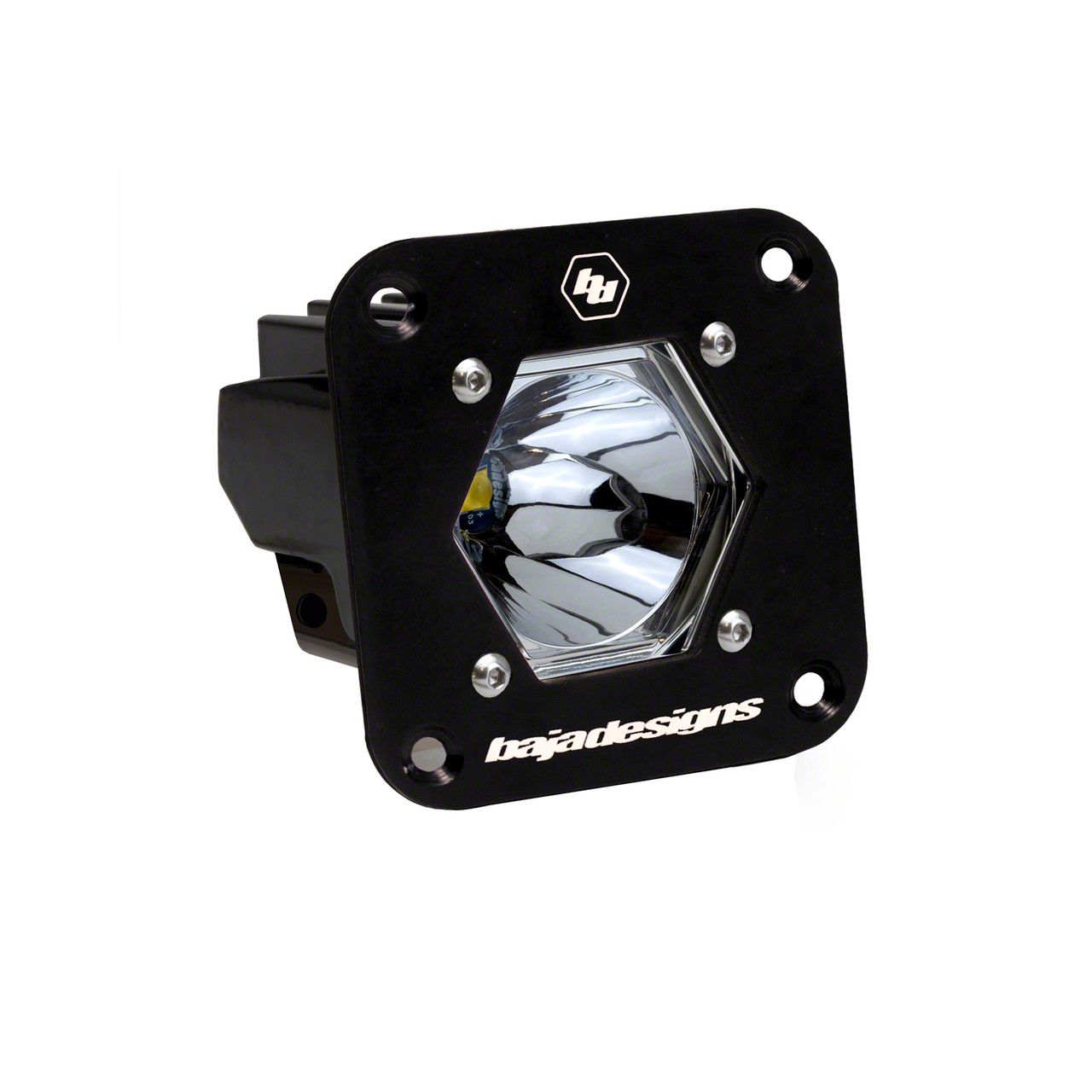

Baja Designs S1 Flush Mount Auxiliary Light Pod; Wide Cornering Beam; Clear (Universal; Some Adaptation May Be Required)
Item NT14525
Our Price
$147.35 each
Military, Medical & First Responders
$7.37 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Overvoltage Protection Built-In _x000D_
- Product Type S1 Flush Mount LED Light Pod _x000D_
- Voltage 9-28 V _x000D_
- Wattage 19.6 Watts _x000D_
- Wiring Harness Not Included _x000D_
- Amperage Rating 1.42 Amps _x000D_
- Average Rated Life 49,930 Hours _x000D_
- Beam Pattern Wide Cornering _x000D_
- Bezel Material Powder Coated Cast Aluminum _x000D_
- Brightness 2,320 Lumens _x000D_
- Description Flush Mount Wide Cornering Clear Lens _x000D_
- Housing Color Black _x000D_
- Housing Material Hard Anodized and Powder Coated Cast Aluminum _x000D_
- Lens Color Clear _x000D_
- Lens Material Hardcoated Polycarbonate _x000D_
- Light Quantity 1 _x000D_
- Lighting Modes Beam _x000D_
- Lighting Technology LED _x000D_
- Lighting Type Forward Projecting _x000D_
- Mounting Hardware Included Yes _x000D_
- Mounting Hardware Material Stainless Steel _x000D_
- Durability Exceeds MIL-STD810G Mil-Spec Testing _x000D_
- Impact Resistance IK10 Compliant Mechanical Impact Testing _x000D_
- Water Resistance IP69K Waterproof Up To 9ft and Pressure Washable _x000D_
- Depth 2.1 Inches _x000D_
- Height 2.1 Inches _x000D_
- Length 2.1 Inches _x000D_
- Weight 0.4 Pounds _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Baja Designs |
| Bulb Type | LED |
| Light Shape | Square |
| Light Size | 2 to 2.75 Inch |
Description
Compact High-Performance Lighting. The Baja Designs S1 Flush Mount Auxiliary Light Pod with a Wide Cornering Beam and Clear Lens delivers powerful, compact LED illumination engineered for exceptional trail coverage. Ideal for off-road driving, campsite lighting, and other versatile uses, it offers 2,320 lumens of bright, focused light through specialized optics.
_x000D__x000D_Construction and Appearance. Crafted with a hard anodized and powder coated cast aluminum housing finished in black, this light pod offers excellent corrosion resistance and durability. The lens is made from hardcoated polycarbonate for impact resistance and clarity, while the bezel is powder coated cast aluminum. Stainless steel mounting hardware ensures secure and lasting installation.
_x000D__x000D_Installation. Installation is simplified by the design which allows mounting using a single 2.5-inch hole saw cut. Basic drilling is required, making the process accessible and straightforward for most vehicle setups without complicated modifications.
_x000D__x000D_Warranty. This product is backed by a limited lifetime warranty, providing confidence against manufacturing defects and ensuring long-term reliability.
_x000D__x000D_Application. The light pod is designed for universal fitment, adaptable to a wide range of vehicles with possible minor modifications required to suit specific installations.
Baja Designs 381005
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) S1 Flush Mount Auxiliary Light Pod
4.7
Reviews of Baja Designs Lights Products (162)
Questions & Answers
No questions about this product yet.
Ask the First Question
