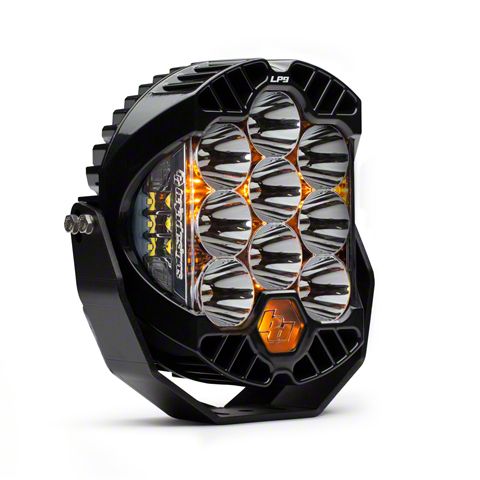

Baja Designs LP9 Racer LED Auxiliary Light Pod; Racer Spot Beam; Clear (Universal; Some Adaptation May Be Required)
Item NT15773
Our Price
$736.95
Military, Medical & First Responders
$36.85 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- IP69K Waterproof Up To 9Ft & Pressure Washable
- Patent Number 5,504,603
- Exceeds MIL-STD-810G Military Specification Testing
- IK10 Compliant Mechanical Impact Resistance
- Depth Measures 3.25 Inches
- Height Measures 8 Inches
- Length Measures 8 Inches
- Weight Is 6.5 Pounds
- Amperage Rating Is 9.6 Amps
- Average Rated Life Is 49,930 Hours
- Backlight Amperage Rating Is 0.2 Amps
- Backlight Wattage Is 2.8 Watts
- Beam Pattern Is Racer Edition Spot
- Bezel Material Is Powder Coat Cast Aluminum
- Brightness Measures 8,374 Lumens
- Description Is Racer Edition Spot Clear
- Housing Color Is Black
- Housing Material Is Powder Coat Cast Aluminum
- Lens Material Is Hardcoated Polycarbonate
- Light Quantity Is 1
- Lighting Modes Include High Beam, Low Beam, Daytime Running, Backlighting
- Lighting Quantity Is 9
- Lighting Technology Is LED
- Lighting Type Is Forward Projecting
- Mounting Hardware Included
- Mounting Hardware Material Is Stainless Steel
- Built-In Overvoltage Protection
- Product Type Is LP9 Racer Edition LED Light Pod
- Secondary Amperage Rating Is 1.52 Amps
- Secondary Brightness Is 2,302 Lumens
- Secondary Light Quantity Is 6 LEDs
- Secondary Lighting Technology Is LED
- Secondary Lighting Type Is Integrated Peripheral Technology (IPT)
- Secondary Wattage Is 21 Watts
- Terminal Connector Is DT06-4S Deutsch
- Terminal Type Is Mating Connector
- Wattage Is 132.48 Watts
- Wiring Harness Not Included
- Fits Universal; Some Adaptation May Be Required
| Brand | Baja Designs |
| Bulb Type | LED |
| Light Shape | Round |
| Light Size | 8 Inch and Up |
Description
Performance LED Lighting. The Baja Designs LP9 Racer LED Auxiliary Light Pod; Racer Spot Beam; Clear is engineered to deliver outstanding illumination for high-speed off-road adventures. It features a focused spot beam pattern that enhances long-range visibility in dynamic environments, making it crucial for trail and race conditions.
Construction and Appearance. This light pod is built with a durable powder-coated cast aluminum housing finished in black for superior corrosion resistance and ruggedness. The lens is made of hardcoated polycarbonate, providing impact resistance and clear light transmission. Included stainless steel mounting hardware ensures secure installation.
Installation. Installation is straightforward with the included stainless steel hardware, typically requiring no complex modifications. Depending on the mounting location, minor adaptation may be necessary to ensure a proper fit without drilling.
Warranty. The product is backed by a limited lifetime warranty that offers comprehensive purchase protection.
Application. Designed as a universal fit, some adaptation may be needed to accommodate specific mounting setups or vehicle configurations.
Baja Designs 330001
