Baja Designs LP4 Pro LED Auxiliary Light Pods with Blue Backlight; Driving/Combo Beam; Clear (Universal; Some Adaptation May Be Required)
Item NT14502
Our Price
$963.55 set
Military, Medical & First Responders
$48.18 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Built-In Overvoltage Protection _x000D_
- LP4 Pro LED Light Pod Pair with Wiring Harness Included _x000D_
- Amperage Rating 5.5 Amps _x000D_
- Brightness 8857 Lumens _x000D_
- Beam Pattern Spot/Driving Combo _x000D_
- Lighting Technology LED _x000D_
- Lighting Modes Beam and Day-Time Running Backlighting _x000D_
- Lighting Type Forward Projecting with Integrated Peripheral Technology (IPT) providing 200-degree side illumination _x000D_
- Light Quantity 2 Pods, each with 4 LEDs _x000D_
- Secondary Amperage Rating 1.000 Amps _x000D_
- Secondary Brightness 1972 Lumens _x000D_
- Secondary Wattage 15 Watts _x000D_
- Terminal Connector DT06-4S Deutsch, Mating Connector Terminal Type _x000D_
- Universal Fit; Some Adaptation May Be Required _x000D_
- Wattage 75.9 Watts _x000D_
- Average Rated Life 49,930 Hours _x000D_
- Backlight Amperage Rating 0.350 Amps _x000D_
- Backlight Wattage 4.83 Watts _x000D_
- Bezel and Housing Material Powder-Coated Cast Aluminum _x000D_
- Housing Color Black _x000D_
- Lens Material Hardcoated Polycarbonate, Lens Color Clear _x000D_
- Mounting Hardware Included, Stainless Steel Material _x000D_
- Exceeds MIL-STD810G Durability Standards _x000D_
- IK10 Impact Resistance Compliance _x000D_
- IP69K Water Resistance; Waterproof up to 9ft and Pressure Washable _x000D_
- Dimensions: Depth 3.2", Height 5.1", Length 5.1" _x000D_
- Weight 2.8 Pounds _x000D_
| Brand | Baja Designs |
| Bulb Type | LED |
| Light Shape | Square |
| Light Size | 3 to 3.75 Inch |
Description
High-Performance LED Lighting. The Baja Designs LP4 Pro LED Auxiliary Light Pods with Blue Backlight and Driving/Combo Beam provide intense, highly efficient off-road illumination. Designed to deliver a combination of forward and wide peripheral lighting, these pods significantly enhance visibility in rugged environments, improving safety and driving confidence.
_x000D__x000D_Durable Construction and Sleek Appearance. Featuring a robust powder-coated cast aluminum housing for excellent strength and corrosion resistance, these light pods also include clear hardcoated polycarbonate lenses that protect the advanced LED elements. The black finish delivers a sleek, functional aesthetic suitable for various vehicle styles.
_x000D__x000D_Easy Installation. Installation is straightforward with the included stainless-steel mounting hardware and wiring harness, typically requiring no drilling, making it accessible for most automotive enthusiasts.
_x000D__x000D_Warranty. The product is backed by a limited lifetime warranty, ensuring long-lasting performance and customer protection.
_x000D__x000D_Application. Designed for universal applications, though some adaptation may be necessary depending on specific vehicle setups or mounting preferences.
Baja Designs 297815
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box

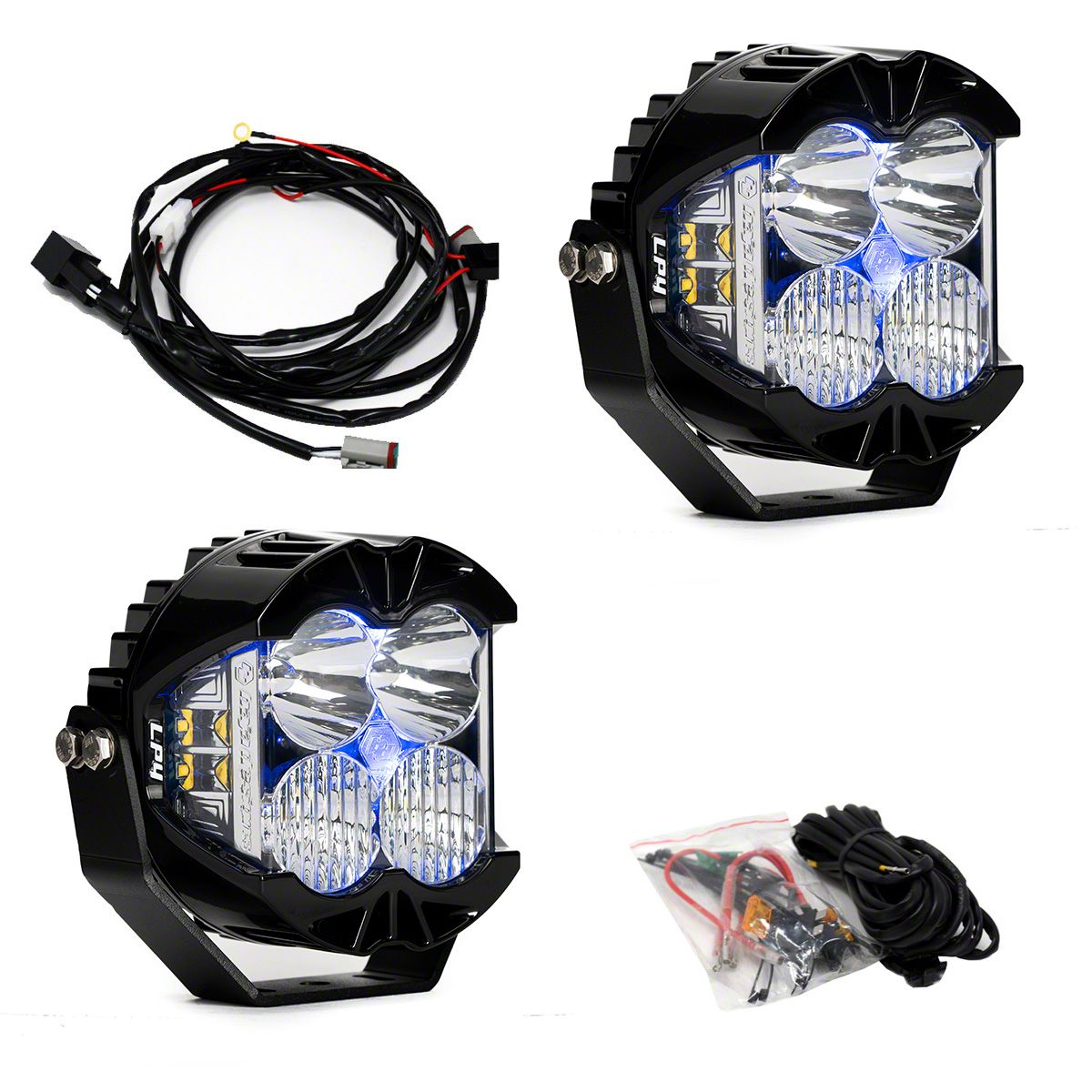

- (2) LP4 Pro Led Light Pods
- (1) Splitter
- (2) Mounting Brackets
- Wiring Harness
- Installation Hardware
