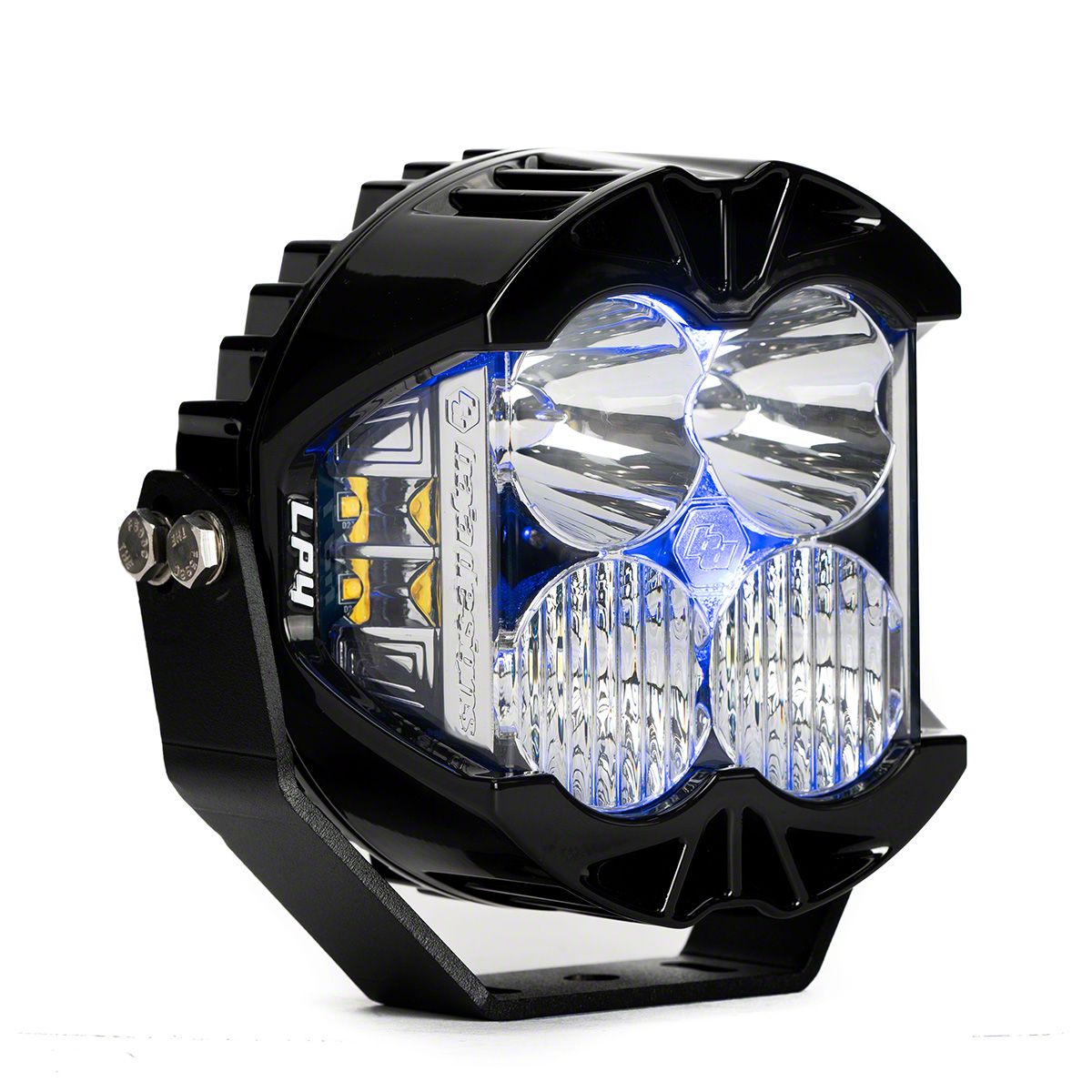

Baja Designs LP4 Pro LED Auxiliary Light Pod with Blue Backlight; Driving/Combo Beam; Clear (Universal; Some Adaptation May Be Required)
Item NT14496
Our Price
$437.95 each
Military, Medical & First Responders
$21.90 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Lens Color Clear _x000D_
- Lens Material Hardcoated Polycarbonate _x000D_
- Light Quantity 1 _x000D_
- Lighting Modes Beam/Day-Time Running Backlighting _x000D_
- Lighting Quantity 4 _x000D_
- Lighting Technology LED _x000D_
- Lighting Type Forward Projecting _x000D_
- Mounting Hardware Included Yes _x000D_
- Mounting Hardware Material Stainless Steel _x000D_
- Overvoltage Protection Built-In _x000D_
- Product Type LP4 Pro LED Light Pod _x000D_
- Secondary Amperage Rating 1.000 Amp _x000D_
- Secondary Brightness 1972 Lumens _x000D_
- Secondary Light Quantity 4 LEDs _x000D_
- Secondary Lighting Technology LED _x000D_
- Secondary Lighting Type Integrated Peripheral Technology (IPT) _x000D_
- Secondary Wattage 15 Watts _x000D_
- Terminal Connector DT06-4S Deutsch _x000D_
- Terminal Type Mating Connector _x000D_
- Wattage 75.9 Watts _x000D_
- Amperage Rating 5.5 Amp _x000D_
- Average Rated Life 49930 Hours _x000D_
- Backlight Amperage Rating 0.35 Amp _x000D_
- Backlight Wattage 4.83 Watts _x000D_
- Beam Pattern Spot _x000D_
- Bezel Material Powder Coat Cast Aluminum _x000D_
- Brightness 8857 Lumens _x000D_
- Description Spot Clear _x000D_
- Housing Color Black _x000D_
- Housing Material Powder Coat Cast Aluminum _x000D_
- Standards Compliance Durability Exceeds MIL-STD810G _x000D_
- Standards Compliance Impact Resistance IK10 Compliant _x000D_
- Standards Compliance Water Resistance IP69K Waterproof up to 9ft and Pressure Washable _x000D_
- Depth 3.2 Inches _x000D_
- Height 5.1 Inches _x000D_
- Length 5.1 Inches _x000D_
- Weight 2.8 Pounds _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Baja Designs |
| Bulb Type | LED |
| Light Shape | Square |
| Light Size | 3 to 3.75 Inch |
Description
Powerful LED Lighting. The Baja Designs LP4 Pro LED Auxiliary Light Pod with Blue Backlight; Driving/Combo Beam; Clear offers exceptional illumination for off-road and auxiliary lighting needs. It provides a broad 200-degree light spread with high-intensity forward projection and integrated peripheral lighting to enhance visibility in various driving conditions.
_x000D__x000D_Construction and Appearance. This light pod is constructed with a powder-coated cast aluminum housing and a hardcoated polycarbonate lens, ensuring durability and resistance to the elements. The black finish gives it a sleek, professional look while providing rugged protection for long-term use.
_x000D__x000D_Installation. Installation is straightforward, utilizing included stainless steel mounting hardware for secure attachment. No specialized drilling or modifications are typically required, making it suitable for both professional and DIY installation.
_x000D__x000D_Warranty. The product comes with a Lifetime Limited Warranty, offering confidence in longevity and performance.
_x000D__x000D_Application. Designed as a universal fit, this light pod may require some adaptation for installation depending on the vehicle and mounting location.
Baja Designs 290015
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) LED Auxiliary Light Pod
