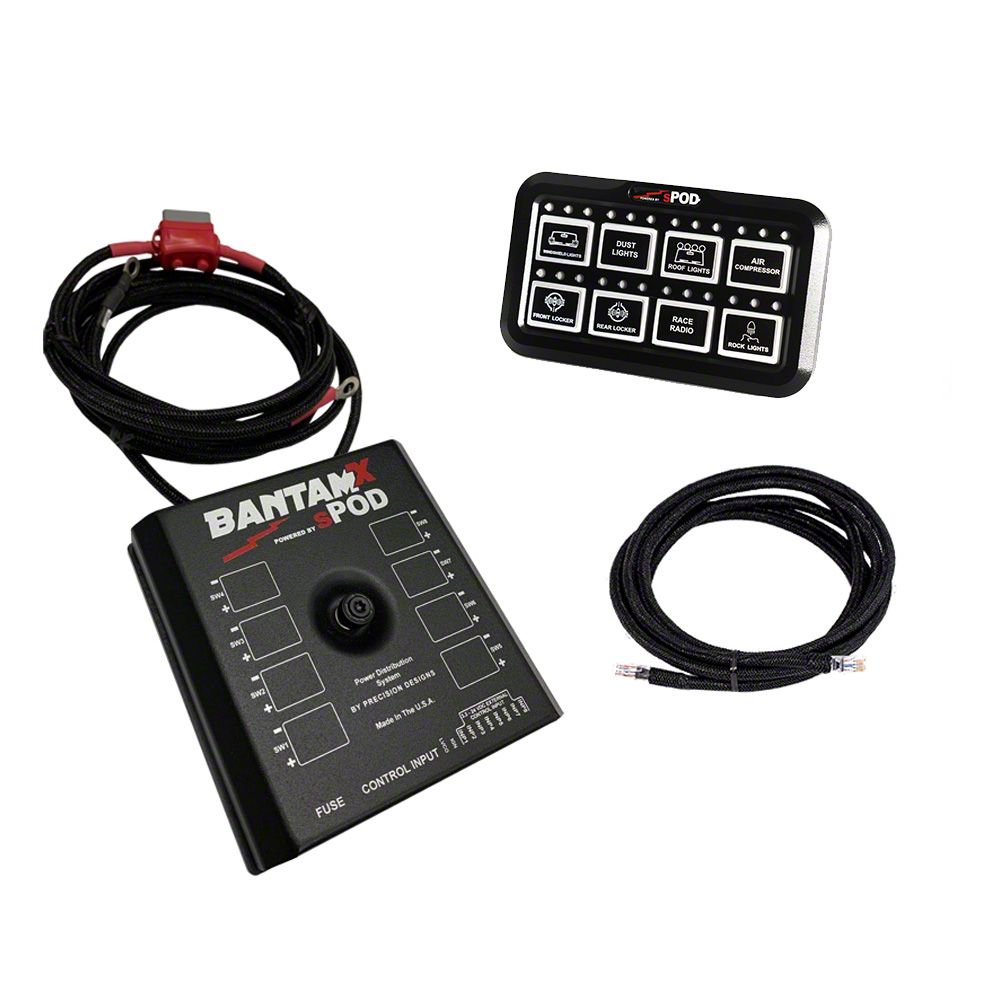

sPOD BantamX HD with 36-Inch Battery Cables (Universal; Some Adaptation May Be Required)

Item JR5081
Product Image
1 Reviews of sPOD
Our Price

$1,006.50

Military, Medical & First Responders $50.33 Available in XT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

        _x000D_
      • Fully Programmable Digital Controlled System
        • _x000D_
      • Eight Circuits Rated At 30 Amps At 12.5 Vdc Per Circuit
        • _x000D_
      • Sixteen Position Terminal Block For Easy Attachment Of Accessories
        • _x000D_
      • Two Controller Ports (RJ45) For Ethernet Cables
        • _x000D_
      • Integrated Low Voltage Cutoff Battery Protection With Optional Override
        • _x000D_
      • One ATM Mini Style Fuse For LVCO Protection And Reset
        • _x000D_
      • Failsafe Self-Healing Fault Protection From 1.5 To 30 Amps
        • _x000D_
      • Current-Sensing Mosfets Controlled By Microprocessor (No Fuses Or Relays)
        • _x000D_
      • 100 Amp In-Line Fuse
        • _x000D_
      • Nylon Braided Battery Cables Made Of Hi-Strand Crosslinked Copper Wire With Silicone Jacket
        • _x000D_
      • Operates On 12VDC Or 24VDC
        • _x000D_
      • Eight Position Input Terminal Block For Controlling Outputs
        • _x000D_
      • Built-In Bluetooth Capabilities For Remote Control
        • _x000D_
      • Protection Against Overheating, Over-Current, Shorts, Reverse Polarity, And Field Collapse
        • _x000D_
      • Ignition Control And Safety Lock-Out For Switches 1 And 2 (Optional)
        • _x000D_
      • On-Demand Wireless Software Updates And Upgrades
        • _x000D_
      • HD Control Panel Encased In Black Powder Coated Aluminum Billet Machined Housing
        • _x000D_
      • Silicone Buttons With Positive Touch Feedback And Weather-Resistant Design
        • _x000D_
      • Compact Size With Universal Back And Multiple Mounting Options
        • _x000D_
      • HD Panel Features RJ45 Jack And Comes With 10 Foot CAT-6 Ethernet Cable
        • _x000D_
      • Bluetooth LE For Programming Via Free sPOD App On Compatible iOS And Android Devices
        • _x000D_
      • RGB Backlit Switches With Adjustable Color And Intensity
        • _x000D_
      • Multiple Programmable Functions for Each Switch Including Dimming, Flash, Strobe, And Linking
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      Advanced Power Management. The sPOD BantamX HD with 36-Inch Battery Cables is a sophisticated 8-circuit power control system designed to efficiently manage and safeguard 12/24VDC accessories in automotive applications. Its compact design simplifies installation by eliminating complex wiring, delivering a clean setup with just one Ethernet cable routed into the cabin. This system ensures reliable operation while providing extensive programmability and multiple safety protections.

      _x000D__x000D_

      Construction and Appearance. Constructed with a powder-coated steel base and a durable aluminum billet machined housing for the HD control panel, this system combines robustness with a sleek, professional finish. Silicone buttons provide tactile feedback and resilience against weather, while nylon braided battery cables with a silicone jacket guarantee longevity and resistance to environmental stresses.

      _x000D__x000D_

      Installation. Installation is user-friendly, requiring minimal wiring effort and no cutting or tapping into the vehicle’s factory electrical system. Universal mounting options and included hardware allow for flexible and secure placement using basic tools, typically without drilling.

      _x000D__x000D_

      Warranty. The product comes with a manufacturer's warranty for your peace of mind.

      _x000D__x000D_

      Application. This control system features universal compatibility, suitable for a wide range of vehicles though some adaptation may be necessary depending on specific setup and mounting preferences.

      sPOD BXHDUNI36
