Installation Time
(approx) 2 Hours
Difficulty Level:
Light to Moderate mechanical skill required.
FREE 1 to 3-Day Delivery on Orders $119+ Details
Talk to a 4Runner Sales Tech
1-877-870-8556
M-F 8:30A-11P, Sat-Sun 8:30A-9P

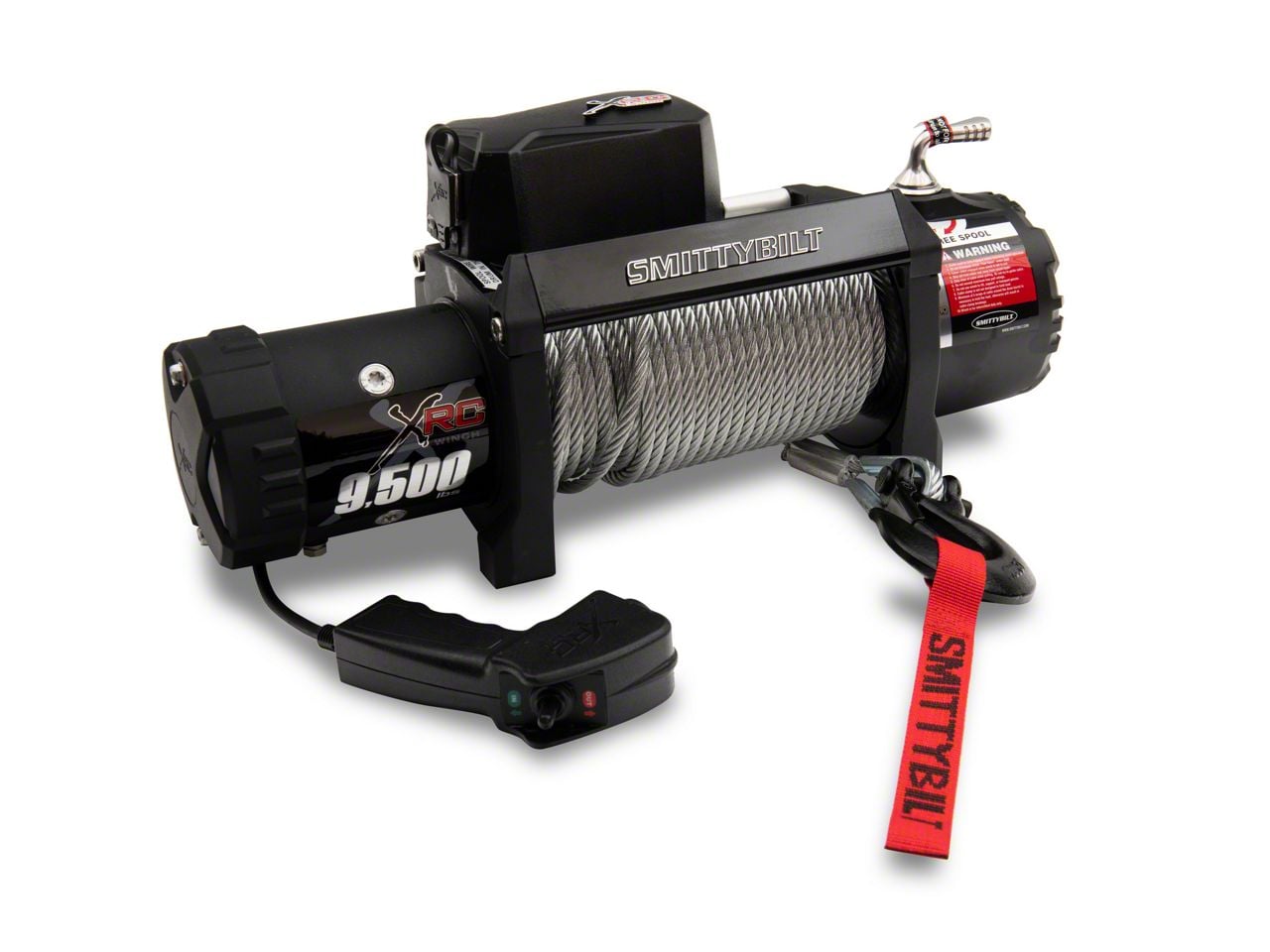

Smittybilt XRC Gen2 9.5K Waterproof 9,500 lb. Winch (Universal; Some Adaptation May Be Required)
Item TR9277
$0.00
Our Price
$359.00
FREE Shipping Market Price $419.99 You Save 15% ($60.99) Up to 10% off for Military & First Responders! See Details
Ship to: Columbus - 43215
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- 9,500 lb. Single-Line Pull Rating
- 6.6 Horsepower Series Wound Motor
- 3-Stage Planetary Gear with 161.28:1 Gear Ratio
- 93.5' Steel Cable Included
- Wired Remote Switch with 12' Lead
- Stainless Steel Hardware with Aluminum Crossbars
- Textured Black, UV Resistant
- Overall Dimensions: 22.3" x 5.4" x 9.4"
- Automatic In-Drum Brake
- 10.0" x 4.5" Bolt Pattern
- Weight: 78 Lbs.
- Lifetime Mechanical and 3-Year Electrical Warranty
- Fits Toyota 4Runners
| Brand | Smittybilt |
| Winch Capacity | 9500 lbs |
| Winch Rope Type | Steel Cable |
| Winch Remote Type | Wired |
Description
Strong and Fast. Be prepared for what the trails may throw at you. One of the best ways to be prepared is by having a well-made winch that can get you out of sticky situations quickly. Smittybilt's Gen2 XRC 9,500 lb. Winch features a 6.6 HP motor with a 3-Stage Planetary Gear system for a quick recovery. Its reversed gear ratio enables optimum pulling power while still performing at lightning-fast line speeds.
Lasts a Lifetime. Smittybilt's winch is finished with a rugged UV-resistant matte black coating. The hardware is stainless steel with aluminum crossbars. This winch has a 161.28:1 gear ratio that will easily pull up to 9,500 lbs. Not only does the system look great, it will also last you a lifetime.
Additional Features. The Smittybilt Gen2 XRC 9,500 lb. Winch features a 4-way roller fairlead and sliding ring gear mounting clutch that will keep the cable from easily snapping.
Installation. The Smittybilt XRC mounts using a 10.0" x 4.5" bolt pattern. A remote control is included to enable you to instruct the winch both by the winch itself and at a safe distance from whatever you're pulling. A 650CCA battery is recommended as a minimum requirement for winching.
Lifetime Warranty. To ensure you receive the highest standards, Smittybilt has included lifetime mechanical and 3-year electrical warranties. The winch shall be free from mechanical defects for the life of the Gen2 XRC Winch. With respect to electrical components, this winch shall be free of defects in material and workmanship for 3 years from the date of purchase. Subject to the terms and conditions, please see manufacturer's warranties for details.
Application. This Smittybilt Gen2 XRC 9,500 lb. Winch will fit Toyota 4Runner models.
Smittybilt 97495
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- Heavy Duty Winch
- Four-Way Roller Fairlead
- Forged Steel Tow Hook
- Solenoid Box
