Jeep Renegade BU Spark Plug Specifications (2015-2023)

Renegade BU Spark Plug Specifications by Engine

The Jeep Renegade BU uses iridium spark plugs across all engine options. The 1.4L requires a 0.026-inch gap, the 1.6L E-Torque needs a 0.039-inch gap, and the 2.4L Tigershark uses a 0.047-inch gap. Getting the right renegade bu spark plug specs for your engine is the difference between a smooth-running Renegade and one that misfires, stumbles, or wastes fuel.

Use the table below to find the exact specifications for your engine. If you are upgrading or replacing other ignition components at the same time, check out the full selection of Renegade BU ignition parts.

Important: Always verify the gap on new plugs with a feeler gauge before installation. Some plugs ship pre-gapped, but shipping and handling can change the setting.

Why Spark Plug Gap Matters

The spark plug gap controls how far the electrical arc has to jump to ignite the air-fuel mixture in each cylinder. A gap set to factory spec delivers a strong, consistent spark that burns fuel completely. A gap that is too wide or too narrow disrupts that combustion cycle and causes real problems you will feel behind the wheel.

If your gap is too wide, the ignition coil has to push harder to bridge the distance. That leads to misfires — especially under load, like merging onto the highway or climbing a grade. You may also notice rough idle, hesitation on acceleration, and a check engine light with misfire codes (P0300-P0304).

If your gap is too narrow, the spark fires easily but lacks the energy to fully ignite the mixture. The result is incomplete combustion, reduced power, higher fuel consumption, and elevated emissions. Your Renegade will run, but it will not run well.

Bottom line: check your gap with a feeler gauge every time you install new plugs, even if the box says "pre-gapped." It takes thirty seconds and prevents headaches down the road.

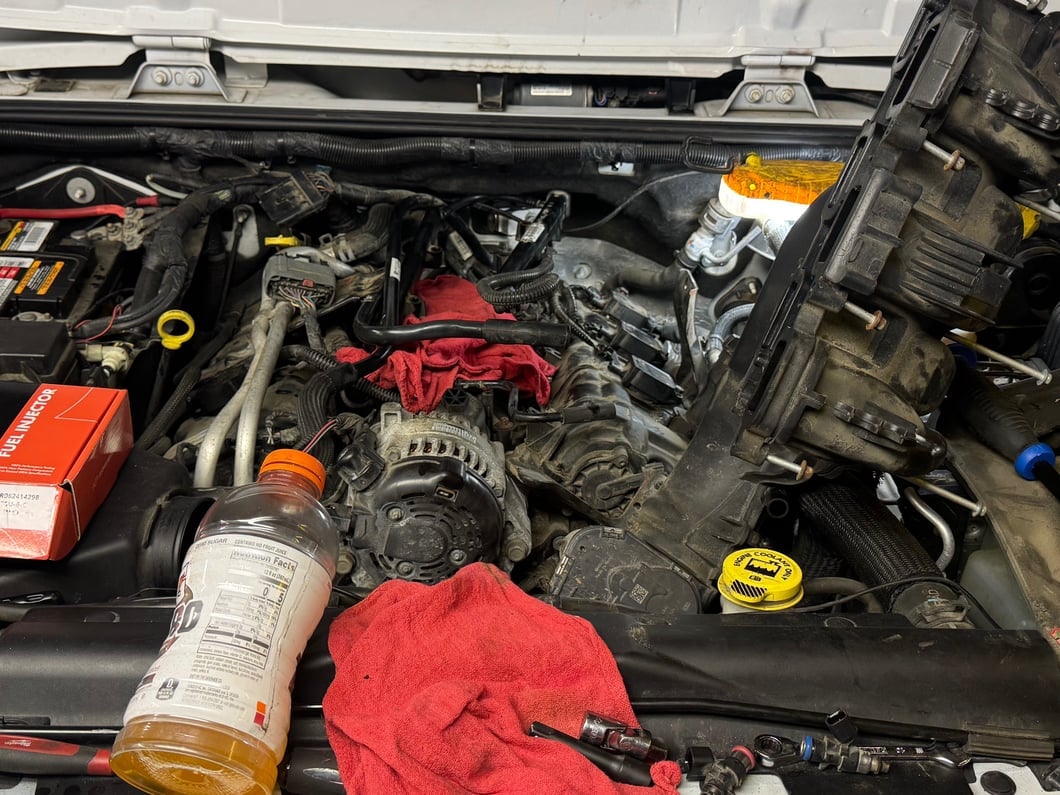

How to Change Spark Plugs on a Jeep Renegade BU

Replacing spark plugs on your Renegade BU is a straightforward job that most DIYers can handle in under an hour. You do not need a lift or special dealer tools — just a basic socket set, the correct plugs, and a little patience. If you are also shopping for Renegade engine performance parts, a spark plug swap is a good time to inspect coil packs and boots too.

Tools You Will Need

• 3/8-inch ratchet with extension
• Spark plug socket (5/8-inch or 16mm, depending on plug brand)
• Torque wrench (inch-pound or foot-pound)
• Feeler gauge set
• Dielectric grease
• Anti-seize compound (optional, check your plug manufacturer's recommendation)
• Compressed air or a shop vac

Step-by-Step Replacement

1. Let the engine cool. Work on a cold engine to avoid burns and reduce the risk of cross-threading plugs in an expanded aluminum head.
2. Remove the engine cover. Pop off the plastic engine cover to access the ignition coil packs.
3. Disconnect the ignition coil. Press the tab on the electrical connector and pull it straight off. Do one cylinder at a time so you do not mix up the wiring order.
4. Remove the coil pack. Unbolt the single fastener holding the coil pack, then twist and pull the coil straight up and out.
5. Clean the spark plug well. Use compressed air or a shop vac to blow debris out of the well before removing the plug. Any dirt that falls into the cylinder can cause damage.
6. Remove the old spark plug. Use your spark plug socket and ratchet to loosen the plug counterclockwise, then remove it by hand.
7. Check the gap on the new plug. Use a feeler gauge to verify the gap matches your engine's specification from the table above. Adjust if needed.
8. Install the new plug. Thread the plug in by hand first to prevent cross-threading. Once hand-tight, torque to spec: 10.8-18 lb-ft for cast iron heads, 10.8-14.5 lb-ft for aluminum heads.
9. Reinstall the coil pack. Drop it back into the well, bolt it down, and reconnect the electrical connector until it clicks.
10. Repeat for remaining cylinders. Work one at a time.
11. Reinstall the engine cover and start the engine. Let it idle for a minute and listen for smooth operation.

Tips for a Clean Swap

• Apply a thin coat of dielectric grease inside the coil boot to make future removal easier and protect the connection from moisture.
• Never use a universal joint or wobble extension on a spark plug socket — you need straight, even force to avoid cracking a ceramic insulator.
• If a plug feels stuck, apply penetrating oil around the base, let it soak for 15 minutes, and try again. Forcing a seized plug in an aluminum head can strip the threads.
• Label or photograph your coil connections before you start if your Renegade has aftermarket wiring or accessories in the engine bay.

When to Replace Spark Plugs

Replace Jeep Renegade BU spark plugs every 30,000 miles for copper plugs or up to 100,000 miles for iridium plugs. Your actual interval depends on plug type, driving conditions, and how hard you push your Renegade.

Here is a quick reference by plug material:

• Copper: 20,000-30,000 miles. Affordable but wears fast. Best for owners who want maximum conductivity and do not mind frequent changes.
• Platinum: 60,000-80,000 miles. A solid middle ground between cost and longevity.
• Iridium: 80,000-100,000 miles. The OEM recommendation for the Renegade BU. Longest life and most consistent performance.

Do not wait for a scheduled interval if you notice any of these symptoms:

• Rough or uneven idle
• Hesitation or stumbling on acceleration
• Noticeable drop in fuel economy
• Engine misfires or a flashing check engine light
• Hard starts, especially in cold weather
• Lack of power under load

If you are experiencing any of these issues, pull a plug and inspect it. Heavy carbon buildup, worn electrodes, or a cracked insulator means it is time for a fresh set. For more on keeping your rig running right, check out the Jeep maintenance guide and browse internal engine parts for the Renegade BU.

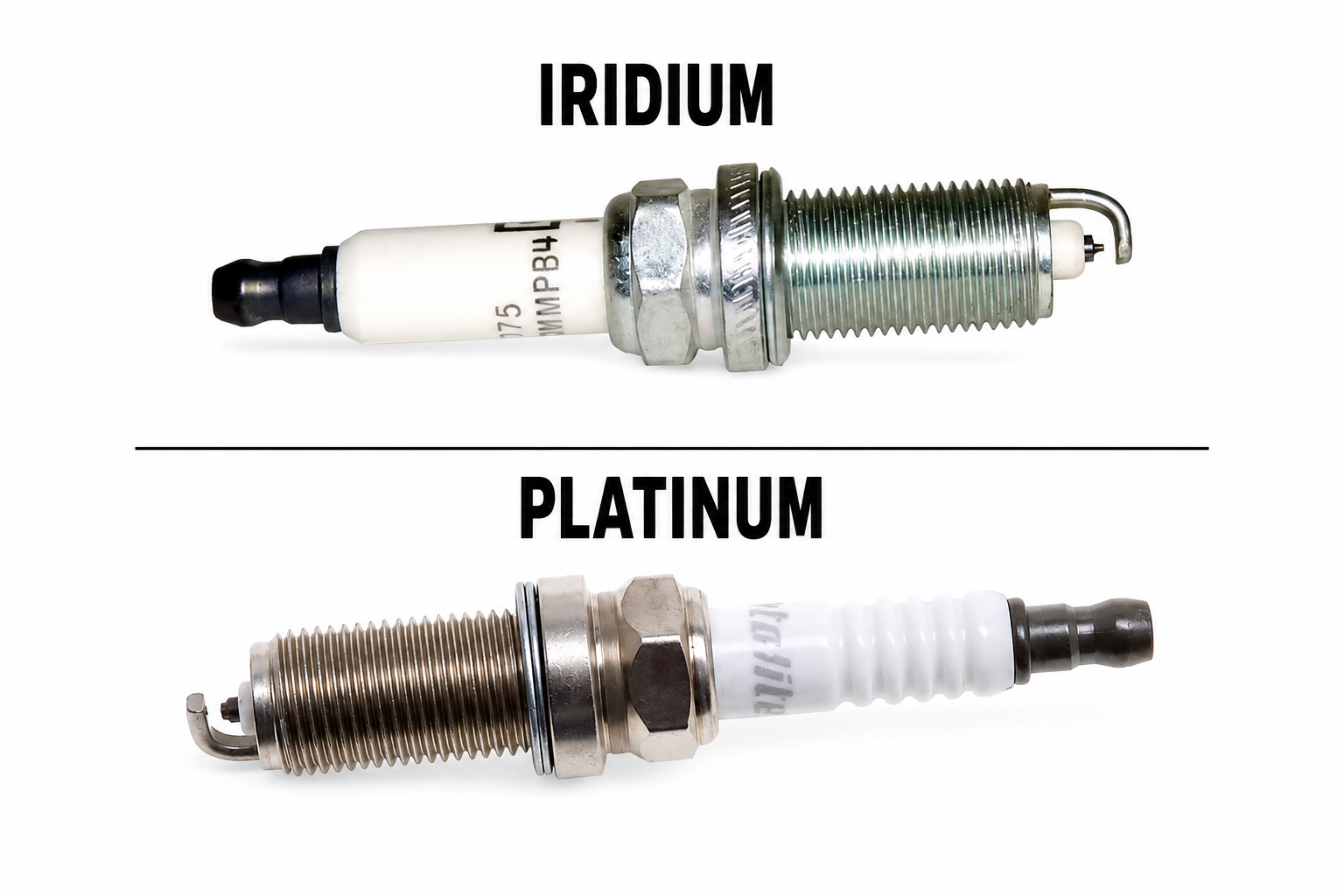

Iridium vs. Platinum Spark Plugs for the Renegade BU

Iridium spark plugs are the better choice for most Jeep Renegade BU owners. They outlast platinum plugs, hold a more precise gap over time, and deliver a more consistent spark throughout their service life. That said, platinum plugs still have a place depending on your priorities.

Here is how they compare:

• Durability: Iridium is the hardest common electrode material. It resists wear better than platinum, which is why iridium plugs last 80,000-100,000 miles versus 60,000-80,000 for platinum.
• Spark consistency: Iridium's fine-wire center electrode produces a more focused spark, improving combustion efficiency. You get slightly better throttle response and fuel economy compared to platinum.
• Price: Iridium plugs cost more upfront — typically a few dollars more per plug. But because they last longer, the per-mile cost is similar or lower.
• OEM recommendation: The Renegade BU ships from the factory with iridium plugs. Sticking with OEM spec is the safest choice for warranty and performance. If you drive your Renegade hard — frequent short trips, towing, or spirited driving — iridium is worth the investment.

If you are on a tight budget and do not mind replacing plugs more often, platinum gets the job done. Either way, avoid mixing plug types across cylinders. Use a matched set every time.

Ready to get your Renegade dialed in? Browse the full lineup of Renegade accessories and parts to find everything you need for your next project. And if you have questions about fitment or specs, the ExtremeTerrain Sales Tech team — real Jeep enthusiasts, not a call center — is here to help you get it right.
