C4 Fabrication Overland Series Front Bumper with 30-Inch Light Bar Cutout and Full-Height Bull Bar; Black (14-24 4Runner)Find parts that fit my vehicle

Item TR55862
Our Price

$2,299.00 set

Military, Medical & First Responders $114.95 Available in XT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

      • Offers Increased Clearance For Improved Approach Angles And Easier Fitment Of Larger Tires
      • 3/4" Thick D-Ring Tabs Included On Every Bumper; Fully Welded Front And Back For Strength
      • Constructed From 3/16" Laser Cut P&O Steel With Reinforced 1/4" Thick Mounting Plates
      • Bull Bar Made From .120 Wall 1 3/4" Diameter HREW Tubing For Durable Impact Resistance
      • Compatible With Most Winches In The 8,000-12,000 lb Range; Winches That Allow Control Box Relocation Recommended
      • Weight Variations: 135 lbs Without Bull Bar, 140 lbs With Mid-Height Bull Bar, 150 lbs With Full-Height Bull Bar, 155 lbs With Full-Height Bull Bar And Headlight Hoops
      • Not Compatible With MTM Front Camera Unless Camera Is Relocated Above The Bumper
      • Installation Requires Cutting Of The Original Plastic Bumper Cover
      • Includes Power Steering Cooler Kit To Replace Factory Steel Cooler Lines For Compatibility
      • TSS Equipped Models Must Select The TSS Relocation Bracket Option (Not Compatible With Mid-Height Bull Bar)
      • Designed To Fit 30” Baja Designs S8 Light Bar; Also Compatible With RIGID SR And Extreme LED 5D Light Bars
      • Designed To Accommodate Baja Squadron And Baja XL Light Pods In The Tubing Sections
      • Fits 2014-2024 Toyota 4Runner Models; TSS Relocation Bracket Required For TSS Equipped Vehicles

      Description

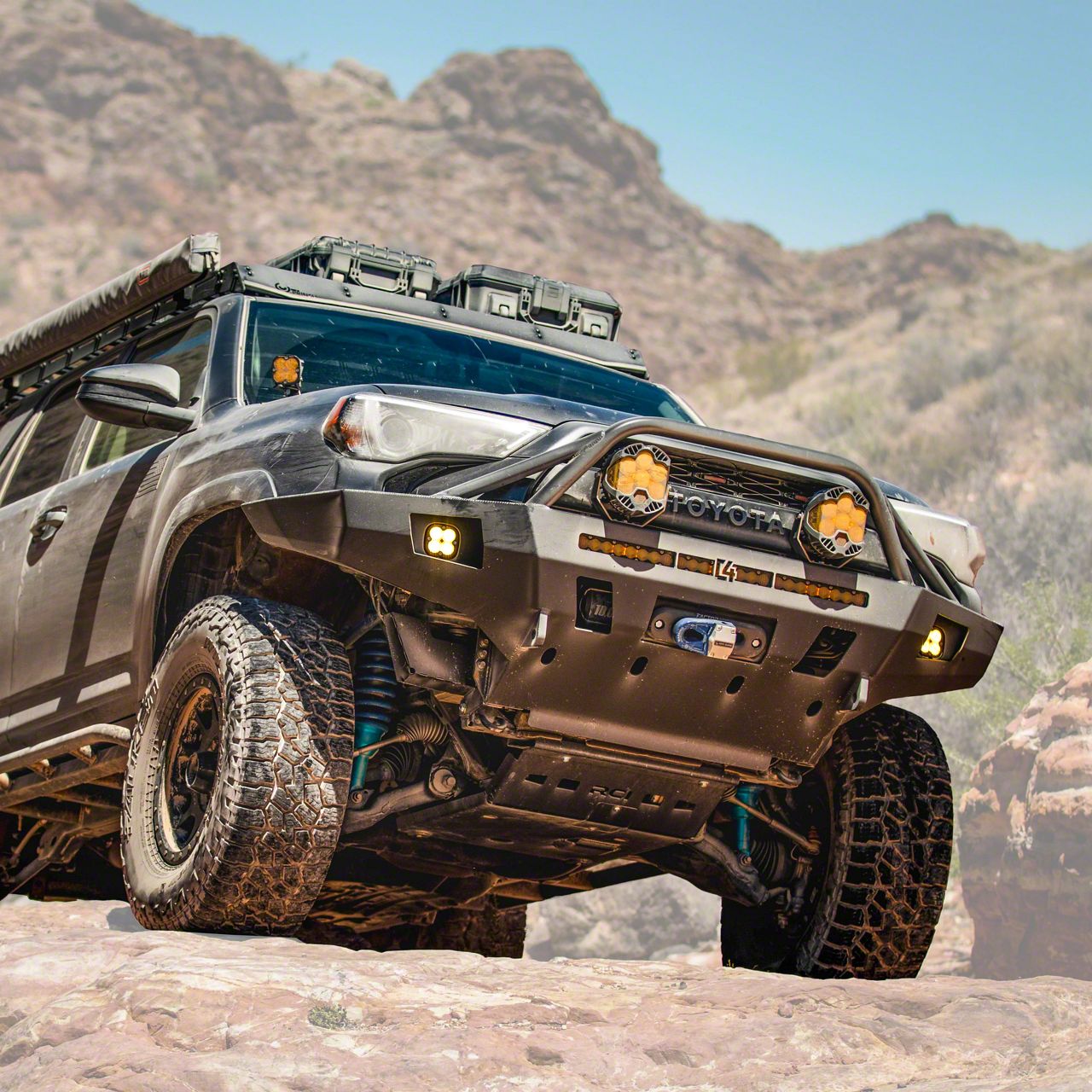

      Advanced Off-Road Protection. The C4 Fabrication Overland Series Front Bumper with 30-Inch Light Bar Cutout and Full-Height Bull Bar in Black is engineered to enhance your 4Runner’s off-road capabilities by improving approach angles and providing superior front-end protection. Its design supports larger tires and heavy-duty accessories to prepare your vehicle for demanding terrain and recovery situations.

      Durable Construction and Appearance. Made from 3/16-inch laser-cut P&O steel with reinforced 1/4-inch mounting plates for maximum strength and durability. The bull bar features .120 wall, 1 3/4-inch diameter HREW tubing, offering robust impact resistance. The bumper's raw steel finish is ideal for customized powder coating or painting to suit your style and offer corrosion protection.

      Installation. Installing this bumper requires trimming the factory plastic bumper cover and replacing the power steering cooler lines with the included cooler kit. While no major drilling is necessary, some mechanical experience and tools are recommended for proper installation.

      Application. Specifically designed to fit 2014-2024 Toyota 4Runner models. It is not compatible with the factory MTM front camera unless the camera is relocated above the bumper. Models equipped with TSS require the TSS relocation bracket, which is not compatible with the mid-height bull bar option.

      C4 Fabrication 1100-3114-30-FH-01NA

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 3 Hours

      Difficulty Level:

      Mechanical expertise or professional installation required.

      Installation Guides

        No guide available for this part yet.

      What's in the Box

      • (1) Overland Series Front Bumper with Full-Height Bull Bar
      • (1) Mounting Hardware Kit
