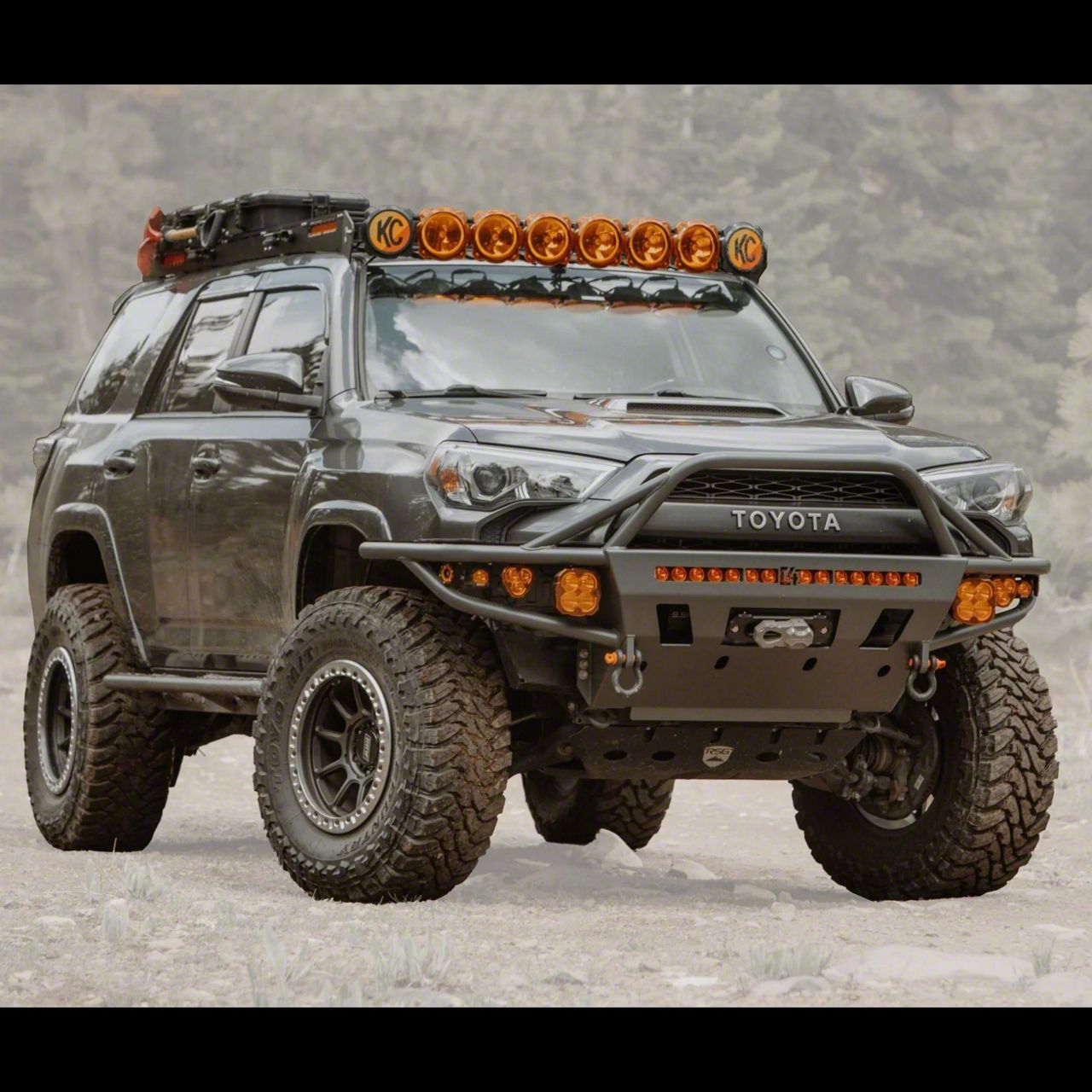

C4 Fabrication Hybrid Front Bumper with 30-Inch Light Bar Cutout and Full-Height Bull Bar; Black (14-24 4Runner)Find parts that fit my vehicle

Item TR55848
Our Price

$2,199.00 each

Military, Medical & First Responders $109.95 Available in XT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

      • Unique Combination of Plate Steel Center with 1.75" Diameter Tube Sides
      • Improved Approach Angles and Increased Clearance for Larger Tires
      • Mounting Options for Winch, LED Light Bar, and Multiple Fog Light Combinations in Tube Sections
      • Center Portion Made from 3/16" Laser-Cut Plate Steel with 1/4" Thick Mounting Plates
      • Tube Portions Constructed from .120 Wall HREW Tubing
      • 3/4" Thick D-Ring Tabs Fully Welded Front and Back for Recovery Points
      • Fits Most 8k-12k Winches; Winches with Relocatable Control Box Recommended
      • Recommended Use of Synthetic Rope Winch with Hawse-Style Fairlead
      • Ships as Bare Steel; Requires Painting or Powder Coating Unless Powder-Coated Option Selected
      • Weight: 120 lbs Without Bull Bar, 125 lbs With Mid-Height Bull Bar, 135 lbs With Full-Height Bull Bar
      • Installation Requires Cutting Factory Plastic Bumper Cover
      • Power Steering Cooler Lines Must Be Replaced Using Included Kit
      • 2020+ Models with Toyota Safety Sense (TSS) Require TSS Relocation Bracket
      • TSS Not Compatible with Mid-Height Bull Bar Version
      • Not Compatible with MTM Front Camera Without Relocation Above Bumper
      • Fits 30" Baja Designs S8 Light Bar; Compatible with Rigid SR & Extreme LED 5D
      • Designed for Baja Squadrons & Baja XL Light Pods in Tube Sections
      • Washer Tank Skid Plate Available as an Option
      • Compatible with 8k-12k Winch, Fairlead, and Winch Shackles
      • TSS Relocation Bracket Available Separately
      • Fits 2014-2024 5th Gen 4Runner Models

      Description

      Rugged Front Protection. The C4 Fabrication Hybrid Front Bumper with 30-Inch Light Bar Cutout and Full-Height Bull Bar enhances off-road capability and vehicle protection by improving approach angles and increasing clearance for larger tires. It offers versatile mounting options for winches, LED light bars, and fog lights, making it well-suited for demanding trail conditions.

      Construction and Appearance. This bumper features a strong, durable design with a 3/16" laser-cut plate steel center combined with 1.75" diameter, .120 wall HREW tubing sides. The product ships as bare steel, requiring painting or powder coating to prevent rust and allowing for a customizable rugged finish.

      Installation. Installation involves cutting the factory plastic bumper cover and replacing the power steering cooler lines with the supplied kit. It requires moderate mechanical skill. There is no additional drilling required according to specifications.

      Application. Specifically designed for 2014 to 2024 5th Gen 4Runner models, this bumper accommodates vehicles equipped with Toyota Safety Sense (TSS) when the TSS relocation bracket is installed. Note that the mid-height bull bar option is not compatible with TSS systems.

      C4 Fabrication 1100-3214-30-FH-01NA

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 1 Hour

      Difficulty Level:

      Simple installation for anyone.

      Installation Guides

        No guide available for this part yet.

      What's in the Box

      • (1) Hybrid Front Bumper Assembly
      • (1) Full-Height Bull Bar with Gussets
      • (1) Thirty-Inch LED Light Bar Cutout Section
      • (2) Welded D-Ring Recovery Tabs
      • (1) Power Steering Cooler Relocation Kit
      • Mounting Hardware
