2015-2023
Installation Time
(approx) 1 Hour
Difficulty Level:
Light to Moderate mechanical skill required.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details
Find LED Lights & Light Bars for your Renegade

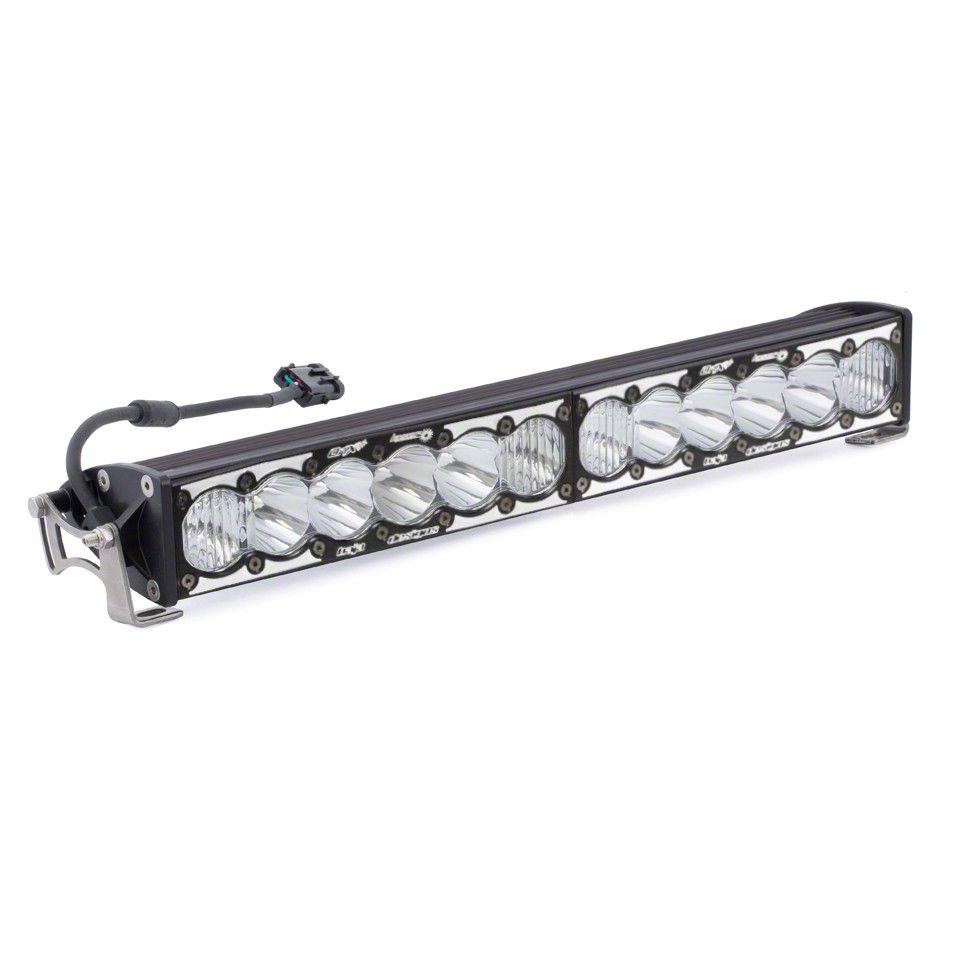

Baja Designs 50-Inch OnX6 Hybrid LED/Laser Light Bar; Hybrid Spot Beam; Clear (Universal; Some Adaptation May Be Required)
Item JR4763
Our Price
$4,222.95 each
Military, Medical & First Responders
$211.15 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Depth 4.290 Inches _x000D_
- Height 2.690 Inches _x000D_
- Length 50 Inches _x000D_
- Weight 18.650 Pounds _x000D_
- Amperage Rating 7.2 Amps _x000D_
- Average Rated Life 49,930 Hours _x000D_
- Beam Pattern Hybrid Spot _x000D_
- Bezel Material Billet Machined Aluminum _x000D_
- Brightness 3,750 Lumens _x000D_
- Description Hybrid Spot Clear Lens _x000D_
- Housing Color Black _x000D_
- Housing Material Aircraft Grade Aluminum With Mil-Spec Hard Anodize _x000D_
- Lens Color Clear _x000D_
- Lens Material Hardcoated Polycarbonate _x000D_
- Light Quantity 1 _x000D_
- Lighting Modes Beam _x000D_
- Lighting Technology 10 Laser Chips 20 LED Chips _x000D_
- Lighting Type Forward Projecting _x000D_
- Mounting Hardware Included _x000D_
- Mounting Hardware Material Stainless Steel _x000D_
- Overvoltage Protection Built-In _x000D_
- Product Type OnX6 50 Inch Hybrid LED Laser Light Bar _x000D_
- Universal Or Specific Universal _x000D_
- Wattage 99.360 Watts _x000D_
- Wiring Harness Included No _x000D_
- Patent Number 10,641,472 _x000D_
- Standards And Compliance Durability Exceeds MIL-STD810G Mil-Spec Testing _x000D_
- Standards And Compliance Impact Resistance IK10 Compliant Mechanical Impact Testing _x000D_
- Standards And Compliance Water Resistance IP69K Waterproof Up To 9 Feet Pressure Washable _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Baja Designs |
| Light Bar Width | 50 Inch and Up |
| Light Bar Shape | Straight |
Description
High Performance Lighting. The Baja Designs 50-Inch OnX6 Hybrid LED/Laser Light Bar with Hybrid Spot Beam and Clear Lens combines advanced LED and laser technology to deliver an exceptionally powerful and far-reaching beam ideal for off-road use. This light bar enhances visibility at high speeds and in challenging conditions, making it essential for serious off-road enthusiasts seeking maximum illumination.
_x000D__x000D_Construction and Appearance. Constructed from aircraft grade aluminum with a mil-spec hard anodized finish, the housing offers durability and corrosion resistance. The bezel is billet machined aluminum, while the lens is made from hardcoated polycarbonate, providing impact resistance and clarity. The unit features a sleek black housing complemented by stainless steel mounting hardware for a robust and aesthetically pleasing installation.
_x000D__x000D_Installation. Installation requires moderate skill and typically includes the necessary mounting hardware; however, wiring harnesses are sold separately. No drilling is generally needed, though vehicle-specific adaptations may be required to accommodate electrical load and mounting fitment.
_x000D__x000D_Warranty. This product includes a limited lifetime warranty to ensure longevity and reliability.
_x000D__x000D_Application. Designed for universal vehicle applications, some adaptation may be necessary depending on the vehicle’s electrical system and mounting options.
Baja Designs 455007
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Light Bar
