Find Coilover Kits for your 4Runner

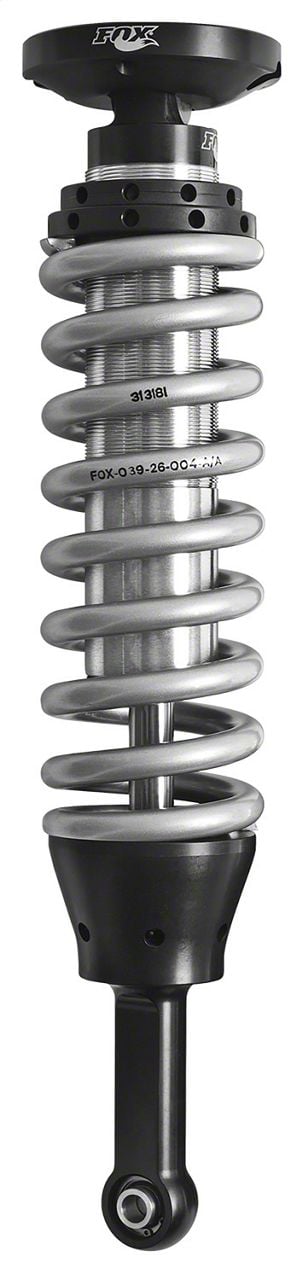

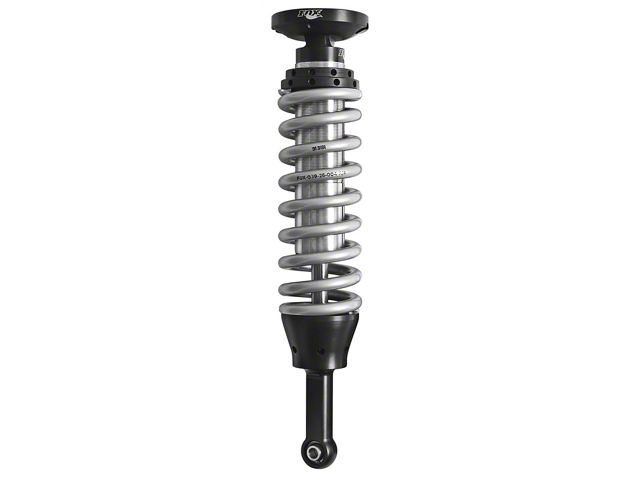

FOX Factory Race Series 2.5 Front Coil-Over Shocks for 0 to 2-Inch Lift and Aftermarket Upper Control Arms (03-24 4Runner)Find parts that fit my vehicle

Item TR20778
Product Image
5 Reviews
Our Price

$1,964.55 pair

Military, Medical & First Responders $98.23 Available in XT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features

      • Requires Upper Control Arm
      • Performance Tuned For Vehicle Specific Application
      • Durable Zinc Plated Seamless Steel Alloy Body
      • Internal IFP Mono-Tube Reservoir Design Separates Shock Oil From High-Pressure Nitrogen Gas
      • Black Anodized CNC Machined 6061-T6 Billet Aluminum Components
      • Factory Race Series
      • 4.89 Inches Travel
      • 2.5” Smooth Bore Zinc Plated Seamless Steel Body
      • Zinc-Plated And Double-Clear Coated For Long Lasting Finish
      • 7/8" Hardened NitroSteel® Steel Carbon Shafts
      • 6061-T6 Hard-Anodized High Flow Aluminum Piston
      • Application Specific Valving To Maximize Performance
      • Redundant Sealing Pack System: Main Seal, Wiper Seal, Scraper Seal
      • PTFE-Lined Heat-Treated Alloy Steel Spherical Bearings
      • Extended Length: 22.93 Inches
      • Compressed Length: 18.04 Inches
      • Top Mount: TM
      • Bottom Mount: Eyelet
      • Fits 03-24 4Runner, Requires Upper Control Arm

      Description

      High-Performance Coilover. The FOX Factory Series 4.94in. IFP Coilover Shock is engineered to enhance suspension damping and support your vehicle's weight with precision and reliability. Designed for demanding terrain, it improves control and ride quality by integrating an adjustable coil spring for preload and ride height, ensuring your vehicle is leveled right out of the box.

      Construction and Appearance. Crafted from a durable zinc-plated seamless steel alloy body, this coilover features a smooth 2.5-inch bore enhanced with a double-clear coating for corrosion resistance and longevity. Its internal IFP mono-tube reservoir efficiently separates oil from high-pressure nitrogen gas, while black anodized CNC-machined 6061-T6 billet aluminum components add both strength and refined aesthetics.

      Installation. Installation is straightforward but requires replacing the upper control arm. The process is designed to be bolt-on without any drilling, allowing for a clean fit and optimal suspension tuning.

      Application. Specifically tuned for and fits the 2003-2024 Toyota 4Runner, requiring the upper control arm for installation.

      FOX 883-02-025

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 45 Minutes

      Difficulty Level:

      Light to Moderate mechanical skill required.

      Installation Guides

      What's in the Box

      • (2) Front Coil-Over Shocks
