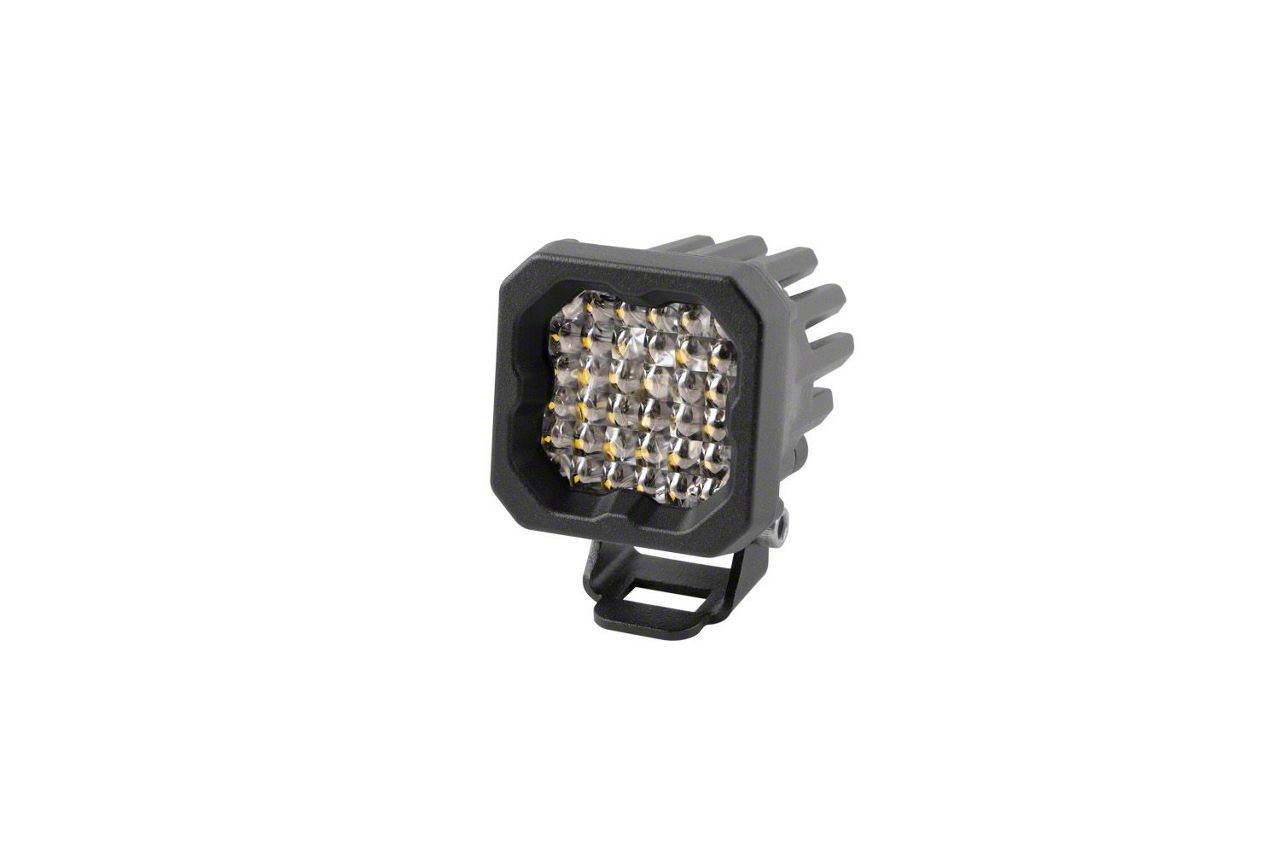

Diode Dynamics Stage Series C1R Standard LED Pod Light; White Flood (Universal; Some Adaptation May Be Required)
Item TR19660
Our Price
$159.95
Military, Medical & First Responders
$8.00 Available in XT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact, Single-LED Form Factor _x000D_
- Triple Function: High-Power White Main Beam, High-Power Red Main Beam, And Low-Power Red Accent Light _x000D_
- Pin-Fin Heatsink Design For Superior Thermal Dissipation _x000D_
- Integrated Deutsch-Style Connector _x000D_
- Designed, Torture-Tested, And Assembled In USA _x000D_
- Custom-Engineered Total Internal Reflection (TIR) Optics For Efficient Light Output And Reduced Glare _x000D_
- High-Power White Main Beam, High-Power Red Main Beam, And Low-Power Red Accent Light Operable Independently _x000D_
- Flood Beam Pattern With Uniform 50x50 Degree Spread For Even Illumination _x000D_
- Mount Anywhere With Standard, Flush-Mount, Or GoPro-Style Adapter Kits _x000D_
- Interchangeable Lenses To Change Beam Pattern Or Color _x000D_
- Comes With Deutsch-Style DT Connector And 4-Pin 6-Inch Pigtail With Bare Leads _x000D_
- Wire Color Coding: Yellow For High-Power Red, Red For White Main Beam, Blue For Low-Power Red, Black For Ground _x000D_
- Extensively Tested For Operation From -40 To 185°F, Vibration, Moisture, And Corrosion Resistance _x000D_
- Snap-On Covers Available For Protection From Dirt And Dust _x000D_
- Raw Lumens: 1450 lm _x000D_
- Color Temperature: 6000K _x000D_
- Power Consumption: 15 Watts _x000D_
- Operating Voltage Range: 9-16V _x000D_
- Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket _x000D_
- Cooling Method: Passive Pin-Fin Heatsink _x000D_
- Compliance: SAE J575 Durability _x000D_
- Intrusion Rating: IP69K Waterproof, High Pressure Resistant _x000D_
- Unit Weight Approximately 0.175 lbs; Product Weight 0.325 lbs; Shipped Weight 0.4 lbs _x000D_
- Includes One LED Pod, One Deutsch-Style Wire Pigtail, And One Mounting Bracket With Hardware _x000D_
- Lifetime Warranty Offered _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Square |
| Light Size | 3 to 3.75 Inch |
Description
Compact Versatile Lighting. The Diode Dynamics Stage Series C1R Standard LED Pod Light; White Flood delivers bright and efficient illumination with flexible mounting options. Ideal for use as reverse, brake, or running lights on cars, trucks, motorcycles, or UTVs where space is limited, the pod combines a powerful white flood beam with dual red lighting modes to meet multiple auxiliary lighting needs.
_x000D__x000D_Construction and Appearance. This LED pod features a rugged build with a polycarbonate lens and die-cast aluminum housing finished with a durable powder coat for corrosion resistance. The integrated pin-fin heatsink ensures superior thermal management for reliable operation under harsh conditions. The compact design and Deutsch-style sealed connectors contribute to its robust, professional-grade appearance and functionality.
_x000D__x000D_Installation. Installation requires basic hand tools and generally takes 30 to 60 minutes. The pod mounts using supplied hardware on standard or specialized mounting kits, allowing straightforward integration onto various vehicles without custom drilling in most cases.
_x000D__x000D_Warranty. This product comes with a limited lifetime warranty covering defects in materials and workmanship, providing long-term peace of mind.
_x000D__x000D_Application. Fits universal applications; some adaptation may be required to suit specific mounting locations or vehicle configurations.
